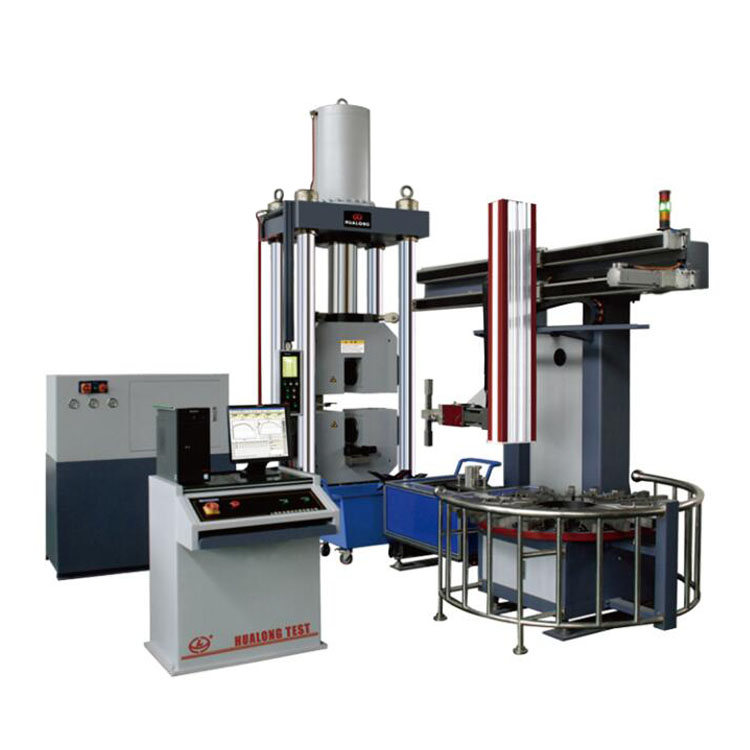

600/1000/2000kN Robot Automatic Hydraulic Tensile testing system

1. Introduction:

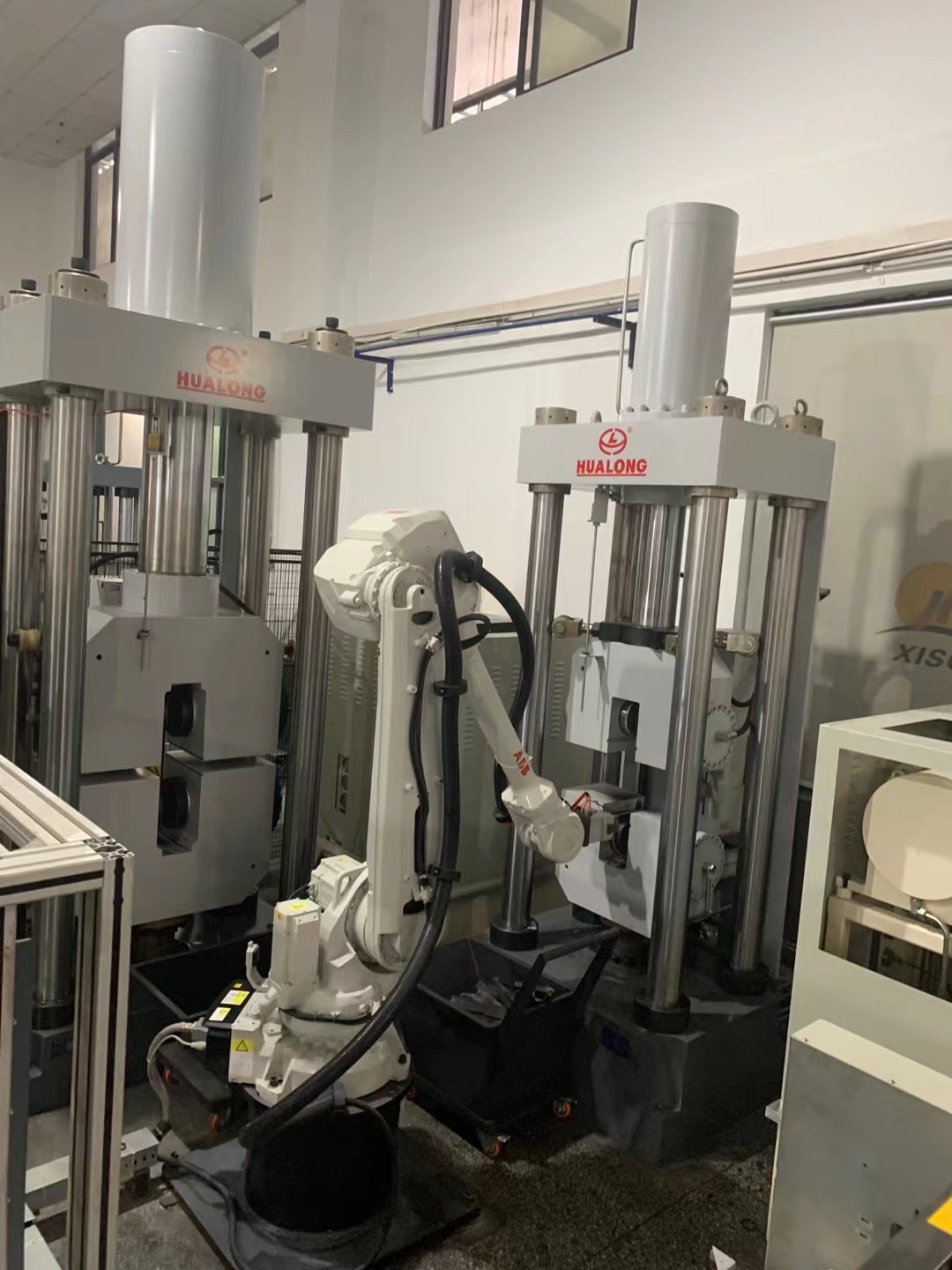

The robotic testing system can be attached to materials testing machines from 600to 3000kN.
The integrated magazine typically holds 24 or 40 specimens.
Specimens up to 5 kg in weight can be tested.
Manual tests can be performed whenever required—the specimen feeder simply swings out of the way for access.
An industrial controller with autoEdition3 automation software controls the system.

2. Specification:

Model		HLY-600-A	HLY-1000-A	HLY-2000-A	HLY-3000-A
Capacity	kN	600	1000	2000	3000
Calibration standard	-	0.5 according to ISO 7500-1 - Meets ASTM E-4
Accuracy grade	%	0.5 of reading
Testing load accuracy	%
Deformation accuracy	%
Displacement accuracy	%
Force range	FS	0.2%-100%
Force resolution	FS	Capacity/500, 000 (fully auto scaling of single measurement range)
Force accuracy	%	0.5 of reading
