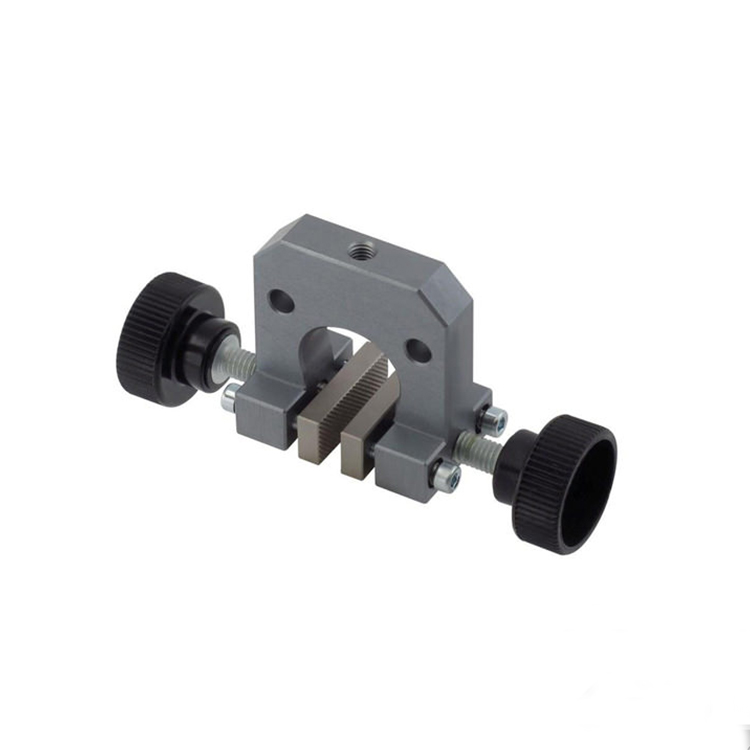

Vise Grips For Paper, Film, Wires, Thread (0.1 KN)

1. Introduction:
Used to test packaging materials, paper, polyethylene film, wire, thread, etc. with load force up to 0.1 kN.
The specimens are clamped manually by means of screws.
Clamping jaw surface options:
smooth (G);
rubber coated (P);
serrated pyramidal (Z);
wavy (B).
GOST: 1924, 30436, 1352.1 - paper and cardboard;
GOST 11262 - plastics;
GOST 14236 - polymer films.

2. Specification:

Options	G	R	W	AT
Clamping jaw surface	Smooth	Rubber	Dentate	Undulating
Max. tensile load, kN	0.1
Clamping jaw size / opening size, mm	10×25/ 0-8	10×25/ 0-6	10×25/ 0-8	25×25/ 0-6
	10×50/ 0-6	10×50/ 0-4	10×50/ 0-6	25×50/ 0-6
	10×100/ 0-6	10×100/ 0-4	10×100/ 0-6	-
