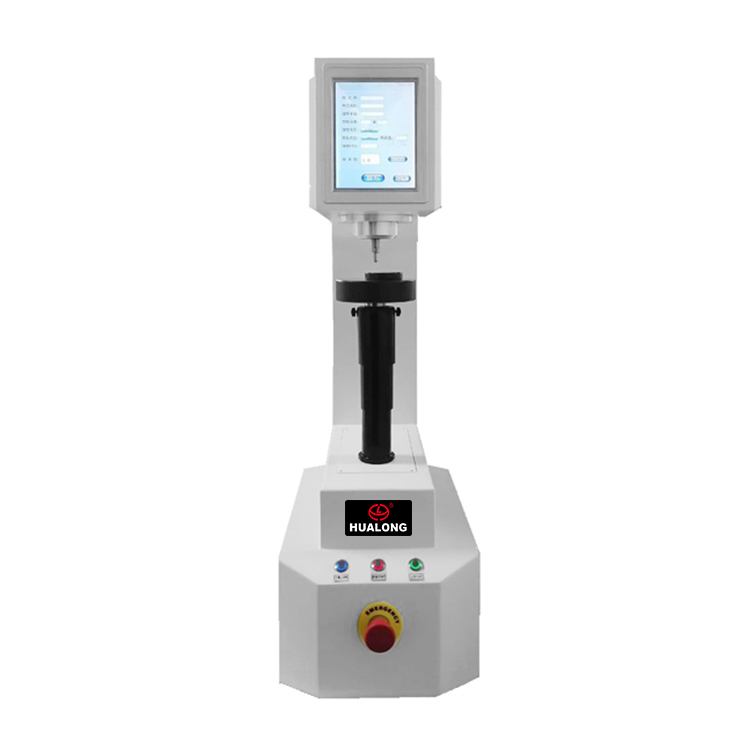

Product Introduction:
1. Electronic electric loading, high precision sensor, with a unique closed loop control system.
2. Automatic lifting of worktable without manual rotation of screw wheel.
3. Press the start button, the worktable will rise automatically, the sample will load and unload automatically after touching the head, and the hardness value will be displayed automatically.
4. Touch screen interface, easy to operate, directly select hardness scale, force value automatically change in the test parameters.
5. According to standard hardness blocks, the hardness scales are divided into high, middle and low sections for automatic correction.
6. Test force can be corrected automatically by standard dynamometer.
7. Automatic application of initial test force and main test force.
8. Powerful data processing function, including: HR, HB, HV and other hardness system conversion, set qualified range, automatic alarm over the limit, can input tester, sample name and other information.
9. More samples and test information, measurement data saved in USB disk in EXCEL format, convenient editing and processing.
Specification:
Model |
HLR-150/45DX-Z |
Rockwell initial test force |
10kgf(98.07N) |
Superficial Rockwell initial test force |
3.0kgf(29.4N) |
Rockwell total test force |
60kgf(588N) 100kgf(980N) 150kgf(1471N) |
Superficial Rockwell total test force |
15kgf(147.1N) 30kgf(249.2N) 45kgf(441.3N) |
Rockwell hardness scale |
HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK、 HRL、HRM、HRR、HRP、HRS、HRV |
Superficial Rockwell hardness scale |
15N、15T、15W、15X、15Y、30N、30T、30W、30X、30Y、45N、45T 、45W、45X、45Y |
Rockwell measurement range |
HRA:20-88、HRB:20-100 、HRC:20-70 、HRD:40-77 、HRE:70-100 、HRF:60-100 、HRG:30-94、HRH:80-100、HRK:40-100、HRL:100-120 HRM:85-115、 HRR:114-125 |
Rockwell test range |
HR15N:70-94 HR30N:42-86 HR45N:20-77 HR15T:67-93 HR30T:29-82 HR45T:1-72 |
Standard |
BSEN 6508, ISO 6508, ASTM E18, GB/T230 |
Dwell time |
0-99s |
Hardness resolution |
0.1HR |
Error of test force |
<0.5% |
Data output |
LCD display |
Data is stored |
The measured values are saved on USB flash drive in Excel format |
Conversion scale |
Rockwell, Brinell and Vickers |
Maximum allowable specimen height |
300mm |
Distance from indenterto wall |
200mm |
size |
560×280×850mm |
Weight |
80kg |
Power supply |
AC220+5%,50~60Hz |
