Model |

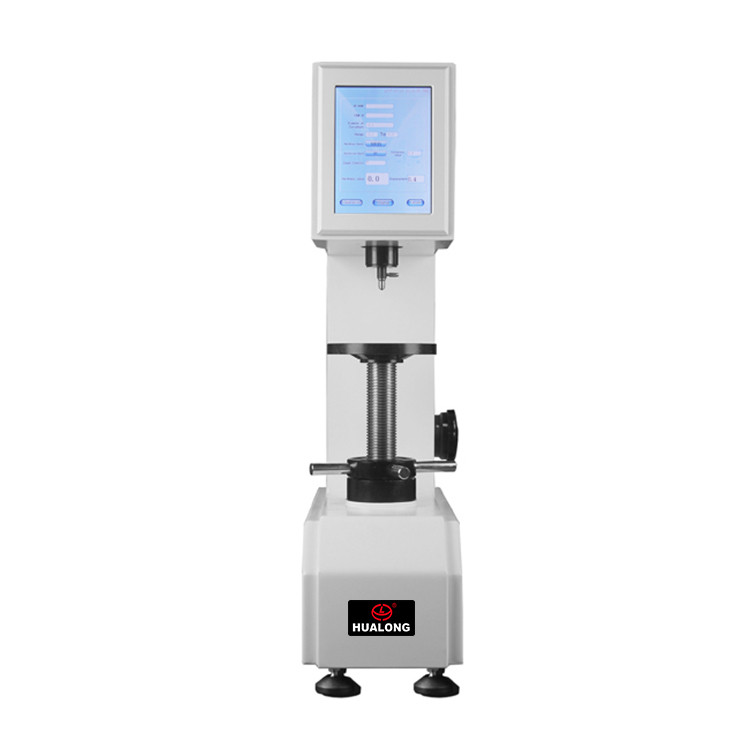

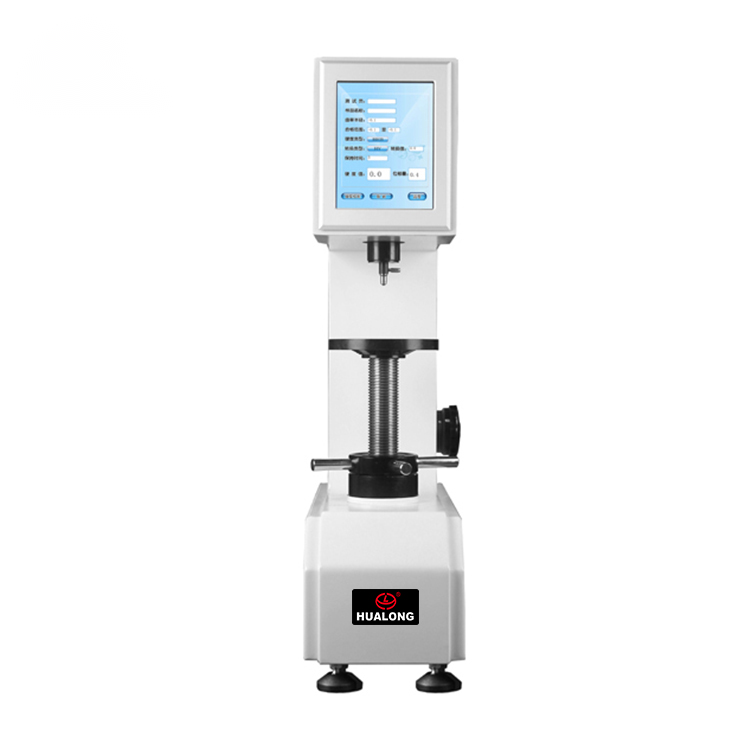

HLR-150DT |
Initial load of Rockwell |
10kgf(98.07N) |
Total load of Rockwell |
60kgf(588N) 100kgf(980N) 150kgf(1471N) |
Rockwell Scale |
HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK、 HRL、HRM、HRR、HRP、HRS、HRV |
Hardness testing range |
HRA:20-88、HRB:20-100 、HRC:20-70 、HRD:40-77 、HRE:70-100 、HRF:60-100 、HRG:30-94、HRH:80-100、HRK:40-100、HRL:100-120 HRM:85-115、 HRR:114-125 |
Dwell time |
0-99s |
Resolution of hardness value |
0.1HR |
Load value error |
<0.5% |
Hardness reading |
LCD display |
Screen size |
8 inch |
Data Storage |
Can store 60 kinds of test results, built-in printer, RS-232 interface, optional USB flash disk automatically stored |
Conversion Scale |
Superficial Rockwell, Brinell, Vickers |
Carried Standard |
BSEN 6508, ISO 6508, ASTM E18, GB/T230 |
Max Height of Specimen |
200mm |
Distance from the center to the outer wall of the indenter |
160mm |
Overall Dimensions |
560×200×800mm |
Weight |
70kg |
Power supply |
AC220+5%,50~60Hz |
