Test features:
-
The test force are applied via a closed-loop control unit with a load cell, a DC motor and an electronic measurement and control unit replace traditional dead weights. The result is highly accurate measurements at all test loads up to 0.5%.
-
Simple plug - and - play tech allows for much more quick and easy installation than traditional weights type machine.
-
Manual handle wheel pre-load. Automatic main-load and testing cycle.
-

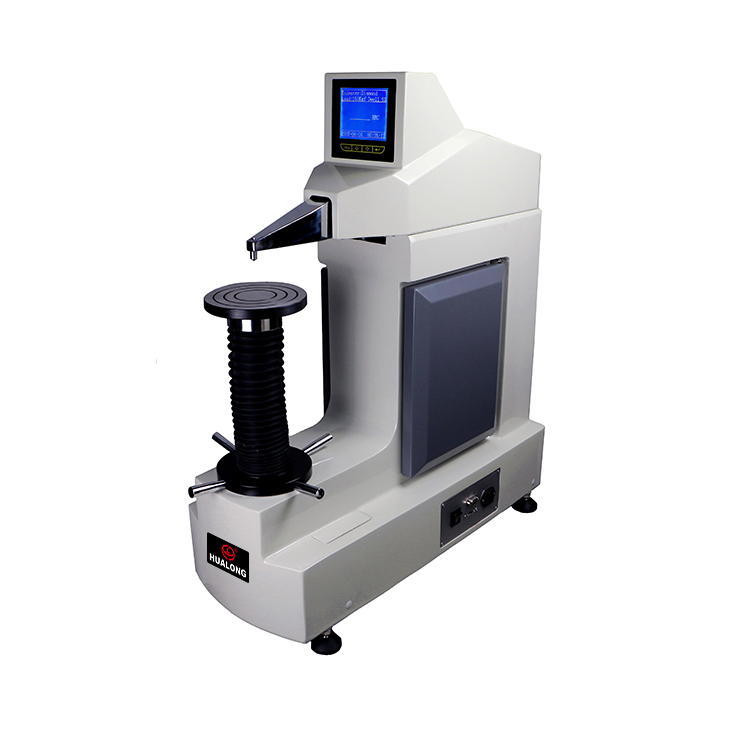

Extended dolphin nose allows verticaltest height of 300mm and throat depth of 220mm.
-
Integrated casting body with more wide basement leads to permanent stability.
-
RS232 and USB port to PC.
Functions:
-
Twin tester--Regular Rockwell & Rockwell Superficial hardness for metal and plastic material.
-
Horizontal dolphin nose Indenter is suitable also for internal and external testing.
-
Testing on surface difficult to reach. Testing internal surface of rings and tubes.
-
Provided with many deatures such as high measuring precision, wide measuring range with 30Rockerll scales.
-
The tester is suitable for testing of carbon steel, alloy steel, cast iron, non ferous metal.
-
Automatic testing cycle: Lifting of part, pre-loading, loading dwell, unloading, results will be finished automatically.
-
Measuring results digitally displaying and can be printed, or transmitted to external computer automatically by USB port.
-
Test HR value can be converted to the value of HB, HV, HK, and σb value.
-
The tester meets all the following standard such as ISO6508-2, ASTM E18.
Hardness Tester Parameters:
-
Preload:29.4N(3kgf), 98.1N (10kgf)
-
Total test force:147.1N(15kgf), 294.3N(30kgf), 441.3N(45kgf), 588.4N (60kgf), 980.7N (100kgf), 1471N (150kgf)
-
Scales:HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y HRA,HRB,HRC,HRD,HRE,HRF, HRG,HRH,HRK,HRL,HRM,HRP, HRR,HRS,HRV
-
Load dwell duration: 2~50s, can be set and stored
-
Resolution :0.1HR
-
Display:High definition backlight LCD
-
Operation:Menu selectable, Membrane keypad
-
Upper/lower limits setting & alarming
-
Data statistics: Avg., Max., Min., S, R
-
Curved surface auto correction
-
Memory: Max 400 items of test results stored automatically
-
Testing Capacity:300mm (vertical), 220mm (horizontal)
-
Dimensions: 690mm×280mm×860mm
-
Power supply:AC, 220V/110V, 50~60Hz, 4A
-
Net weight:80 kg
-
Gross weight:115kg
