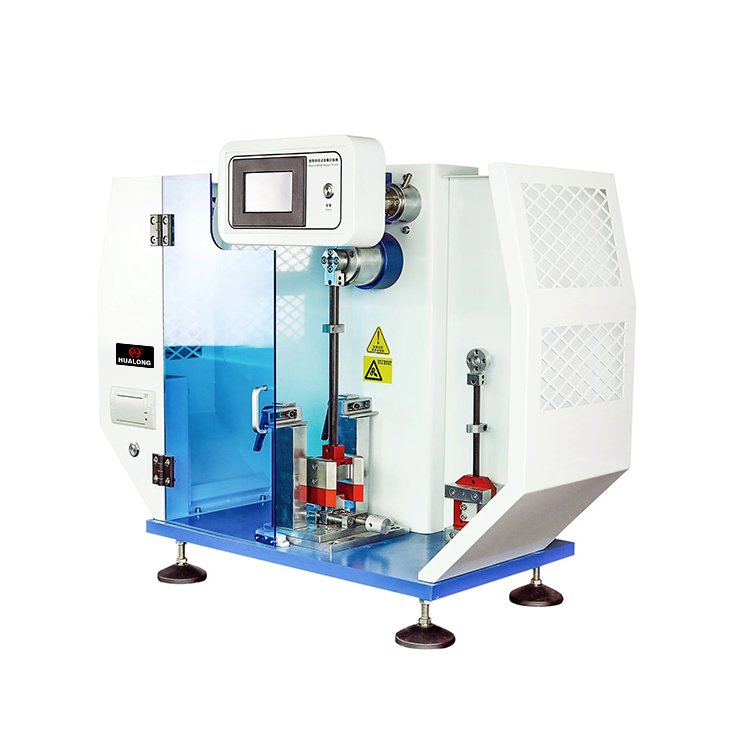

HL-50XJT Touch Screen Plastic Charpy & Izod Impact Testing Machine

1. Application
HL-50XJT series impact testing machine is mainly used for the determination of the impact toughness of non-metallic materials such as hard plastics (including plates, pipes, and plastic profiles), reinforced nylon, glass fiber reinforced plastic, ceramics, cast stone, and electrical insulating materials. This testing machine is an ideal testing equipment for the chemical industry, scientific research institutions, quality inspection departments of colleges and universities, etc.

2. Specification

Model	HL-50XJT
Item	Charpy Impact	Izod Impact
Pendulum energy	7.5,15,25,50J	11,22J
Pendulum angle	150°
Blade angle	30°
Blade front angle	5°
Blade back angle	10°
Impact speed	2.9m/s	3.5m/s
Impact center distance	221mm	335mm
Blade filleted radius	R=2mm±0.5mm	R=0.8mm±0.2mm
Energy loss	0.5J ≤4.0J
	1.0J ≤2.0J	2.75J ≤0.06J
	2.0J ≤1.0J	5.5J ≤0.12J
	≥4.0J≤0.5J
Pendulum torque	Pd1J=0.53590Nm Pd2J=1.07180Nm Pd4J=2.14359Nm	Pd2.75J=1.47372Nm
Pendulum torque	Pd5J=2.67949Nm	Pd5.5J=2.94744Nm
Print out	Capacity. Angle, energy, etc.
Print	with the printer
Power supply	AC220V±10% 50HZ
