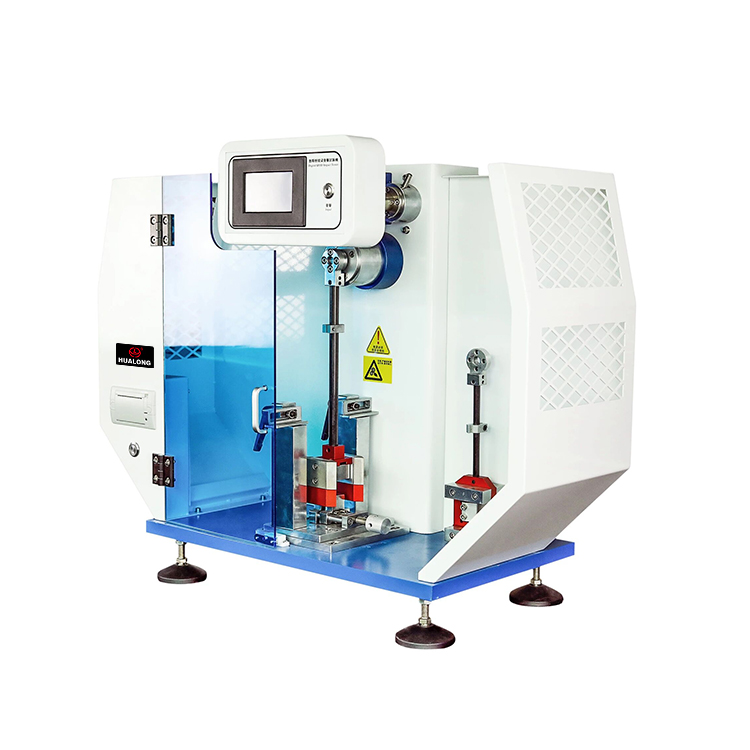

HL-5.5XJT Touch Screen Plastic Charpy & Izod Impact Testing Machine

1.Application
HL-5.5XJT series impact testing machine is mainly used for the determination of the impact toughness of non-metallic materials such as hard plastics (including plates, pipes, and plastic profiles), reinforced nylon, glass fiber reinforced plastic, ceramics, cast stone, and electrical insulating materials. This testing machine is an ideal testing equipment for the chemical industry, scientific research institutions, quality inspection departments of colleges and universities, etc.

2. Specification

Impact energy	Izod beam	2.75J、5.5J
	Charpy beam	1J、2J、4J、5J
Pre-elevation angle	150°
Impact velocity	3.5m/s、2.9m/s、3.8m/s or customized
Pendulum center distance	335mm,230mm
Charpy beam support distance	40mm、60mm、70mm、95mm
Impact edge radius of cantilever beam	R=0.8±0.2mm
Charpy beam impact edge radius	R=2mm±0.5mm
Distance from impact blade to upper surface of jaw	22mm±0.05mm
Impact angle	30°±1°
power supply	AC220V±10% 50HZ
