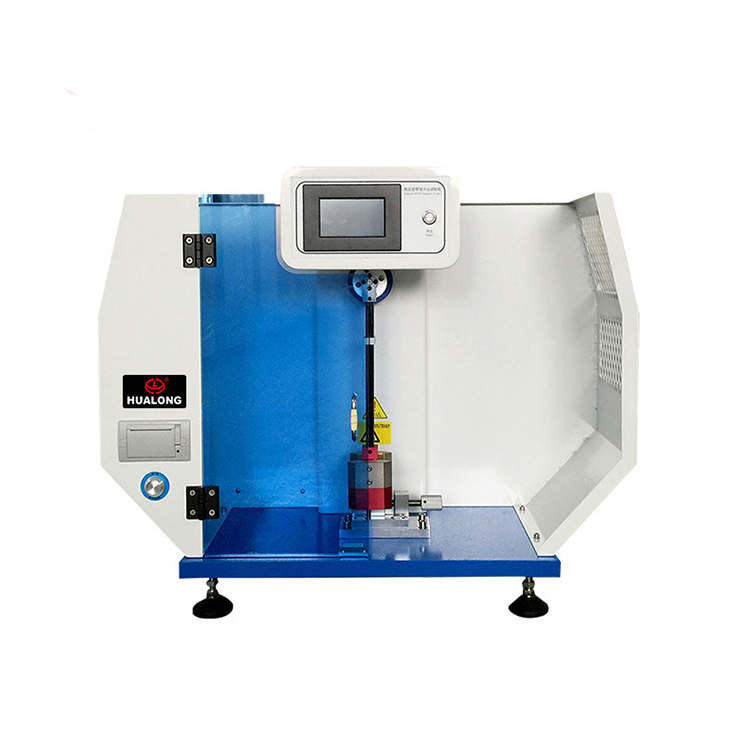

HL-5.5/22XJUD Touch Screen Plastic Izod Impact Testing Machine

1. Product introduction:
The cantilever beam impact tester is used to determine the impact toughness of non-metallic materials such as plastic, reinforced nylon, glass fiber reinforced plastic, ceramics, cast stone, plastic electrical appliances, and insulating materials. Pendulum impact testing machine is a common equipment for quality inspection by scientific research units, colleges and universities, and non-metallic material manufacturers. The machine is a simple structure, easy to operate, and high precision testing instrument. The digital display impact testing machine adopts high precision. Encoder technology has the characteristics of high accuracy, good stability and large measuring range. The digital measurement shows the impact strength and average value, the energy loss is automatically corrected, and the test report is printed.

2. Specification:

- Display mode: color touch screen (Chinese and English)
- Angle sensor brand and accuracy: original imported Omron encoder, accuracy to 0.01°
- Energy display accuracy: 0.01J
- Impact speed: 3.5m/s;
- Pendulum lifting angle: 150°
- Distance from the center of the pendulum to the impact blade: 335mm
- Distance from impact blade to upper plane of jaw: 22mm
- Including angle of blade: 75±l°
- Blade radius: R=0.8±0.2mm
- Machine weight: 85kg
- Power supply voltage: AC220V±10% 50HZ
