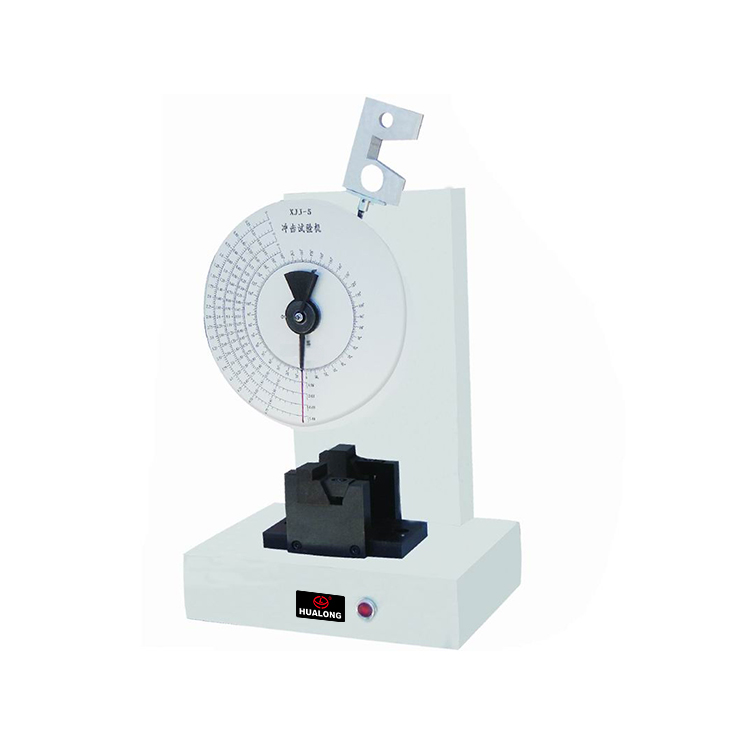

HL-5/50XJJ Non-metal Material Charpy Impact Testing Machine
1. Application
Charpy Impact Testing Machine is pointer dial, electric hammer block release.Used for hard plastic, fiber reinforced composite materials, glass fiber reinforced plastic, ceramic, asbestos etc. nonmetal materials for impact test.
2. Specification
Charpy Impact Testing Machine is pointer dial, electric hammer block release.Used for hard plastic, fiber reinforced composite materials, glass fiber reinforced plastic, ceramic, asbestos etc. nonmetal materials for impact test.
2. Specification
|
Model |
HL-5/50XJJ |
|
Impact Energy |
5J/ 50J |
|
Pendulum Torque |
PL=2.5777Nm |
|
Impact Speed |
2.9 m/s |
|
Pendulum Angle |
160° |
|
Span Of Support(mm) |
95 mm |
|
Round Angle Of The Jaw |
R=1±0.1 mm |
|
Round Angle Of Impact Cutting Edge |
R=2±0.5 mm |
|
Impact Blade Angle |
30±l° |
|
The Distance Between Pendulum |
221 mm |
