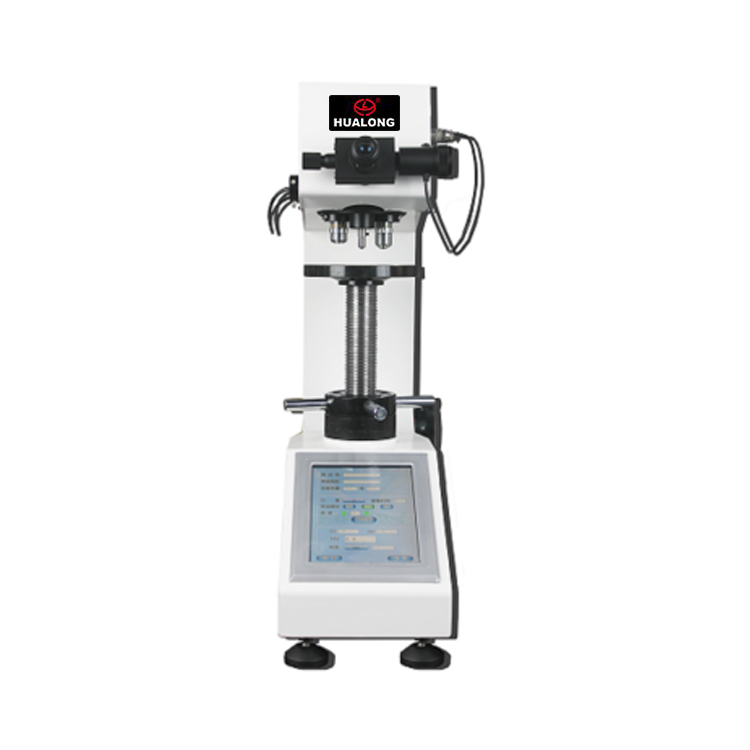

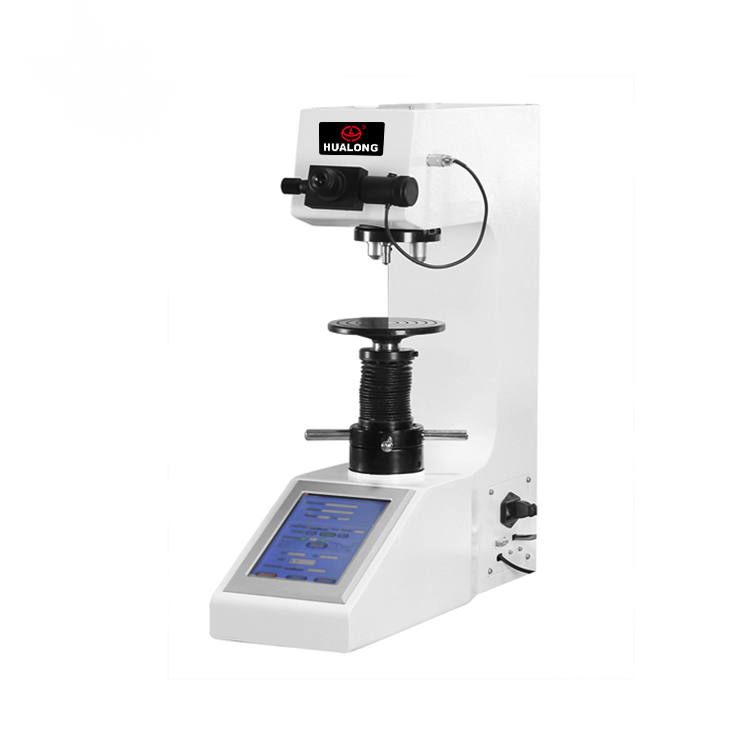

HLV-10MDX Advanced Automatic Turret Digital Vickers Hardness Tester

1. Product introduction

HLV-10MDX turret digital display touch screen Vickers hardness tester is a:

-11 gear test force, force value optional

-Automatic turret

-Automatic value display of hardness value

-8-inch touch screen interface, easy to operate

2. Main features

1) 11 gear test force, meeting all test forces in this range in the standard

2) 8-inch touch screen interface, easy for users to operate;

3) Two different magnification objective lenses 10x and 20x (5x and 40x optional) are installed on the rotary tower at the same time, which can scan the sample contour in a wide range with low magnification as required.

4) 10x, 20x (5x, 40x) two different magnification objective lenses can be measured, 40x (optional);

5) During the test, the indenter and the objective lens automatically switch to each other, and the test point is automatically positioned accurately;

6) It can be calibrated according to the standard hardness block or length scale, and the hardness can be corrected automatically according to the high, medium and low hardness values, so the hardness value is more accurate.

7) Various hardness values are converted to each other;

8) All test parameters and test results are stored in USB flash disk in Excel format for data processing and inspection report output;

9) Test setting parameters are protected by password;

10) The light source adopts LED lamp, which has long service life and does not need to replace the bulb;

11) Built in camera, clearer image (option);

12) Chinese, English and other languages to choose from;

13) Equipped with RS-232 interface, it can be connected with computer (option)

3. Technical parameters

Model	HLV-10MDX
Test force	0.3Kgf (2.94N), 0.5Kgf (4.90N), 1.0 Kgf(9.8N), 2.0Kgf(19.6N), 2.5Kgf(24.5N), 3.0Kgf(29.4N), 5.0Kgf(49.0N), 10.0Kgf(98.0N)
Meet standard	GB/T4340, ASTM E92
Measurement resolution	0.01 μm
Data display output	LCD display readout, save to U disk in Excel format directly
Conversion scale	HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Hardness test range	8~2900HV
Test force application method	Automatic (loading, holding, unloading)
Test microscope magnification	100X(test), 200X(test)
Test force dwell time	1~99s
Maximum allowable specimen height	180mm
Distance from indenter to wall	160mm
size	580190700mm
Weight	About 55 kg
Power supply	AC220V ± 5%, 50 to 60 hz

4. Operation interface

1. Standard accessories

Item	Quantity	Item	Quantity
Micrometer eyepiece (DHV-1000-10X)	1	Large, medium and V-shaped test tables	Each 1
Vickers hardness block	2	Spare fuse (2A)	2
Power cord	1	Dust cover	1
U disk	1	Touch pen	1
Product certificate, warranty card	1	Instructions	1
Hexagon socket wrench (2.5mm)	1	Nylon universal sole	4
