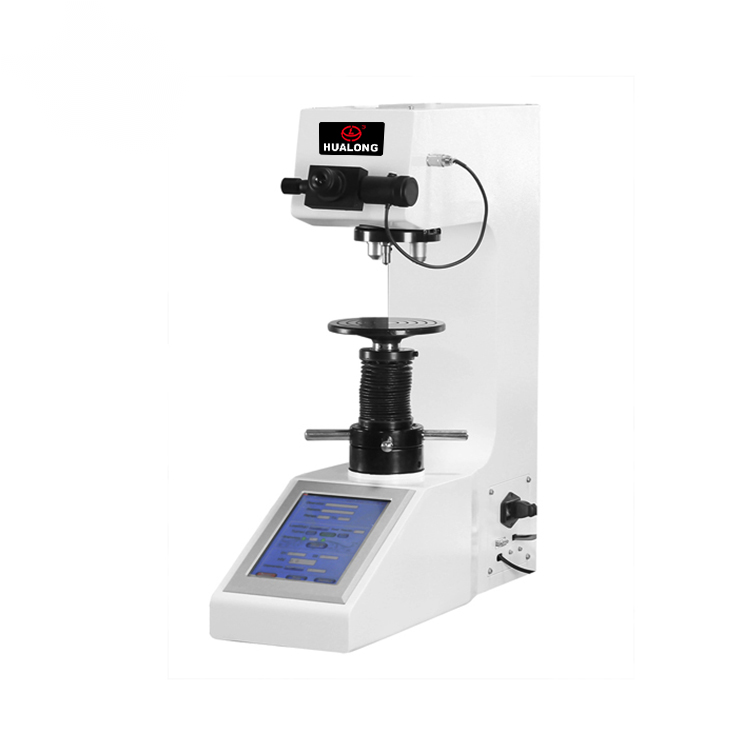

HLV-10MDX-Q/THLV-30MDX-Q/ HLV-50MDX-Q/HLV-100MDX-Q Three objective lens automatic turret digital Vickers hardness tester

1. Product introduction

The series of three objective automatic turret digital touch screen Vickers hardness tester is a:

1.Any three of the 5X, 10X, 20X, and 40X objective lenses are installed simultaneously

2.Maximum 11 levels of test force, force value isoptional

3.Automatic turret

4.Hardness value automatic display

5.8 inch touch screen interface, easy to operate

2.Main features

1) At the same time, any three objective lenses in 5X, 10X, 20X and 40X are installed to ensure that the indentation of different sizes can meet the standard size in the field of view. At the same time, a wide range of sample profile scanning can be carried out with low magnification.

2) All the three objective lenses can realize the measurement function

3) Level 11 test force, to meet all the test forces in the range of the standard

4) 8 inch touch screen interface, easy to operate;

5) During the test, the pressure head and the objective lens automatically switch to each other, and the automatic positioning of the test point is accurate.

6) It can be calibrated according to the standard hardness block or length scale, and the hardness can be modified automatically according to the high, middle and low hardness values, and the hardness values are more accurate.

7) Various hardness values are converted to each other;

8) All test parameters and results are stored on USB flash disk in Excel format, which is convenient for data processing and test report output.

9) Test setting parameters are protected by password;

10) Light source using LED lamp, long life, no need to replace the bulb;

11) Built-in camera, clearer image (optional);

12) Chinese, English and other languages for choice;

13) With RS-232 interface, on-line with computer (optional)

3. Technical parameters

Model	HLV-10MDX-Q	HLV-30MDX-Q	HLV-50MDX-Q	HLV-100MDX-Q
Test force	0.3Kgf (2.94N), 0.5Kgf (4.90N), 1.0 Kgf(9.8N), 2.0Kgf(19.6N), 2.5Kgf(24.5N), 3.0Kgf(29.4N), 5.0Kgf(49.0N), 10.0Kgf(98.0N)	0.5KGF (4.90N), 1.0KGF (9.8N), 2.0KGF (19.6N), 2.5KGF (24.5N), 3.0KGF (29.4N), 5.0KGF (49.0N), 10.0KGF (98.0N), 15.0KGF (147N), 20.0KGF (196N), 30.0KGF (294N)(optional 0.3KGF)	1.0 Kgf(9.8N), 2.0Kgf(19.6N), 2.5Kgf(24.5N), 3.0Kgf(29.4N), 5.0Kgf(49.0N), 10.0Kgf(98.0N), 15.0Kgf(147N), 20.0Kgf(196N), 30.0 Kgf(294N), 40.0Kgf(392N), 50.0Kgf(490N) (optional 0.5kgf)	2.0kgf (19.6N), 3.0kgf (29.4N), 5.0kgf (49.0N), 10.0kgf (98.0N), 20.0kgf (196N), 30.0kgf (294N), 50.0kgf (490N), 60Kgf(588N), 80Kgf(784N), 100Kgf(980N) (Force value can be customized)
Meet standard	GBT4340.1, GBT4340.2, ASTM_E92
Conversion of hardness value	According to GB1172-99 and ASTM standards
Accuracy	JJG260-91, JIS B 7725, JIS B 7734, GB/ T3430.2-99 ASTM E-384, ISO 6507-2, ISO4546
Loading way	Automatically load/hold/unload
Automatic turret system	Automatic, manual Object - indenter - objective switch rotation automatically The automatic turret provides a quick and simple sequence of operations without the need to manually rotate the tower to achieve automatic switching of the objective and indenter. The center of the objective lens and the center of the indenter have high precision and the error is less than 1 micron, which ensures the accurate pressure positioning of the sample and the center position of the objective lens can be adjusted.
Minimum test unit	0.01 μm
Data output	LCD display readout, save to U disk in Excel format directly
Conversion scale	HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Hardness test range	8~2900HV
Test force application method	Automatic (loading, holding, unloading)
Measurement of the eyepiece	Electronic 10x (15X optional)
objective	Any three objective lenses in 5X, 10X, 20X, or 40X
Test microscope magnification	50X, 100X, 200X, 400X
Test force dwell time	1~99s
Maximum allowable specimen height	180mm
Distance from indenter to wall	160mm
Size	580190700mm
Weight	About 55 kg
Power supply	AC220V ± 5%, 50 to 60 hz

4. Operation interface

5. Standard accessories

Item	Quantity	Item	Quantity
DHV-1000-10X micrometer eyepiece	1	Large, medium and V-shaped test bench	Each 1
Vickers hardness block	2	Spare fuse (2A)	2
Power cable	1	Dust cover	1
U disk	1	Touch pen	1
Hexagon socket wrench (2.5mm)	1	Adjust the foot level	4
Product certificate, warranty card	1	Instructions	1
