Home>>PRODUCTS >> Testing Machine >> Special Testing Machine >> Optical Cable Testing MachineApplication:

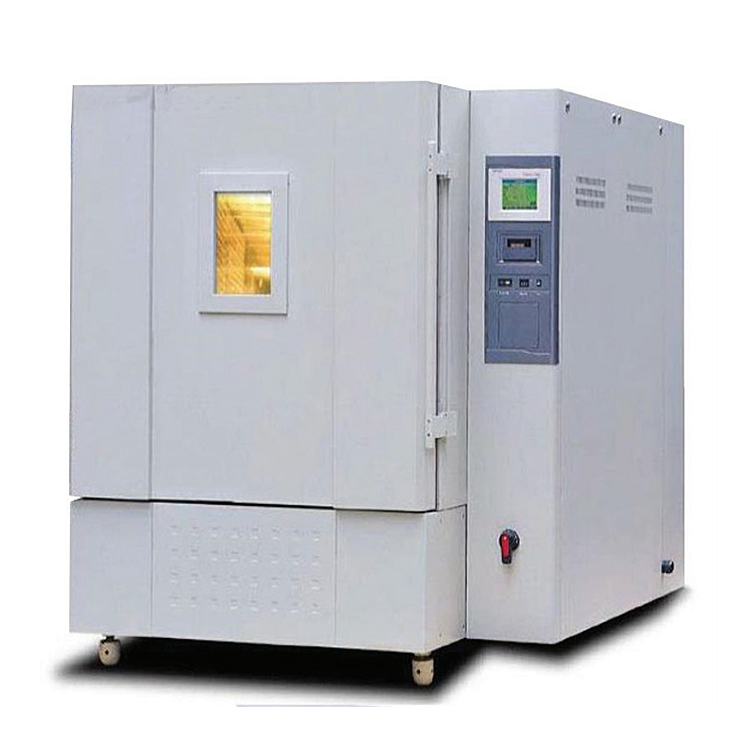

The Optical Fiber Cable Temperature Cycling Chamber is designed to apply temperature cycling on optical fiber cables in order to determine the stability behavior of the attenuation of cables submitted to temperature changes. It features large test chamber, precise temperature control as well as low temperature fluctuations.
Standard:
IEC-60794-1-2-F1
Specification:
Technical Parameters |
||||
Model |
HL-GTC Series |
|||
HL-GTC-40100 |
HL-GTC-70100 |
HL-GTC-40150 |
HL-GTC-70150 |
|
Temp. range |
-40°C ~ 100°C |
-70°C ~ 100°C |
-40°C ~ 150°C |
-70°C ~ 150°C |
Temperature control accuracy |
± 0.5°C |
± 0.1°C |
||
Temperature measuring accuracy |
± 0.5°C |
|||
Temperature fluctuation |
± 0.5°C |
± 2°C |
||
Temperature uniformity |
≤2.0 |
|||
Heating up speed (empty) |
≥3.0 /min |
|||
Cooling down speed (empty) |
≥0.7-1 /min |
|||
Interior dimension(W×D×H) Exterior dimension(W×D×H) |
2000 × 2500 × 2000 mm 2300 x 4500 x 2600 mm |
1000 × 1000 ×1000 mm 1600 x1600 x 1600 mm |
||
Open door (WxDxH) one of a pair |
1000 mm x 2000mm |
1000 mm x 1000 mm |
||
Chamber weight |
Approx. 2000 kg |
Approx. 1000 kg |
||
Interior material |
Stainless steel plate(SUS304) |
|||
Exterior material |
Stainless steel plate(SUS304) |
|||
Insulation |
Rigid foam |
|||
Refrigeration system |
Hermetic compressor, single stage refrigeration system. |
|||
Display |
LCD |
