Description:

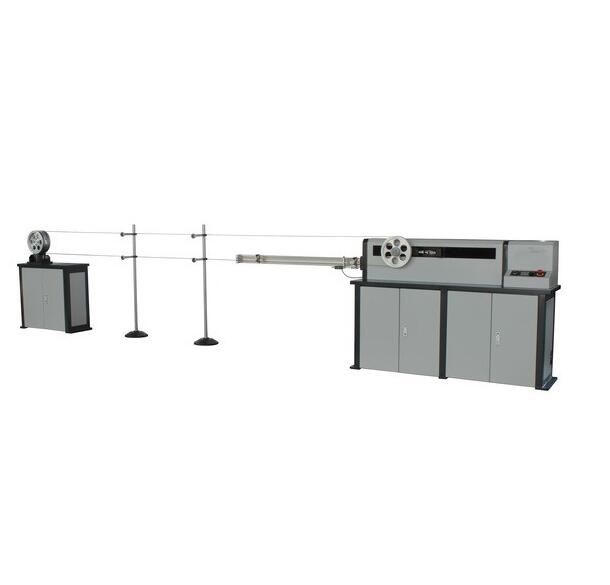

Optical Fiber Cable Tensile Tester (Indoor Cable) are designed specifically for indoor (Bow Type) optical fiber cables to test tensile strength under tension. The tester compliments with an extensometer to measure the cable.
Test cable sample is wound over the approximate sized sheave, pulled at a specific rate until a pre-determined tension is applied. The test cable is further laid to rest under tension as per detail specifications, and then the attenuation and fiber length are measured.
Technical parameter:
Model : GLY-3 (Bow)
Load capacity: 3KN (other loads are available upon request)
Crosshead travel: 1000 mm
Loading speed: 0.2-500mm/min
