Application:

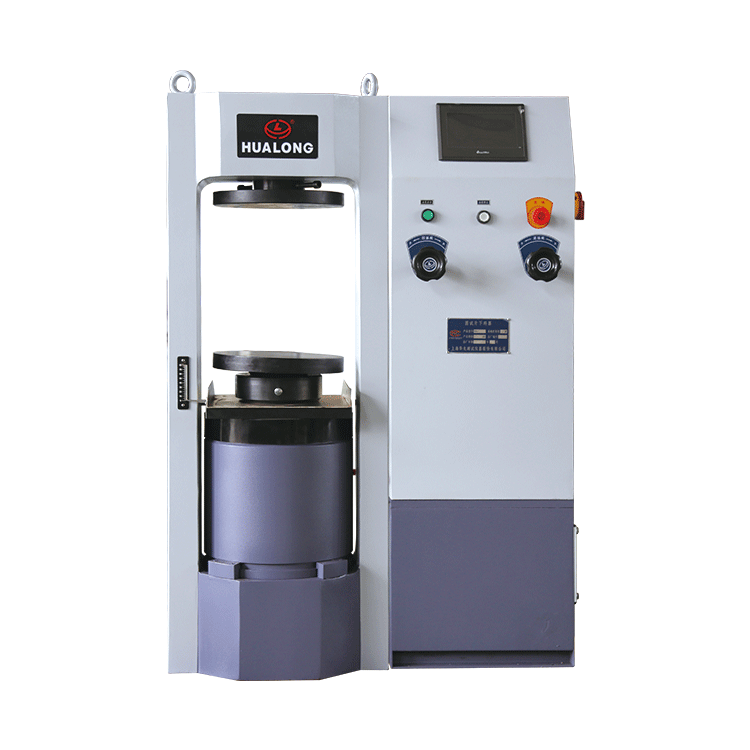

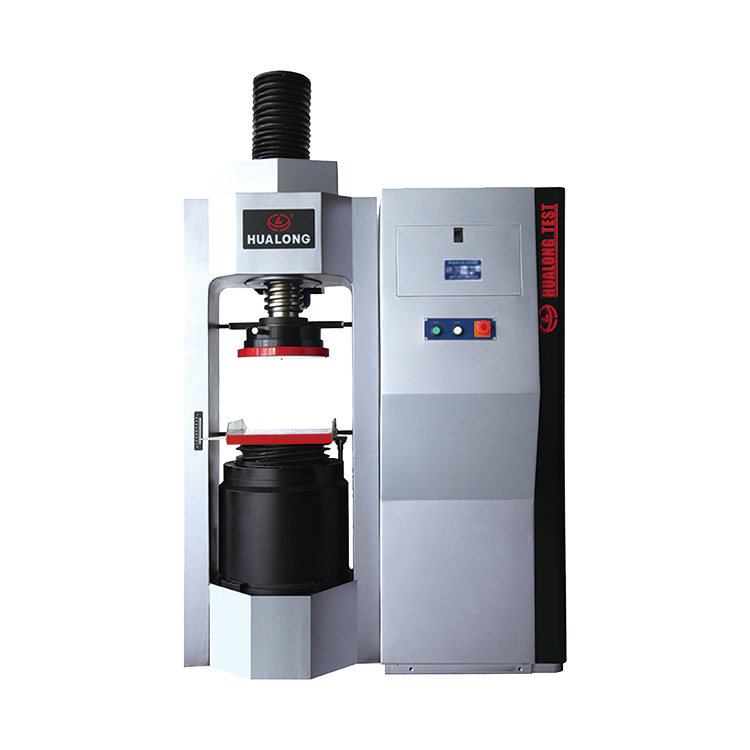

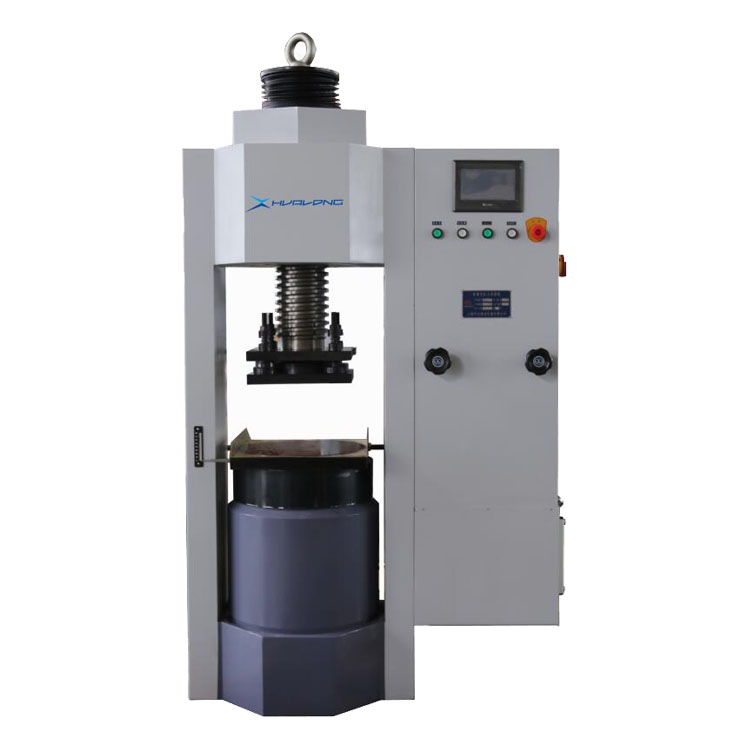

HUALONG HLCTM Series Hydraulic Compression Testing Machine is designed to meet the need for a simple, economic and reliable means of compressive test on Containers, Masonry units, Concrete cubes &cylinders, hollow blocks and various other materials in accordance with European/British standard, which requires a ball-seated upper platen, self-centering lower platens on EN machines.
The machine is electro-hydraulically operated, the machine comprises of Hydraulic Power Pack, PC &Software, Operating Switches, Load Control Valves.
Standards:
EN 12504-1,EN 12390-3,ASTM C39
Main Specification:
Model and specification |
HLCTM-10-300D |
HLCTM-300D |
HLCTM-600D |
HLCTM-2000D |
HLCTM-2000C |
HLCTM-3000C |
Test force range |
4%~100%F.S(Full scale without splitting) |
|
||||
Test force accuracy |
±1% |
|
||||
Compression space (mm) |
255 |
230 |
270 |
330 |
300 |
|
Size of upper plates (mm) |
Φ85 |
Φ110 |
140*140 |
Φ300 |
Φ300 |
300*300 |
Size of lower plates (mm) |
Φ98 |
Φ118 |
140*140 |
Φ300 |
320*320 |
300*400 |
Distance between columns (mm) |
248 |
300 |
340 |
360 |
450 |
470 |
Piston stroke (mm) |
100 |
80 |
||||
Dimension (load frame) (mm) |
600*400*720 |
820*500*1460 |
820*500*1560 |
900*600*1300 |
820*700*1920 |
1060*750*2100 |
Power (kW) |
0.5 AC 380V±10% |
1.1 AC 380V±10% |
1.5 AC 380V±10% |
0.75 AC 380V±10% |
2.25 AC 380V±10% |
3.75 AC 380V±10% |
Weight (kg) |
180 |
580 |
650 |
1000 |
1400 |
2800 |
