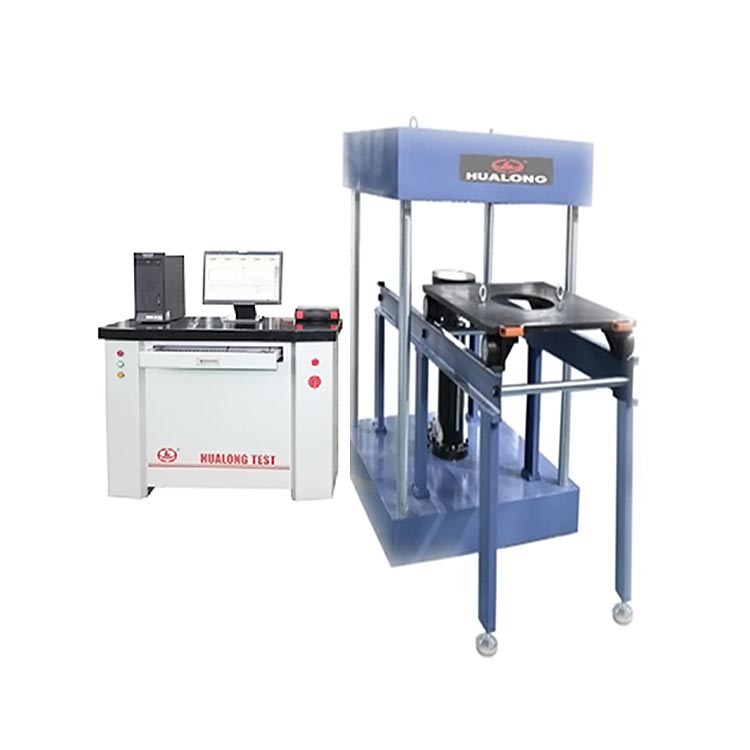

HLCTM-600KN/1000KN Computer Control Manhole Cover Compression Testing Machine

Application:

Used to determine compression strength and residual deformation of castiron manhole cover. Compositive manhole and steel fiber reinforced concrete well cover. It can do the compression test to other material if equippen with other accessories.

Standard:

CJ / T3012-1993 "Cast Iron Inspection Manhole Cover"
CJ / T121-2000 "Recycled Resin Composite Material Inspection Manhole Cover"
JC889-2001 "Steel Fiber Reinforced Concrete Inspection Manhole Cover"
GB / T 23857-2009 "Inspection Manhole Cover"

Parameters:

Model	HLCTM-600	HLCTM-1000
Max test force (kn)	600	1000
Effective test space(mm)	1200×1200
Table height(mm)	200
Force accuracy	±1%
Test range	2%-100%
Deviation of deformation measure	±1%；
Max. piston moves speed	80 mm/min
Maximum compression space	400 mm
Compression plate size	Φ 360 (GB Standard) or 250 (Europe standard)
Deformation measuring range (mm)	0-20
Piston stroke	350 mm
Power supply	380V/220V 1.5kw
Mainframe dimensions (length × width × height) (mm)	2400×1200×1400
