Introduction:

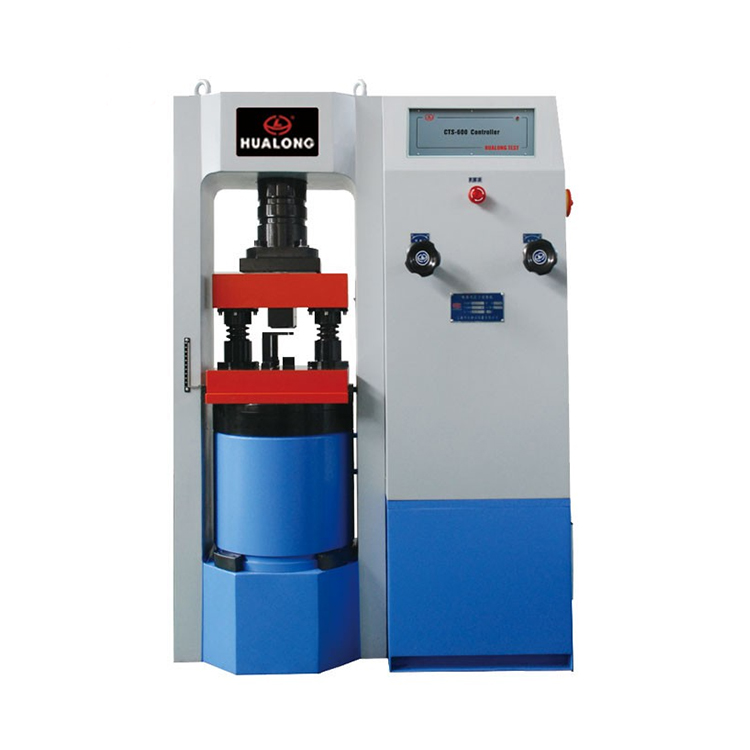

HUALONG YAS Series Hydraulic Compression Testing Machine is designed to meet the need for a simple, economic and reliable means of compressive test on Containers, Masonry units, Concrete cubes &cylinders, hollow blocks and various other materials in accordance with European/British standard, which requires a ball-seated upper platen, self-centering lower platens on EN machines.

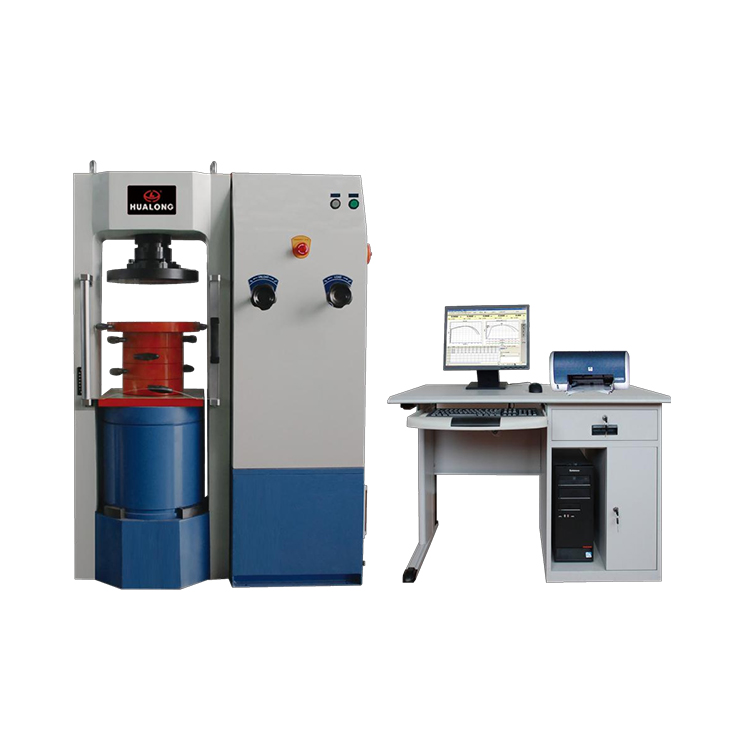

The machine is electro-hydraulically operated, the machine comprises of Hydraulic Power Pack, PC &Software, Operating Switches, Load Control Valves.
Application
EN 12390-3: Testing hardened concrete. Compressive strength of test specimens;
EN 12504-1: Testing concrete in structures. Cored specimens. Taking, examining and testing in compression;
EN 1354: Determination of compressive strength of lightweight aggregate concrete with open structure;
EN 1338: Concrete paving blocks. Requirements and test methods;
EN 772-6: Methods of Test for Masonry Units;
EN 13286-41: Unbound and hydraulically bound mixtures. Test method for determination of the compressive strength of hydraulically bound mixtures.
Technical parameters
Model |
YAS-500/600/1000/1500/2000/3000 |
Load capacity |
1000/1500/2000/3000 |
Overall dimensions (Lx W x H) |
975 × 600 × 1300 |
Maximum vertical clearance of platens |
330mm±3mm |
Horizontal space |
300mm |
Size of lower platen (Diameter*Thick) |
Φ300 × 50mm |
Size of upper platen(Diameter*Thick) |
Φ300 × 50mm |
Hardness of platens |
>55HRC |
Maximum ram travel |
50mm |
Maximum speed of piston |
12mm/min |
Loading speed |
20-50psi/s 0.14-0.34MPa/s |
Noise |
<62dB |
Height of distance pieces: |
Φ150×300mm / 150×150×150mm / 200×200×200m / preset |
Weight |
1000kg |
Power supply: 2.75kW; three phase 380V + G 50Hz Custom power input available |
