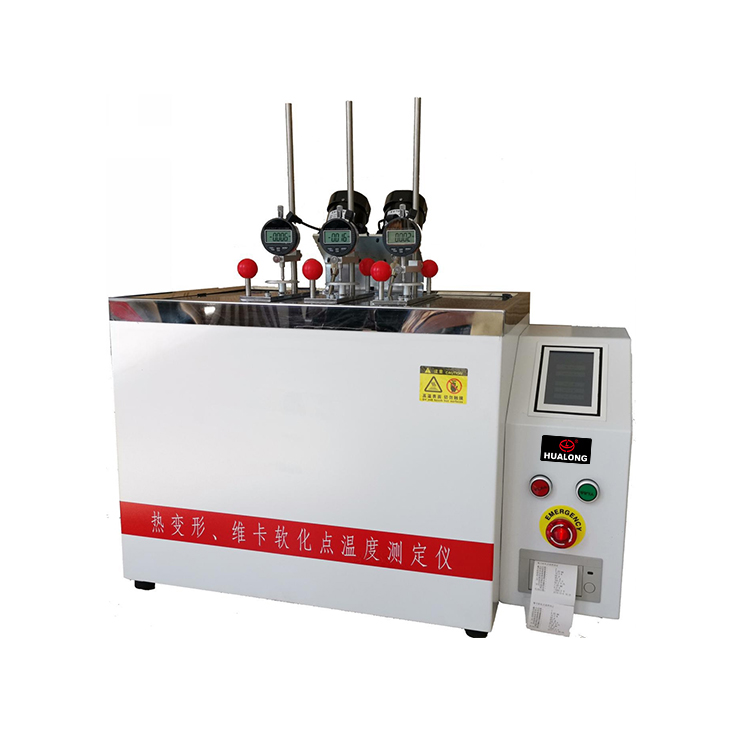

HL-HDT300T Touch Screen HDT/Vicat Plastic Rubber Softening Point Tester

1. Instruction:
The tester used to measure plastic, rubber, nylon, cable … macro molecule material thermal deformation temperature and vi cat softening temperature, the main sensor, element with high-quality, high reliability, security, the sample frame has the function of automatic up and down, simultaneity equip power test software system function mightiness, is a suit of special software of thermal deformation temperature, vi cat softening point temperature test.

2. Specification

Model	HL-HDT300T
Structure	Table type
Temperature control range	room temperature—300°C
Temperature rise speed	(120±10)°C/h (12±1°C/6min); (50±5)°C/h(5±0.5°C/6min)
Temperature accuracy	±0.5 °C (50 degree heating rate) ±1 °C (120 degree heating rate)
Temperature measurement point	1
Maximum deformation error	0.1°C
deformation range	0~10mm
Maximum deformation error	±0.01mm
Sample support span	64mm,100mm
Number of test racks	3
Range of load	0.75N—50N
Test space	60—120 mm (Adjustable continuously )
Display	Touch Screen display
Using media	Methyl silicone oil or transformer oil
Cooling method	Natural cooling above 150°C, water cooling below 150°C or natural cooling
Power supply	4500VA 220VAC 50Hz
