Application:

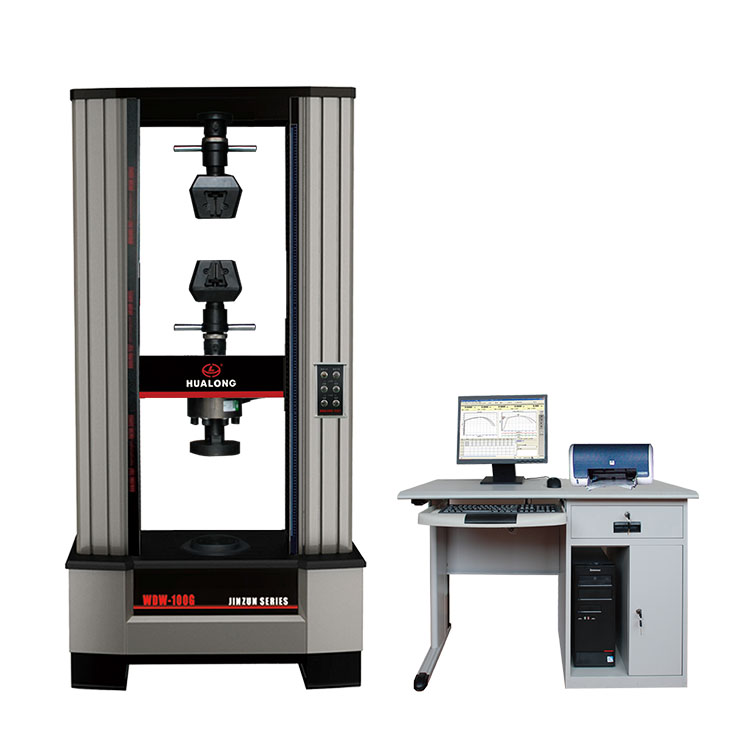

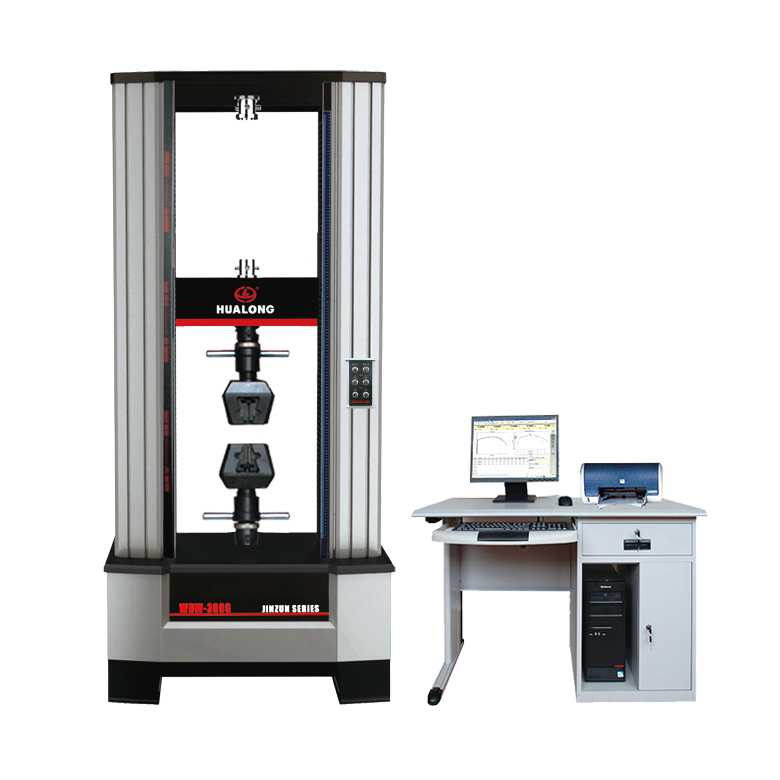

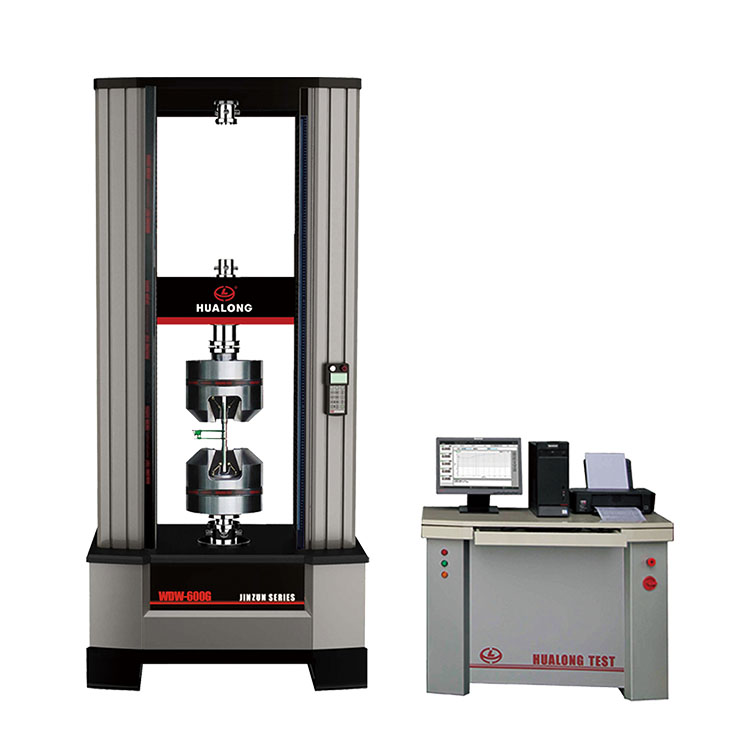

HUALONG HLE series electromechanical testing machines offer force, displacement or deformation closed loop testing in tension, compression, flexure, shear, tear and peel etc.. The machine can be equipped with a variety of accessories including: grips, fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or othermetallic or non-metallic specimens and medical, electronic and other components. The load frames are rigid constructed, providing superior axial and lateral stiffness.
Standards:
Metal: ASTM E8, ISO 6892, BS EN 10002-1, ASTM E21, IS0 783, EN ISO 7438, ISO 14589, ASTM F606
Plastics/ Composites: ASTM D638, EN ISO 6259, EN ISO 527-1, ISO 604, ASTM D695, ASTM D3846, EN ISO 844, EN ISO 13968, EN ISO 9969, etc.
Geo-textiles: ASTM D3950, ASTM D 6775-02, BS EN ISO 10319, JBT 8521(EN 1492-2).
Rubber: ISO 37, ASTM D41
Parameter:
Model |
|
HLE-10 |
HLE-20 |
HLE-30 |
HLE-50 |
HLE-100 |
HLE-200 |
HLE-250 |
HLE-300 |
HLE-500 |
HLE-600 |
HLE-1000 |
||||||||||
Capacity |
kN |
10 |
20 |
30 |
50 |
100 |
200 |
250 |
300 |
500 |
600 |
1000 |
||||||||||
|
kgf |
1000 |
2000 |
3000 |
5000 |
10000 |
20000 |
25000 |
30000 |
50000 |
60000 |
100000 |
||||||||||
Calibration standard |
- |
0.5 according to ISO 7500-1 - Meets ASTM E-4 |
||||||||||||||||||||
Software |
|
Hualong Test world(Support English, Russian, etc) |
||||||||||||||||||||
Load resolution |
kN |
Capacity/500, 000 (fully auto scaling of single measurement range) |
||||||||||||||||||||
Speed |
mm/min |
0.001-1000 |
0.001-1000 |
0.001-500 |
0.001-500 |
0.001 – 400 |
0.001-300 |
0.001-300 |
0.001-300 |
0.001-200 |
0.001-200 |
0.001-200 |
||||||||||
Speed accuracy |
% |
±1.0/±0.5 of set speed |
||||||||||||||||||||
Travel (without grip) |
mm |
1150 |
1150 |
1100 |
1100 |
1200 |
1250 |
1250 |
1250 |
1220 |
1220 |
1220 |
||||||||||
Travel (inclusive grip) |
mm |
1050 |
1050 |
1000 |
1000 |
900 |
700 |
700 |
700 |
600 |
600 |
600 |
||||||||||
Power supply |
V/Hz |
220V-50/60 |
