Introduction

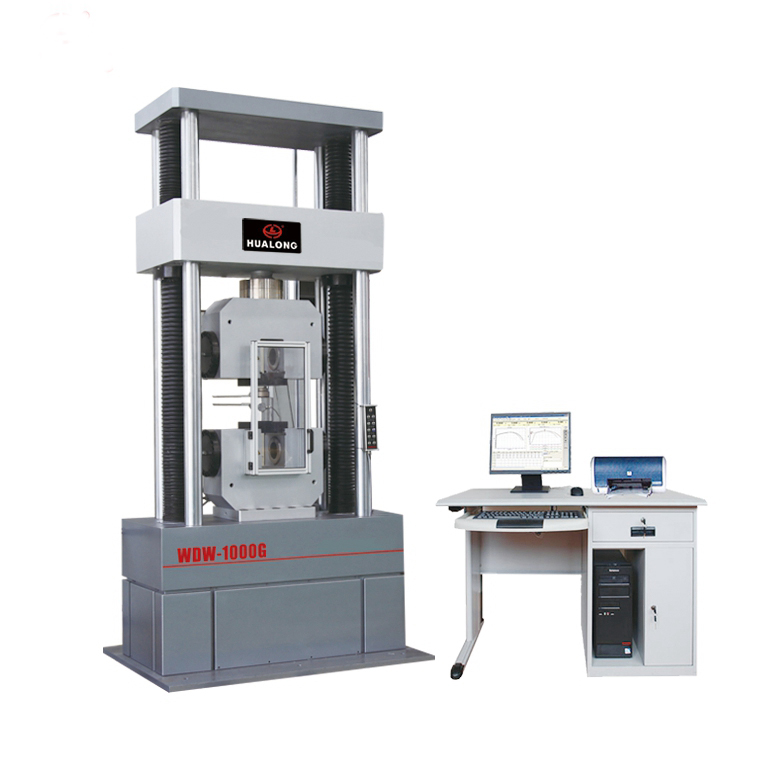

HUALONG HLE series (Dual Space) electromechanical testing machines offer force, displacement or deformation closed loop testing in tension, compression, flexure, shear, tear and peel etc. The machine can be equipped with a variety of accessories including: grips, fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and medical, electronic and other components. The load frames are rigid constructed, providing superior axial and lateral stiffness.
Features
It can perform high-capacity tension, compression, bend, flexure and shear testing which in accord with the relative requirements of ISO, ASTM, DIN, NF, EN and many other national testing methods. Interchangeable fixture design to meet requirements of different specimen materials and test type.
Parameter:
Model |
|
HLE-10 |
HLE-20 |
HLE-30 |
HLE-50 |
HLE-100 |
HLE-200 |
HLE-250 |
HLE-300 |
HLE-500 |
HLE-600 |
HLE-1000 |
||||||||||
Capacity |
kN |
10 |
20 |
30 |
50 |
100 |
200 |
250 |
300 |
500 |
600 |
1000 |
||||||||||
|
kgf |
1000 |
2000 |
3000 |
5000 |
10000 |
20000 |
25000 |
30000 |
50000 |
60000 |
100000 |
||||||||||
Calibration standard |
- |
0.5 according to ISO 7500-1 - Meets ASTM E-4 |
||||||||||||||||||||
Software |
|
Hualong Test world(Support English, Russian, etc) |
||||||||||||||||||||
Load resolution |
kN |
Capacity/500, 000 (fully auto scaling of single measurement range) |
||||||||||||||||||||
Speed |
mm/min |
0.001-1000 |
0.001-1000 |
0.001-500 |
0.001-500 |
0.001 – 400 |
0.001-300 |
0.001-300 |
0.001-300 |
0.001-200 |
0.001-200 |
0.001-200 |
||||||||||
Speed accuracy |
% |
±1.0/±0.5 of set speed |
||||||||||||||||||||
Travel (without grip) |
mm |
1150 |
1150 |
1100 |
1100 |
1200 |
1250 |
1250 |
1250 |
1220 |
1220 |
1220 |
||||||||||
Travel (inclusive grip) |
mm |
1050 |
1050 |
1000 |
1000 |
900 |
700 |
700 |
700 |
600 |
600 |
600 |
||||||||||
Power supply |
V/Hz |
220V-50/60 |
