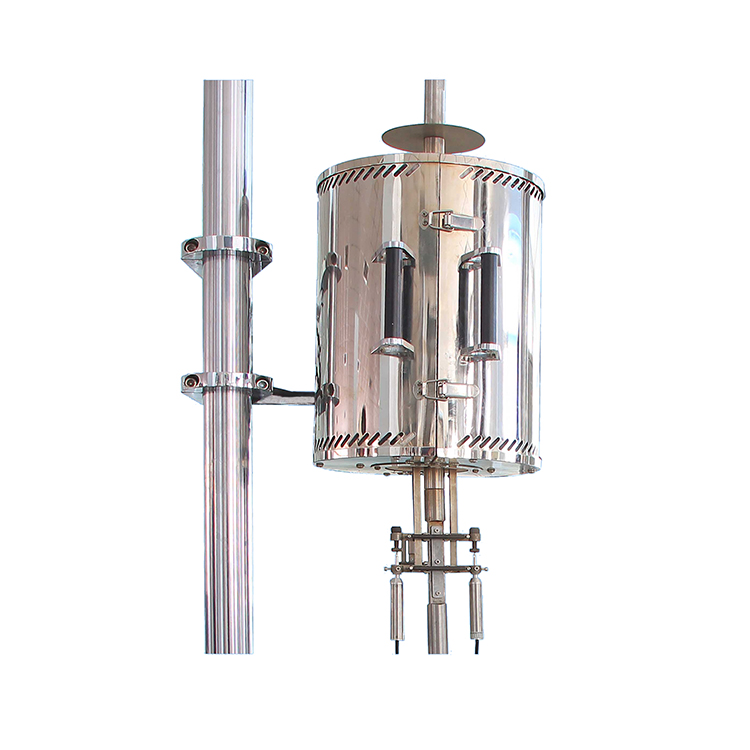

HL-600A/1200A High Temperature Furnace

1.Application:
Used in GB/T4338 "High Temperature Tensile Test Method for Metal Materials", HB5195 "Metal High Temperature Tensile Test Method", GB/T2039 "Metal Tensile Creep and Durability Test Method", HB5150 "Metal High Temperature Tensile Durability Test Method" Strength inspection test in high temperature environment.

2.System composition:
The electric furnace system consists of: high temperature furnace body, temperature measurement and control system, heating element, temperature measurement element, adjustable arm system, high temperature tensile fixture and connecting accessories, high deformation measurement device, water cooling circulation system,etc

3. Parameter:

Model	HL-600A	HL-1200A
Operating temperature	300～600℃	300～1200℃
Long-term operating temperature	600℃	1000℃
Heating element material	FeCrAl resistance wire
Heating body diameter	Φ1.2mm/ Φ1.5mm
Temperature measuring element	K thermocouple (including special compensation wire)
Number of heating body segments	3
Number of temperature measuring points	3
Temperature sensitivity	0.1℃
Temperature measurement accuracy	0.2%
Heating zone length	100mm/150mm
Furnace inner size	Diameter* length:φ 90300mm／φ 90380mm
Dimensions	Diameter* length:φ320380mm／φ320460mm
Tensile fixture:	According to order
Temperature measurement and control system	3 piece of smart meter (Xiamen Yudian) /1 piece of smart meter (EUROTHERM)
Operating Voltage	380V±10%
Mains power	Limit power 5KW when heating up
Extension measure device	Bilateral extensometer / Epsilon3448 / MF high temperature extensometer
Rmark: Red font is standard accessories
