Pneumatic Grips For Plasctic, Paper, Textiles, Aluminium, Brass (1 KN)

1. Introduction:

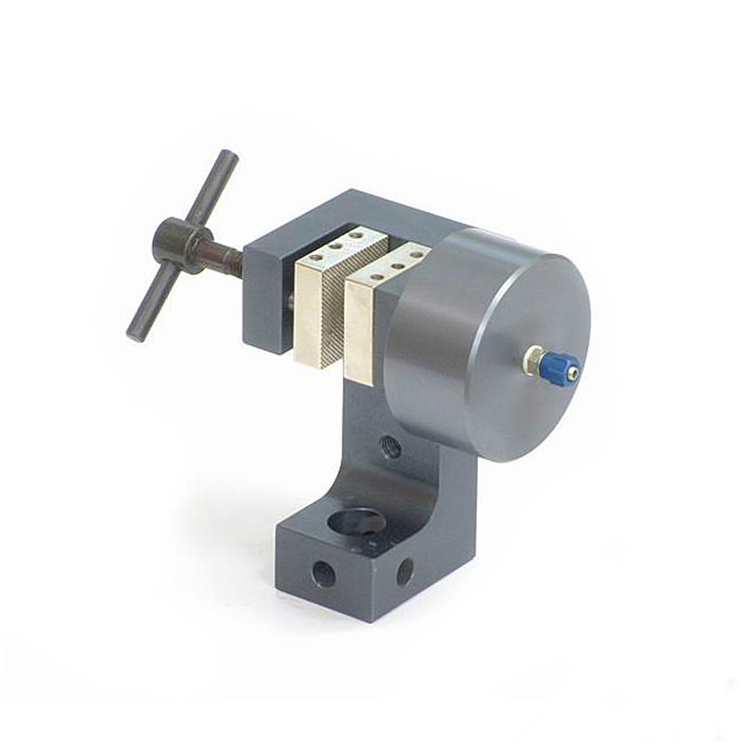

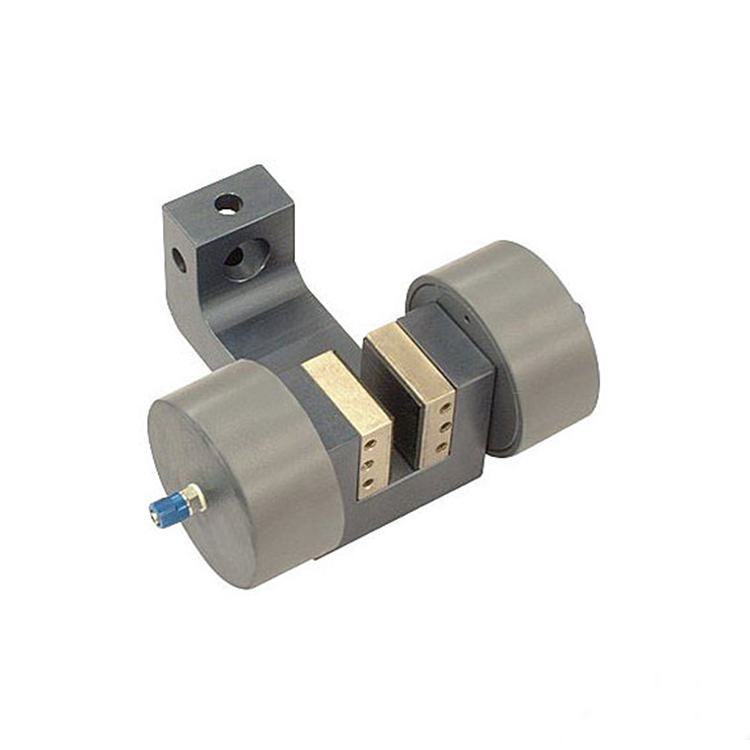

Universal pneumatic gripper, used for testing specimens made of plastics, paper, textiles, aluminium, brass, metal foil and other materials with a tensile force of up to 1 kN.
The specimens are clamped pneumatically.
Clamping jaw surface options:
smooth (G);
with rubber coating 1 mm (P);
serrated pyramidal (Z);
v-shaped, v-shaped corrugated (V, V1);
wavy (B) for elastic specimens.
Clamping jaws 30×30 mm in size are provided, consisting of a base and replaceable inserts-inserts (B):
smooth (SH);
with rubber coating (VR);
dentate pyramidal (VZ).

2. Specification:

Options	G	R	W	B	V	V1
	VG	VR	VZ	-	-	-
Max. tensile load, kN	1
Max. compression load, kN	1.2
Max. pressure, MPa	0.7
Clamping jaw size, mm	30×30
Opening size / sample diameter, mm	0-10	0-8	0-10	0-10	Ø (2-10)	Ø (3-10)
Opening size with interchangeable inserts, mm	0-8	0-6	0-8	-	-	-
Clamping jaw surface	Smooth	Rubber	Dentate	Undulating	V-shaped	V-shaped rifl
