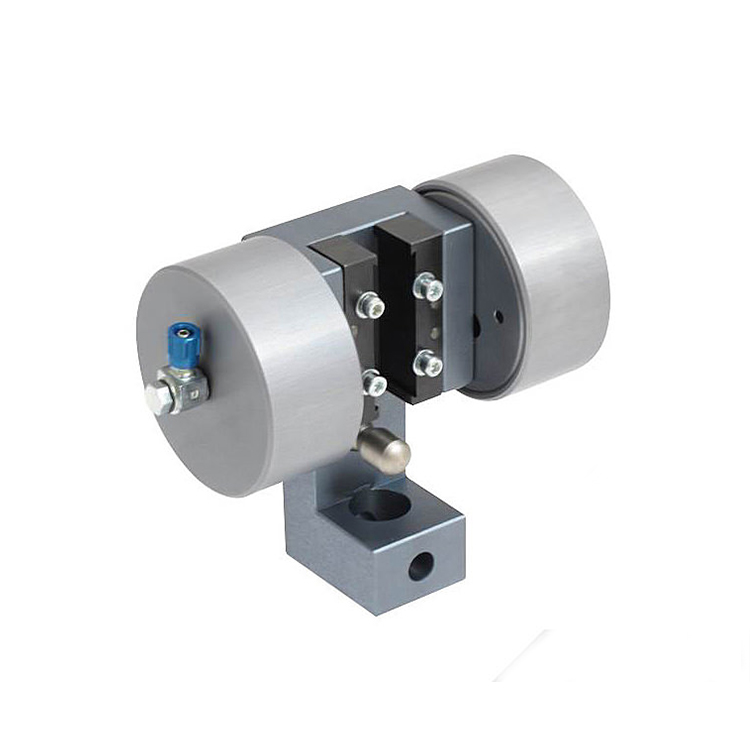

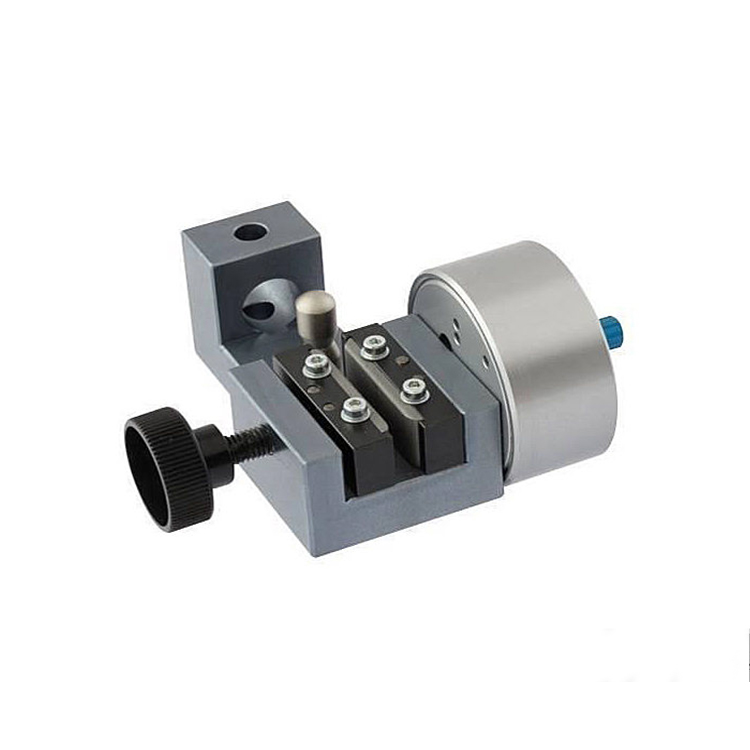

Pneumatic Grips With Winding Pin (2.5 KN)

1. Introduction:
It is used for testing narrow flat or cylindrical specimens, for example, thin wire, ropes with a tensile force up to 2.5 kN. The design of capture provides a finger for winding of a sample.
The specimens are clamped pneumatically.
Clamping jaws consist of a base and interchangeable inserts - inserts with a smooth surface (SH).
GOST 1497, ASTM E8 - ferrous and non-ferrous metal products;
GOST 10446 - wire;
GOST 11701 - metal thin tape;
GOST 25018 - cables, wires, cords.

2. Specification:

Max. tensile load, kN	2.5
Max. compression load, kN	1.3
Max. pressure. MPa	0.7
Opening size, mm	0 to 5
Size of replaceable inserts, mm	37×15
Clamping jaw surface	Smooth (SH)
Base size for liners, mm	45×15
Landing hole, mm	15.9; 20
Pneumatic connection female thread	M5
Overall dimensions, mm	95×84.2×40
