Pneumatic Grips One and Two Cylinder (0.1 KN)

1. Introduction:
Universal pneumatic gripper, used for testing samples of various materials with a tensile force of up to 0.1 kN.

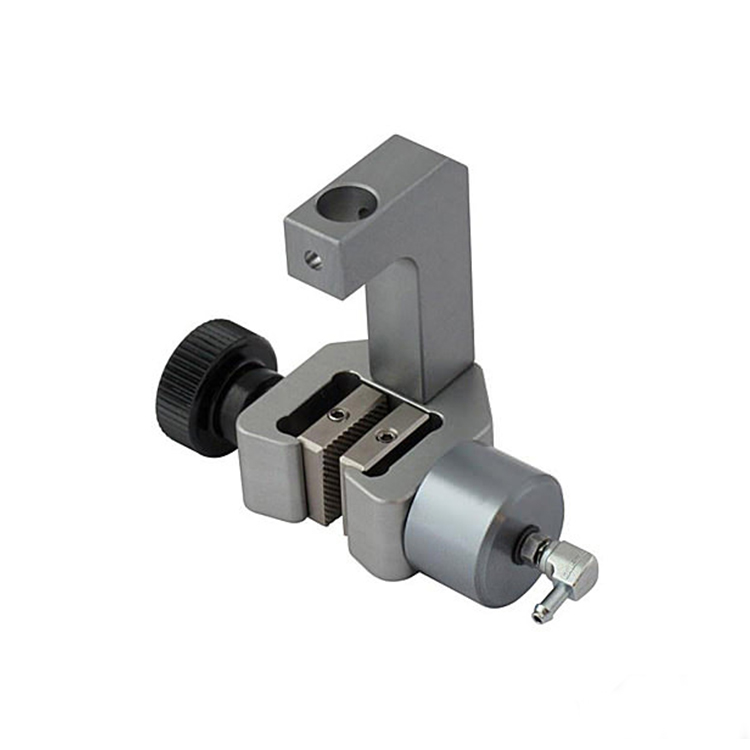

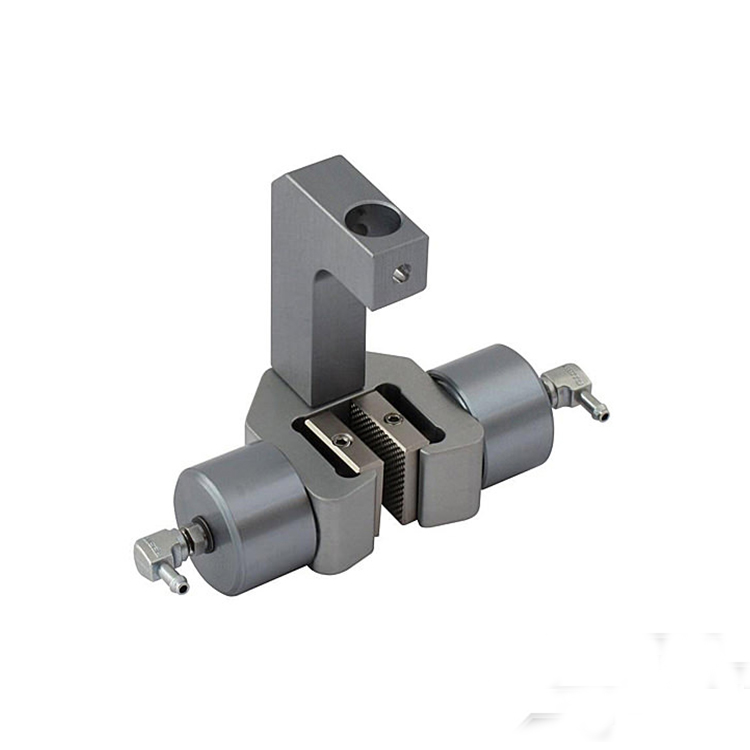

The design of models is possible in two versions: with one pneumatic cylinder and two.
Clamping jaw surface options:
smooth (G);
serrated pyramidal (Z);
rubber coated (P).

2. Specification:

Options	Mr.	WITH	R
Clamping jaw surface	Smooth	Dentate	Rubber
Max. tensile load, kN	0,1
Max. clamp load, kN	0,14
Max. allowable pressure, MPa	0,7
Opening size, mm	From 0 to 8		From 0 to 6
Clamping jaw size, mm	15×15
Mounting hole*, mm	8
Overall dimensions, mm	62×53
Note: * - other sizes are possible according to the customer's specifications
