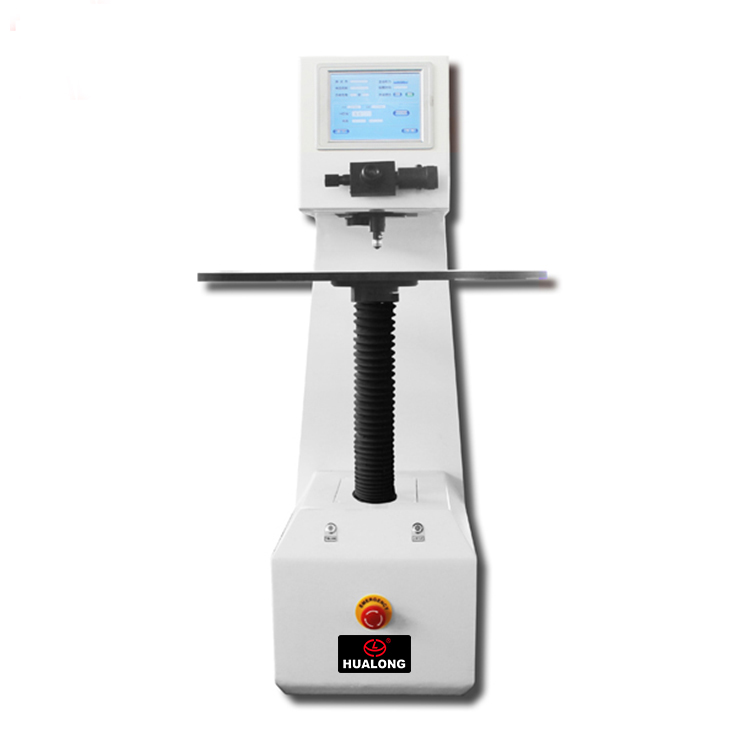

HLBS-3000MDX Automatic Brinell Hardness Tester

Features:

1) Electronic electric loading, high precision sensor, closed loop control system, each force is automatically compensated.

2) Large sample space, large sample can be placed.

3) Wide range of force value, from 5-3000kgf, 10 kinds of Buchwald scales, users can customize.

4) Automatic turret, automatic loading, automatic unloading, loading without manual focus.

5) Z-axis automatic lifting, after putting the sample, press the test button, the sample will rise automatically, after contacting the pressure head, it will start automatic loading, after automatic unloading, the turret will automatically turn to the test position, z-axis will automatically focus to the focal plane, and then test.

6) Eyepiece structure with digital encoder, measure D1, D2 value, LCD directly display hardness value and D1, D2 value.

7) It can be calibrated according to standard hardness blocks or length scales.

8) Test force can be corrected automatically by standard dynamometer.

Rockwell and Vickers hardness values can be converted.

9) Touch screen interface, easy to operate, can input samples, testers and other information.

10) Data usb disk is directly saved in EXCEL format, convenient editing and processing.

Specification:
