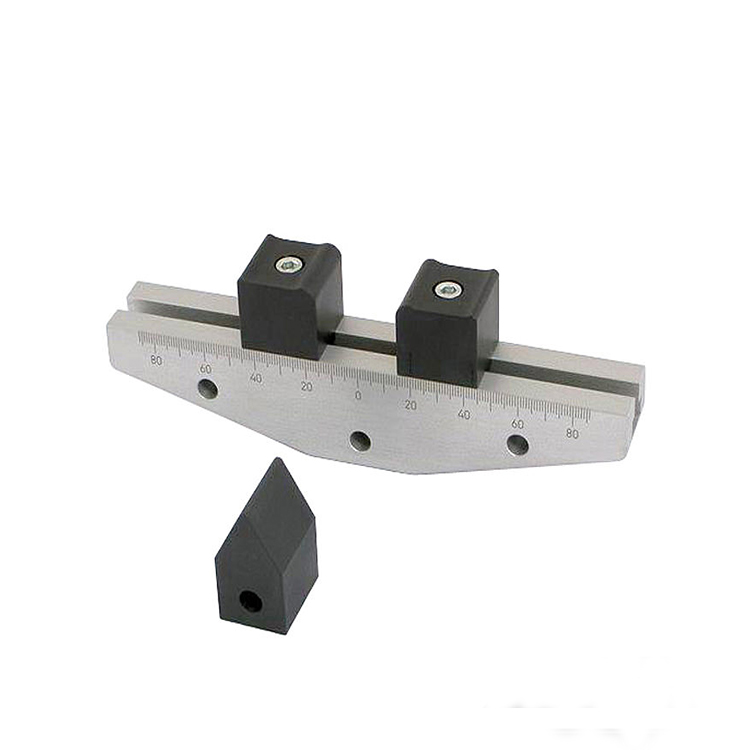

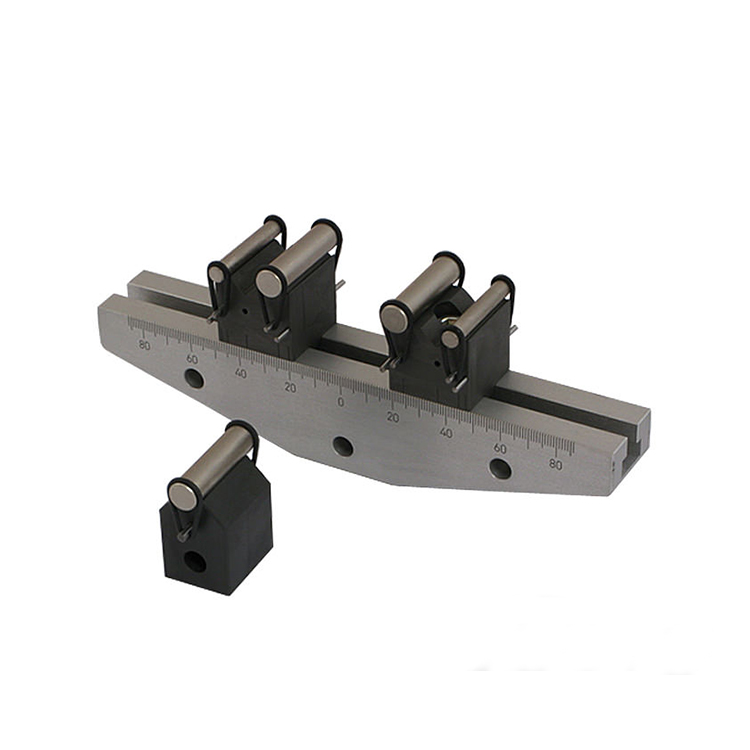

Three-point Bending Grips (2.5-10 KN)

Max. load (aluminum), kN

2.5

Max. load (steel), kN

Ten

Type of bend

Three-point

Base length, mm

200, 300, 350, 400, 430

Ruler length, mm

160

KNIFE (PUNCH):

Size, mm

30x42

Bore diameter, mm

15.9

Fixing diameter, mm

Eight

Mounting hole depth, mm

22

Radius (Rn), mm

0.5, 1, 1.5, 2, 3, 3.2, 4, 5, 10

Weight, kg

0.16

Inlet diameter, mm

Eight

SUPPORT:

Support size, mm

30×67

Support with double radius (Rо1+Rо2), mm

1.5+2.5; 2+3; 2+5; 3.2+5; 4+5

Support with one radius (Rо1), mm

0.5, 1, 1.5, 2, 2.5, 3, 3.2, 4, 5, 5, 10

Weight, kg

0.8
