WCJ Series Drop Weight Tear Impact Testing Machine

WCJ Series Drop Weight Tear Impact Testing Machine
WCJ Series Drop Weight Tear Impact Testing Machine
WCJ Series Drop Weight Tear Impact Testing Machine
WCJ Series Drop Weight Tear Impact Testing Machine
WCJ Series Drop Weight Tear Impact Testing Machine
WCJ Series Drop Weight Tear Impact Testing Machine
WCJ Series Drop Weight Tear Impact Testing Machine
WCJ Series Drop Weight Tear Impact Testing Machine
WCJ Series Drop Weight Tear Impact Testing Machine
Application

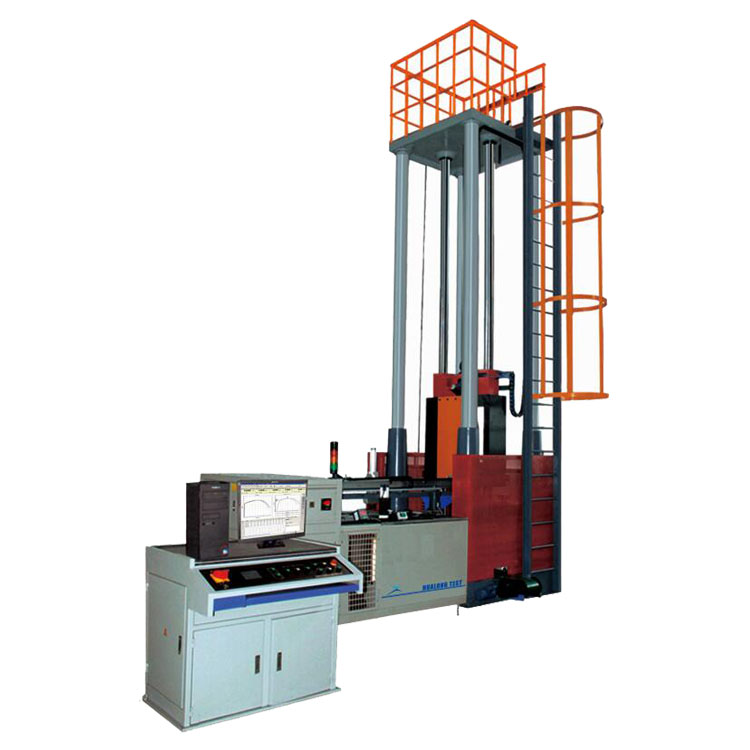

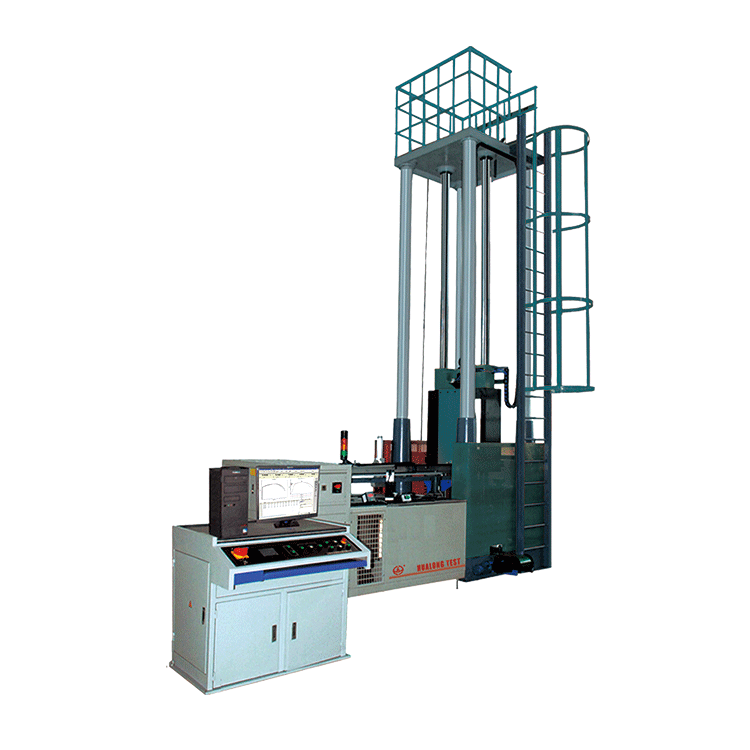

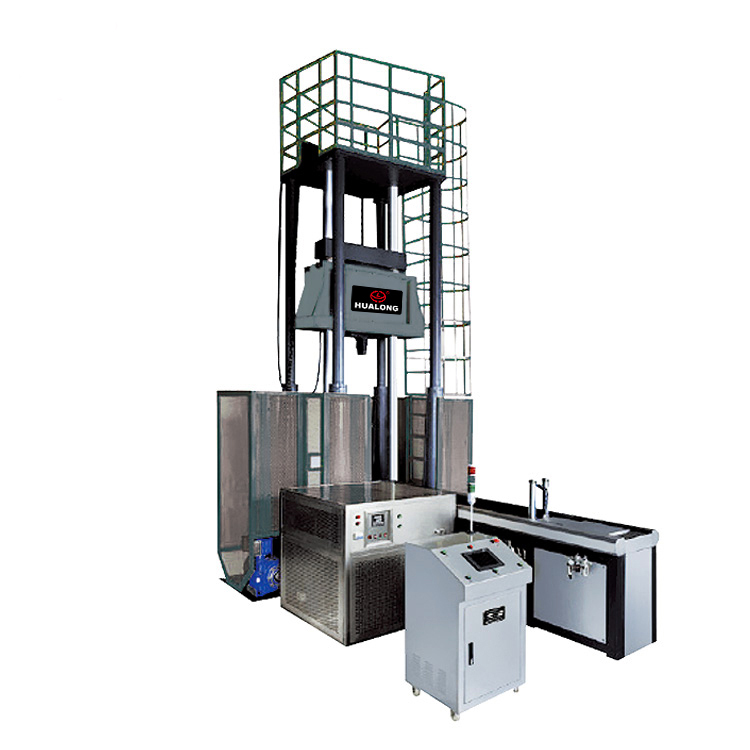

DWTT Series Drop Weight Impact Testing Machine is suitable for drop weight tear test of various kinds of ferrites,especially for the test of DWTT to pipeline steel as ASTM-E 436, API-RP 5L3, ASTM-E 208 and DIN EN10274. Equipped with different weights and anvils, it can do other types of impact tests according to customers' special request.


Standards

ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002,etc

Specifications
Model
WCJ-30000
WCJ-40000
WCJ-50000
Max impact energy
30000J
40000J
50000J
Max. Lifting height
2600mm
Range of impact speed
5~7m/s
Tup Mass
600kg
800kg
1000kg
weight of counterpoise/pcs
600kg/20pcs
810kg/27pcs
1000kg/20pcs
Size of Impact sample
{300±5}*{75±1.5}*{3-40}mm
low temperature humidity chamber
room temperature~-70℃
Low temperature chamber volume
12pcs/20pcs
Control mode
Auto/semi-auto/manual
Full test time
The specimen leaves the low temperature chamber until the break time<9s
