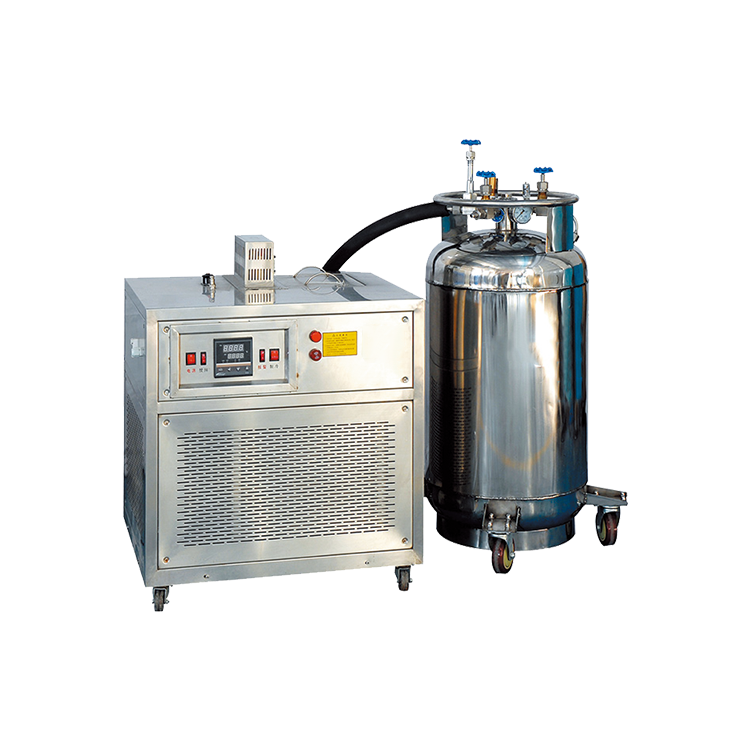

Impact Testing Low Temperature Chamber With Liquid Nitrogen

Application:

This equipment used liquid nitrogen refrigeration technology, the use of the principle of heat balance and mixing method of circulation to achieve uniformity of the sample auto-cooling and temperature, to fully meet the temperature indicators of national standard GB229-2007 of the provisions. The equipment is simple, convenient and efficient for working, which is the ideal equipment of specimen cooling and insulation for low-temperature impact testing. At the same time, it can also be used for other low-temperature detection and testing.

Standards：

ASTM, E23-02a, En10045, ISO83，GB/T229-2009

Specification:

Model	DWC-150	DWC-196
Cooling range	+30°C ~-150°C	+30°C ~-196°C
Constant temperature accuracy	±2°C
Temperature dropping speed	2°C ~5°C / min
Max. Dimension	900×660×650 mm
Dimension of the liquid nitrogen tank	1000×600×600 mm
Effective working space	240×150×150mm(huge stainless steel refrigerator)
Specimens amount	60 (Impact Specimens Size: 10×10×55mm)
Digital timer	1min~9999min(Resolution:1min)
Cooling medium	Liquid nitrogen
Power supply	220V~240V, 50HZ, 2.5KW
