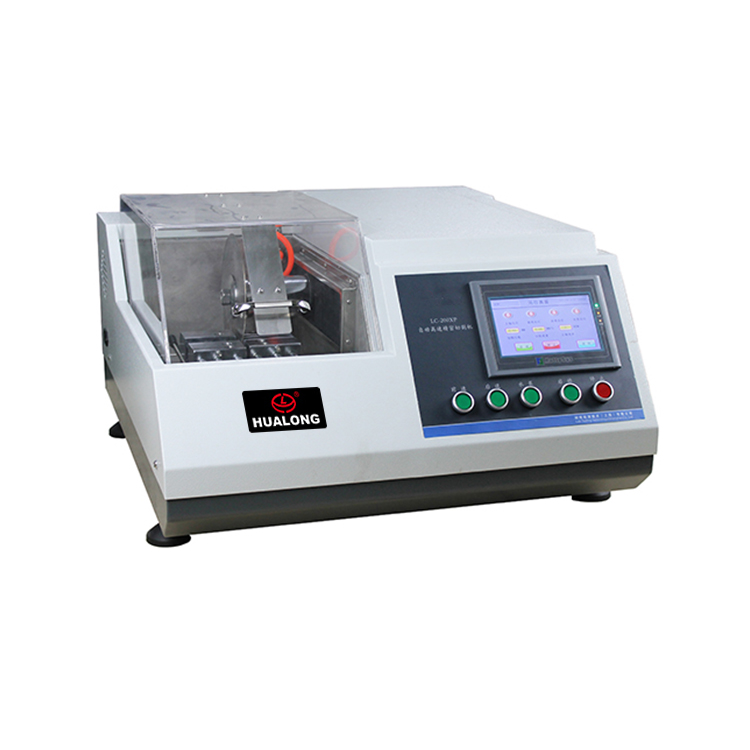

HLC-200XP Automatic High Speed Precision Cutting Machine

1.Product features

-Adopt man-machine interface, PLC control, intuitive interface, simple operation.

- English and Chinese language can be switched simple operation, convenient parameter setting.

-Spindle adopts servo motor closed loop control, overload protection.

There are two cutting ways to choose cutting, a wider range of materials to adapt to the cutting.

-Setting parameters can be saved. Different materials can be cut to select user to save parameters. There is no need to set parameters anew every time.

-There is external circulating water cooling device.

-Closed and transparent protective cover and safety switch provide protection for the operator.

2.Technical parameters

Item	Specifications
Cutting disc	Standard φ200 x 32 x0. 9mm
Spindle speed	500-3000r/min (optional 500-5000r/min)
Feed speed	0.01- 3 mm/s adjustable
Manual feed speed	0-15mm/s
Backward speed	0-15mm/s
Impact cutting distance	0.1- 2 mm
Cutting stroke (Y axis)	200mm
Maximum cut diameter	φ60 mm
Maximum length of table clamping table	150mm
Maximum width of table clamping table	200mm
Servo motor	Power: 1.1 kw
Usage method data	Can store 12 kinds
Power supply:	AC220V 50HZ
Overall dimensions	750 * 860 * 430 mm
Weight	126KG
