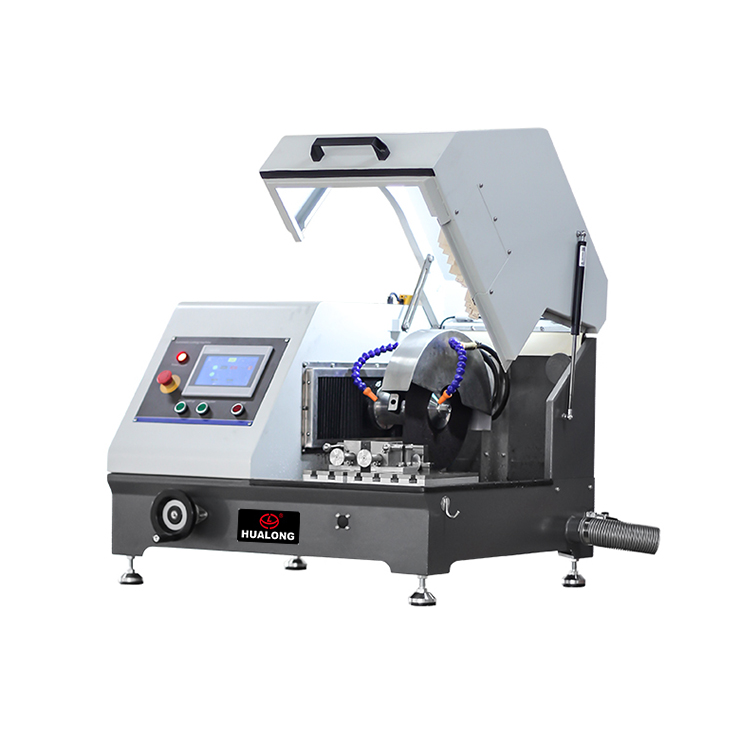

HLC-350YAT Automatic Metallographic Cutting Machine

1.Product features.
- Adopts advanced single-chip microcomputer PLC automatic control, to achieve automatic cutting;
-Built-in 9 cutting modes. According to the soft and hard degree of sample material, the nine corresponding cutting parameters can be modified and saved.
- Automatic working state, automatic feeding and retreating, feeding and retreating speed can be set;
- Innovative vibration (feed - back - feed) cutting mode, so that the sample cutting part is fully cooled, to ensure that the cut sample will not be burned;
-Can be completely manual operation, not affected by automatic mode;
- The sample and the cutting piece can be moved independently (double Y axis), the cutting sample size is larger and more flexible (optional)
- Quick clamping mechanism, easy to load the sample;
- Adopt fully closed structure, transparent protective cover, increase the observation field of vision, up and down the way of opening and closing is simple and easy, does not occupy space;
- Super circulating cooling system makes the workpiece will not burn when cutting. There is a filter screen in the water tank, which is easy to collect the residue and waste chips.
- The main parts such as clamp mouth and working table are made of stainless steel with long service life.
-Emergency brake, air switch, etc. Provide the operator with multiple protection switch security.

2.Technical parameters

Item	Specifications
Cutting disc	350 * 2.5 * 32mm
Spindle speed	2800r/min
Feed speed	0.01 -3 mm/s adjustable
Cutting stroke (Y axis)	220mm
Maximum cut diameter	φ 100 mm round rods
Maximum clamping distance	128mm
Working table size	333mm*240mm
Working table moving Distance (optional)	320mm
Cutting clamp	Fast push-pull type , height of the clamp mouth is 60mm
Control	LCD touch screen, button
Lighting	LED lighting
Cooling device	Cooling water tank, a cooling water gun
Circulating water tank	External circulating filter water tank 40L
Motor	Power: 4 kw
Emergency brake	Abrupt stop switch
Power supply:	AC380V 50HZ
Overall dimensions	960890725mm, foot center distance 830*710mm
Weight	200KG
