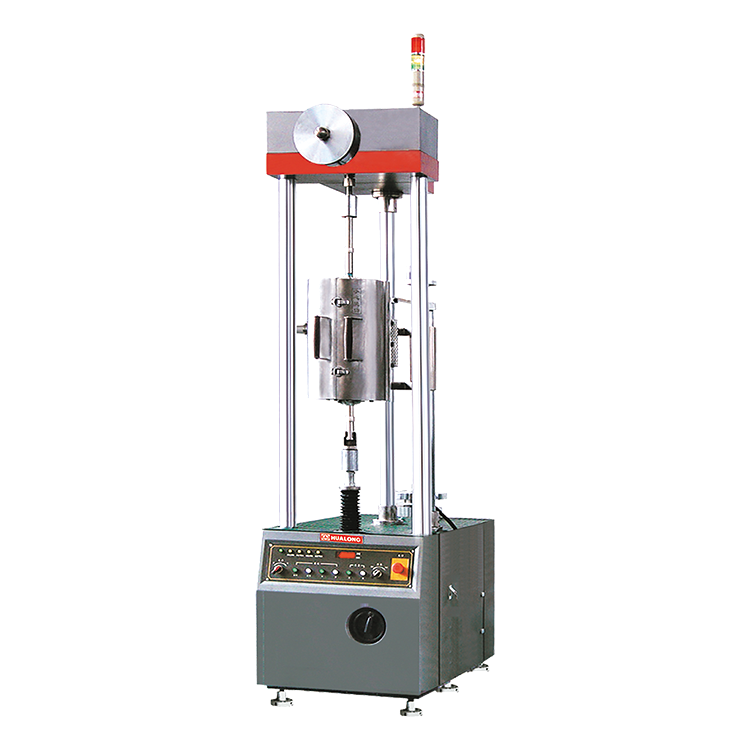

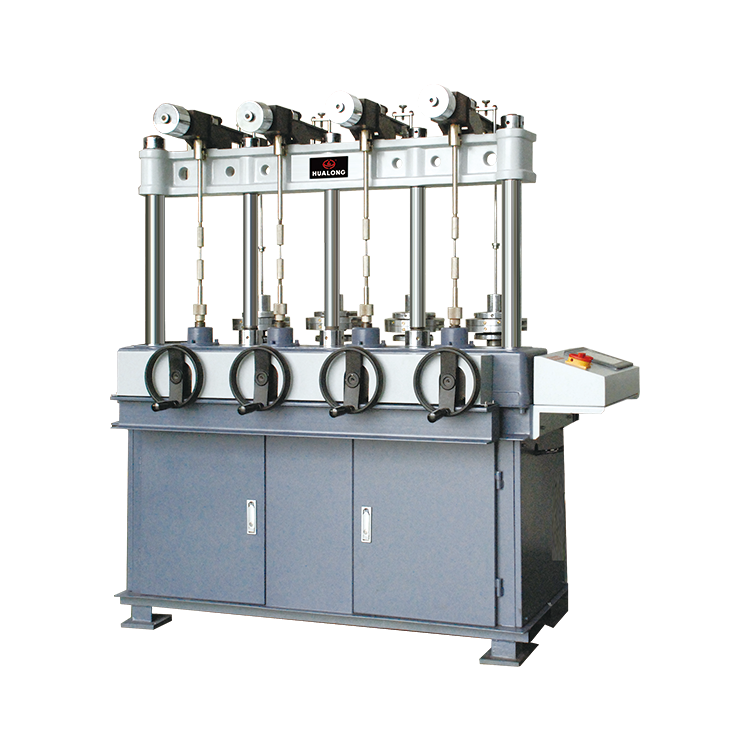

RCW Series Creep And Stress Rupture Testing Machine

Product Description
HUALONG RCW Series Creep and Stress Rupture testing machine is mainly designed to perform Creep and Stress Rupture testing of a wide variety of materials to both standard and customized specifications such as ASTM E139, ISO 204, ISO/R 206 and similar international standards.

These machines are capable of covering the determination of the amount of deformation as a function of time (creep test) and the measurement of the time for fracture to occur when sufficient force is present (rupture test) for materials when under constant tensile forces at constant temperature. HUALONG offers three models electronic high temperature creep-testing machine with full closed-loop servo-control in capacities from 10kN to 500kN.

Specifications

Load frame
Model	RCW-10/20	RCW-30	RCW-50	RCW-100	RCW-300	RCW-500
Load capacity	10kN/20kN	30kN	30kN	50kN	300kN	500kN
Load accuracy	≤±0.5% of indicating
Deformation accuracy	<±0.5% of reading
Lower loading bar travel	200mm
Loading Speed	0.01-50mm/min
Load Frame Dimensions (cm)	2107154	2207154		2397354	3209574
Load Frame Weight (kg)	400	400		500	1000	1200

Furnace
Temperature range	200ª~1000ª
Medial temperature zone range	150mm
Temperature deviation	< 3ª
Surface temperature of furnace	≤50ª
Service life	≥7500H (under 1000ª)
Maximum power consumption	2kW
Furnace inner dimensions	(Inner diameter × length)(mm) Φ80×340
Furnace out dimensions	(out diameter × length)(mm)Φ320×440
