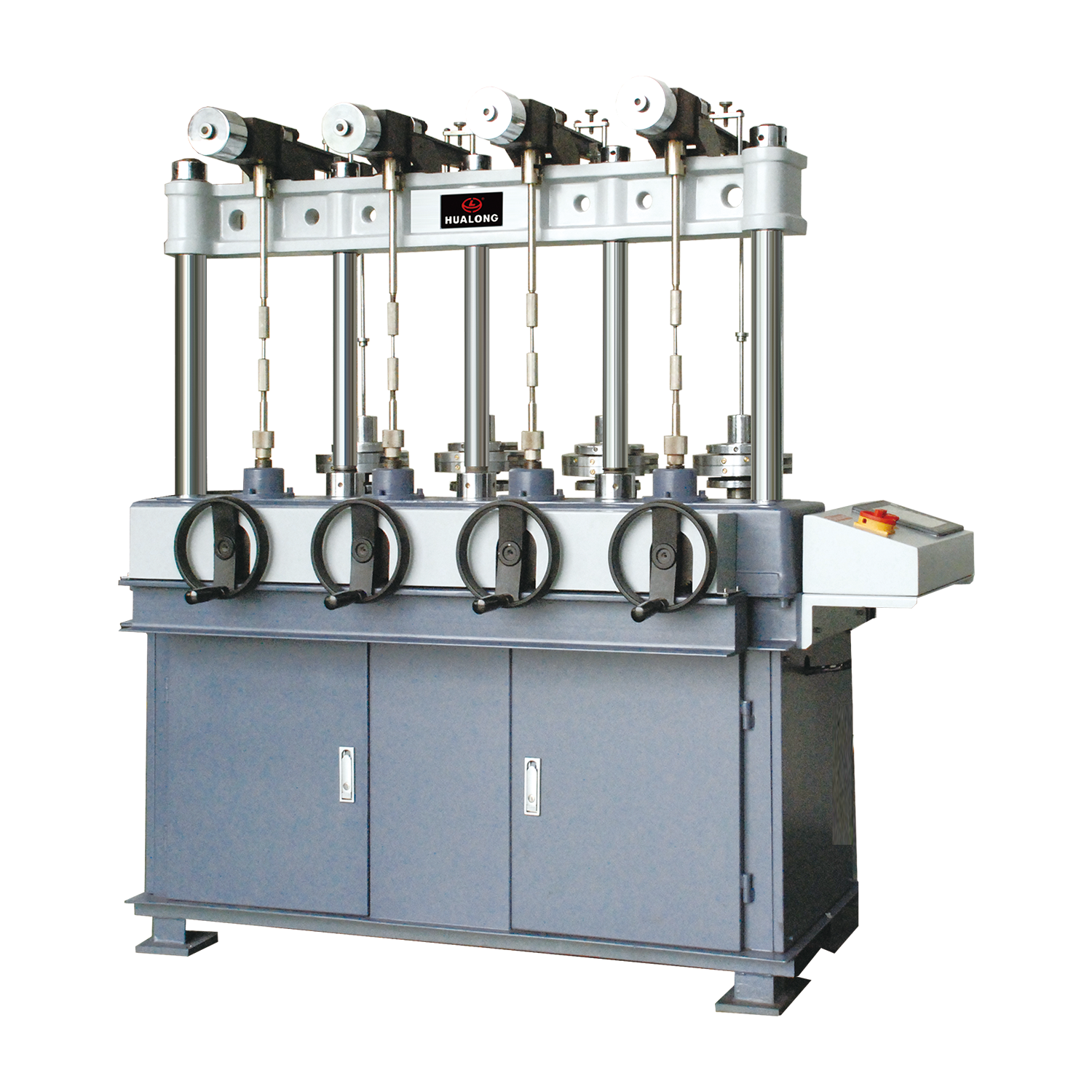

RCW series program-controlled multi-head creep endurance testing machine
Product Description
HUALONG RCW Series Creep and Stress Rupture testing machine is mainly designed to perform Creep and Stress Rupture testing of a wide variety of materials to both standard and customized specifications such as ASTM E139, ISO 204, ISO/R 206 and similar international standards.
These machines are capable of covering the determination of the amount of deformation as a function of time (creep test) and the measurement of the time for fracture to occur when sufficient force is present (rupture test) for materials when under constant tensile forces at constant temperature. HUALONG offers three models electronic high temperature creep-testing machine with full closed-loop servo-control in capacities from 10kN to 500kN.
Specifications | ||||||
Load frame | ||||||
Model | RCW-10/20 | RCW-30 | RCW-50 | RCW-100 | RCW-300 | RCW-500 |
Load capacity | 10kN/20kN | 30kN | 30kN | 50kN | 300kN | 500kN |
Load accuracy | ≤±0.5% of indicating | |||||
Deformation accuracy | <±0.5% of reading | |||||
Lower loading bar travel | 200mm | |||||
Loading Speed | 0.01-50mm/min | |||||
Load Frame Dimensions (cm) | 210*71*54 | 220*71*54 | 239*73*54 | 320*95*74 | ||
Load Frame Weight (kg) | 400 | 400 | 500 | 1000 | 1200 | |
Furnace | ||||||
Temperature range | 200ª~1000ª | |||||
Medial temperature zone range | 150mm | |||||
Temperature deviation | < 3ª | |||||
Surface temperature of furnace | ≤50ª | |||||
Service life | ≥7500H (under 1000ª) | |||||
Maximum power consumption | 2kW | |||||
Furnace inner dimensions | (Inner diameter × length)(mm) Φ80×340 | |||||
Furnace out dimensions | (out diameter × length)(mm)Φ320×440 |
