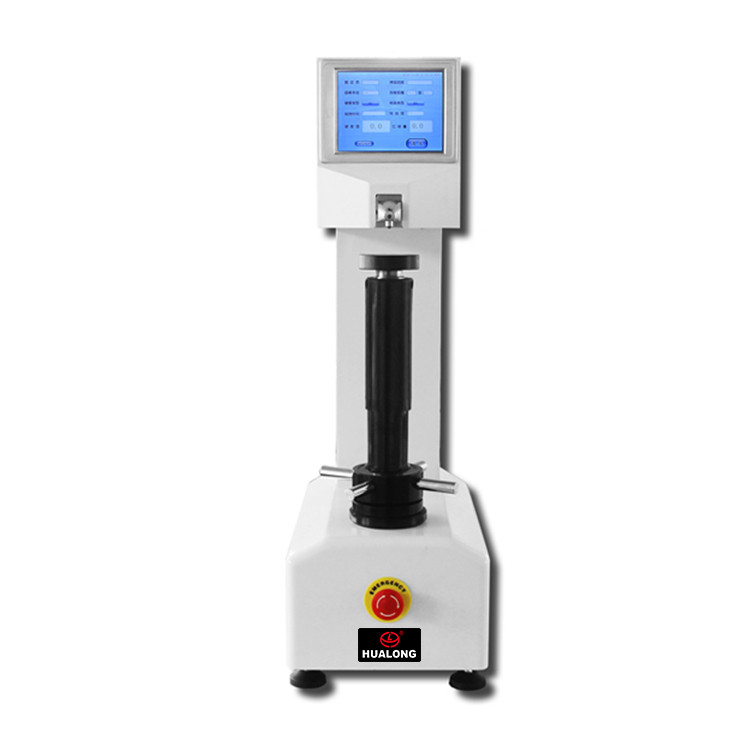

HLR-150DXC Nosed Rockwell hardness tester

Main features：1. The specially designed pressure head is extended horizontally, which can measure the parts that are unable to be measured by the general hardness tester, such as ring and tube, with the minimum test inner diameter of 25mm2. Adopting electronic and electric loading, high precision load cell, with unique closed loop control system.3. Touch screen interface, easy to operate, directly select the hardness scale, the force value is automatically changed in the test parameters.4. According to the standard hardness block, the three segments of each hardness scale are automatically corrected.5. The test force can be modified automatically by standard dynamometer.6. Auto-loading the main test force.7. The data processing function is powerful, including: HR, HB, HV and other hardness type conversion, setting up the qualified range, automatic alarm for over-limit, and inputting the information such as tester, sample name, etc.8. More samples and test information, the measurement data U disk saved in EXCEL format, easy to edit and process.

Model	THR-150DXC
Rockwell initial test force	10kgf(98.07N)
Rockwell total test force	60kgf(588N) 100kgf(980N) 150kgf(1471N)
Rockwell hardness scale	HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK、 HRL、HRM、HRR、HRP、HRS、HRV
Rockwell measurement range	HRA:20-88、HRB:20-100 、HRC:20-70 、HRD:40-77 、HRE:70-100 、HRF:60-100 、HRG:30-94、HRH:80-100、HRK:40-100、HRL:100-120 HRM:85-115、 HRR:114-125
Dwell time	0-99s
Hardness resolution	0.1HR
Test force error	＜1.0%
Data output	LCD display
Data storage	Data is saved in the U disk as EXCEL format
Scale conversion	Superficial Rockwell、Brinell, Vickers
Carried standard	BSEN 6508， ISO 6508， ASTM E18， GB/T230
Max. Height of sample	300mm
The distance of indenter to the wall	250mm
Dimension	720×260×840mm
Weight	80kg
Power	AC220+5%,50～60Hz
