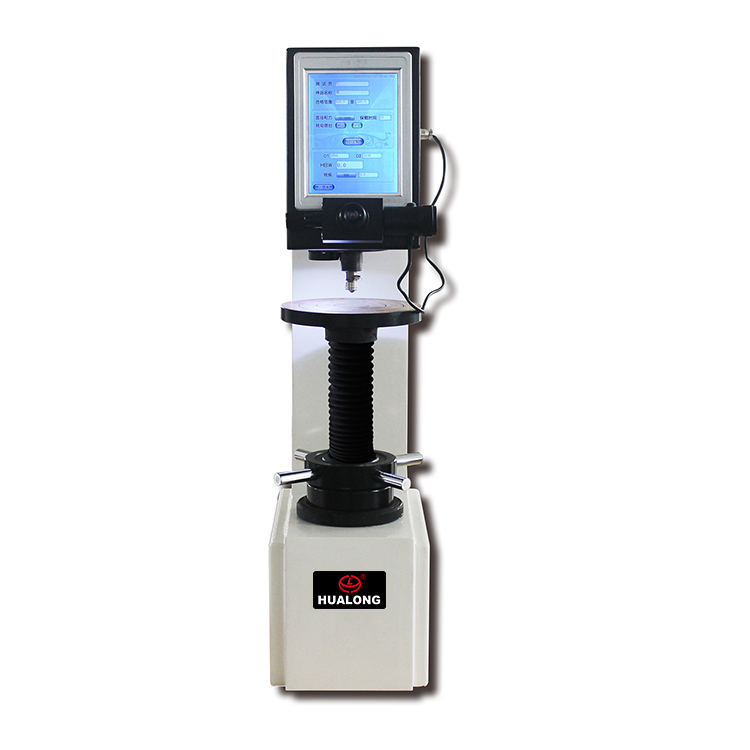

HLB-3000DX Electric Digital Brinell Hardness Tester

Main features:

1) Adopts electronic automatically add load, with high accuracy sensor, have special closed-look conrtrol system, automatic compensation for each shift.

2) Eyepiece structure with digital encoder, measure D1, D2 value, LCD displays hardness value and D1, D2 value directly.

3) Can be calibrated according to standard hardness block or length scale.

4) The test force can be modified automatically by standard dynamometer.

5) The hardness values of rockwell and vickers can be converted.

6) All data is stored in EXCEL format on USB disk, or can choose built-in printer, RS232 is optional.

Technical specification:

Model	HLB-3000DX
Brinell scale	HBW2.5/62.5、HBW2.5/187.5、HBW5/62.5、HBW5/125、HBW5/250、 HBW5/750、HBW10/100、HBW10/250、HBW10/500、HBW10/1000、 HBW10/1500、HBW10/3000
Test force（Kgf）	62.5kgf(612.9N)、100kgf(980.7N)、125kgf(1226N)、 187.5kgf(1839N)、250kgf(2452N)、500kgf(4903N)、750kgf(7355N) 1000kgf(9807N)、1500kgf(14710N)、3000kgf(29420N)
Carried standard	BSEN 6506, ISO 6506, ASTM E10, GB/T231
Test force accuracy	62.5～250kgf≤1% 500～3000kgf≤0.5%
Measuring device resolution	0.1um
Hardness value resolution	0.1HBW
Dwell time	0～99S
Data output	LCD display
Data storage	All data is stored in EXCEL format on U disk, or can choose built-in printer
Max. Height of specimen	200mm
Distance of indenter to outer wall	155mm
Dimension	550×210×800mm
Weight	110kg
Power supply	AC220+5%,50～60Hz
