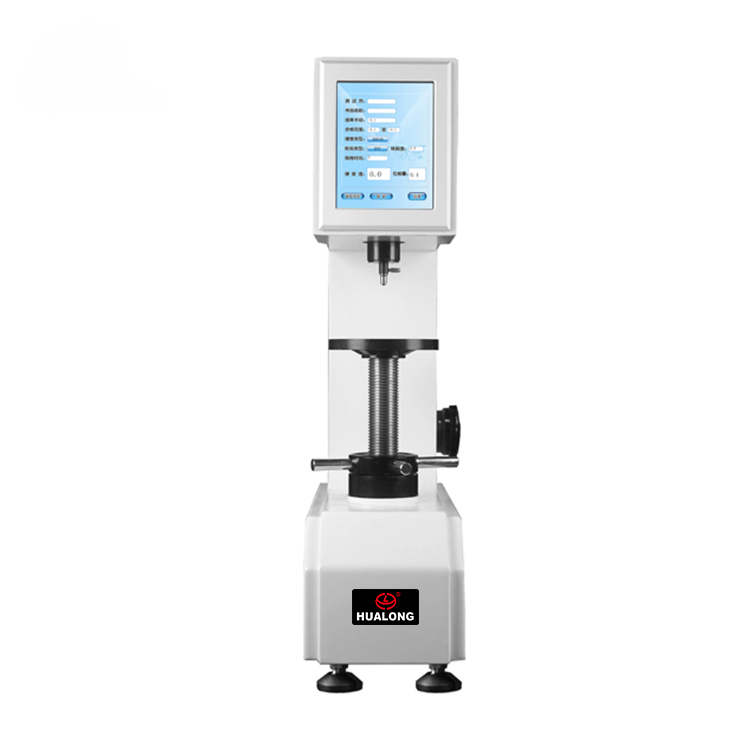

HLR-150DT-P DIGITAL DISPLAY PLASTIC ROCKWELL HARDNESS TESTER

1. Product introduction

1. Electric loading, high precision sensor.

2. Touch screen, easy to operate.

3. According to the standard hardness block, each hardness scale is divided into high, middle and low sections for automatic correction.

4. Built-in convex cylinder hardness value corrected.

5. Powerful data processing function, including: HR, HB, HV and other hardness system conversion, set the qualified range, exceed the automatic alarm, can input tester, sample name and other information.

6. Test results can be stored, processed and printed automatically

2. Technical parameters

Model	THR-150DT-P
Initial test force	10kgf(98.07N)
Total test force	60kgf(588N) 100kgf(980N) 150kgf(1471N)
Rockwell hardness scale	HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK、 HRL、HRM、HRR、HRP、HRS、HRV
Measurement range	HRE:70-100 HRL:100-120 HRM:85-110 HRR:114-125
Dwell time	0-99s
Hardness resolution	0.1HR
Test force accuracy	＜1.0%
Data output	LCD display
Touch screen	8 inch
Data storage	Can save 20 different kinds of results, built-in printer and RS-232
Carried standard	GB/T230.2, GB/T3398.2, JB/T7409
Max height of specimen	200mm
The distance from indenter center to the wall	200mm
Dimension	560×200×800mm
Weight	70kg
Power	AC220+5%,50～60Hz

3. Operation interface

4. Standard accessories

Item	Quantity	Item	Quantity
Printing paper, touch pen	Each 1	Large, medium, V shaped test table	Each 1
Ball indenter(φ3.175、6.35、12.7mm)	3	Hardness block（HRE,HRL,HRM,HRR）	4
Level	1	Nylon universal sole	4
Power cord	1	Dust cover	1
Product qualification certificate, warranty card	1	Instructions	1
