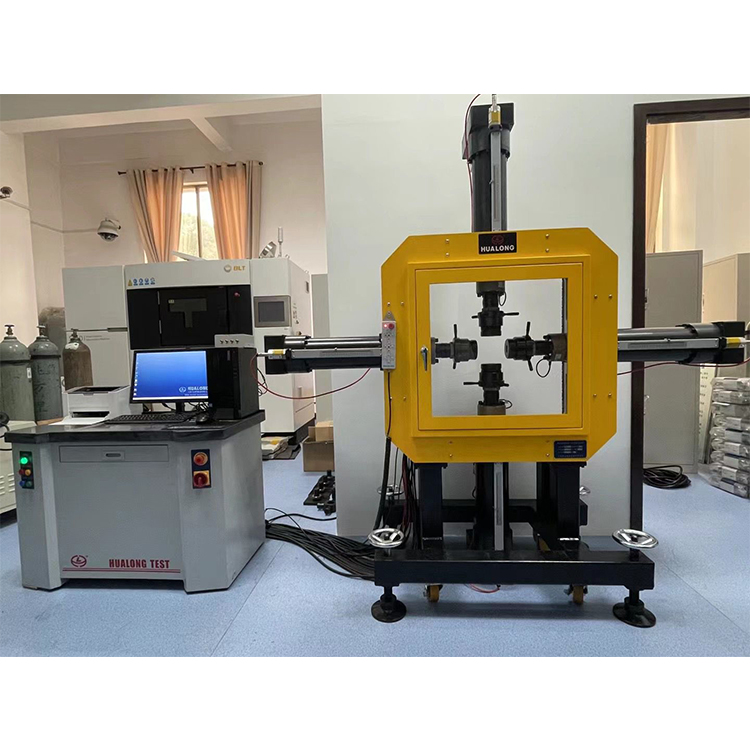

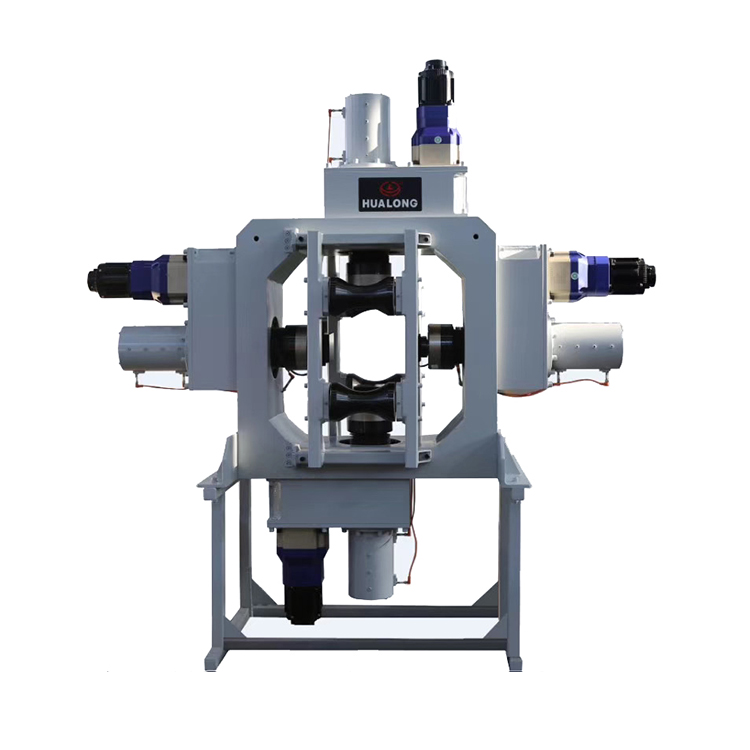

Home>>PRODUCTS >> Testing Machine >> Special Testing Machine >> Biaxial and Triaxial Testing Machine
|
HLS-50 |
HLS-100 |
HLS-200 |
HLS-300 |
Testing load (KN) |
50 |
100 |
300 |
600 |
Testing range |
0.4%-10% |
|||
Speed(mm/min) |
0.01-500 |
|||
Accuracy class |
0.5 Class |
|||
Accuracy of displacement(mm/min) |
Speed < 0.5, setting as within +-0.5%, speed>0.5, setting as within +-0.2% |
|||
Displacement range(mm) |
0-200 |
|||
Displacement resolution (mm) |
<=0.001 |
|||
Centering accuracy (mm) |
Center positioning offset range < = 0.05 |
|||
Displacement synchronous mode |
The displacement of the electric cylinder in four directions is synchronous, or it may be synchronized in pairs |
|||
The deformation measurement
|
Strain gauge measuring system and corresponding static strain gauge (optional) |
|||
Environmental device |
Low temperature environment box -196 degrees, high temperature box room temperature +10 to 350 degrees, (optional) |
|||
Dimension(mm) |
3000*3000*500 |
3170*3150*600 |
3200*3200*600 |
3300*3300*600 |
