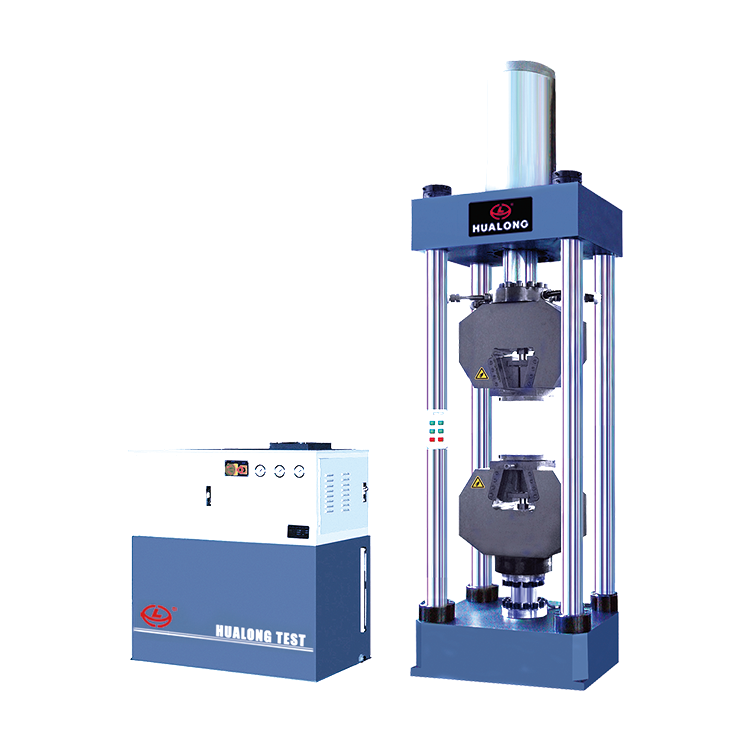

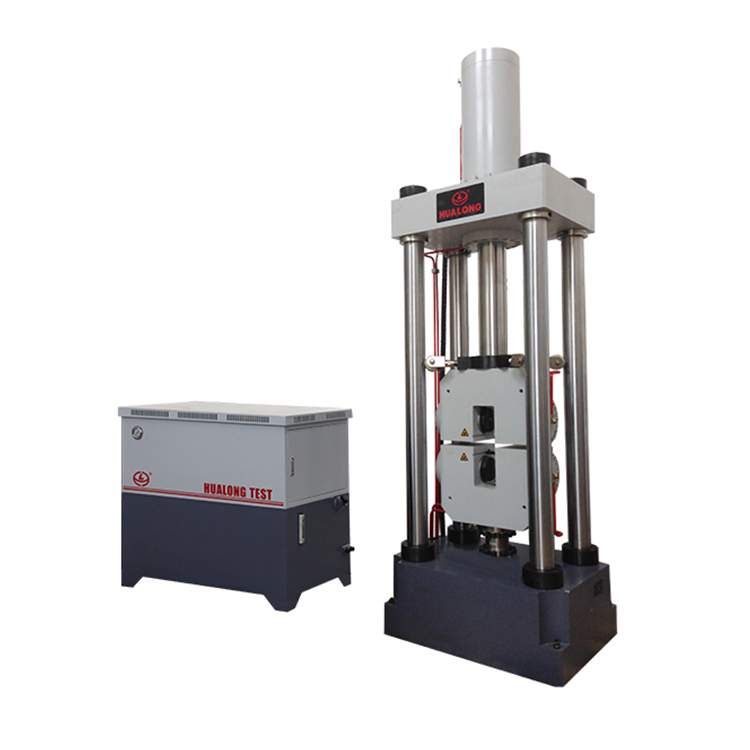

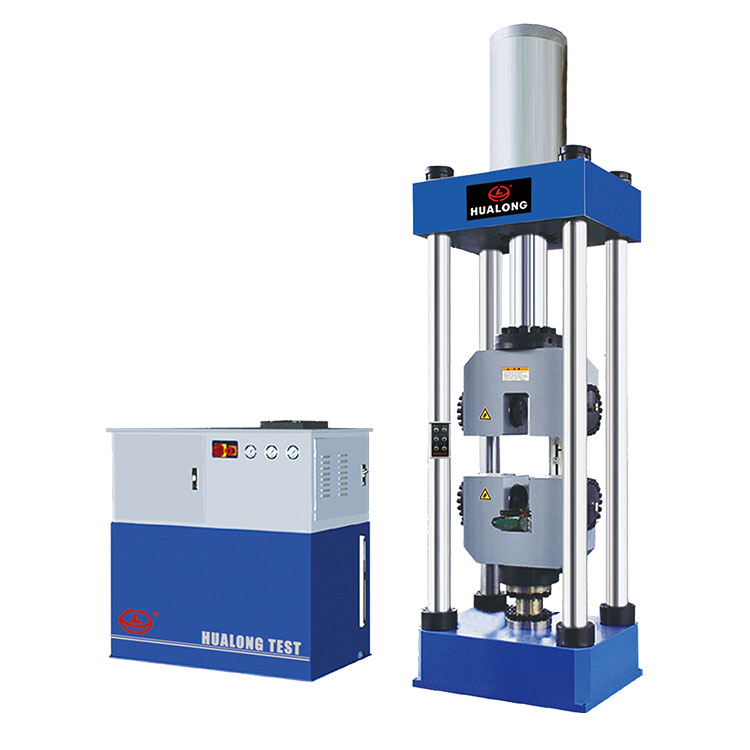

HLY-1000KN /2000KN /3000KN Electro-hydraulic Single Space Servo Universal Testing Machine with Wedge Grips

Application

HLY Series Universal Testing Machines is designed with single workspace. It can do tension, compression, bending and shearing tests. Force measurement is through load cell. With long travel actuator stroke, it is suitable to test standard specimens, long length specimens, and specimens with large elongation.

Standards

Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN10002-2, BS1610, DIN 51221.

Strain measurement meets or exceeds the following standard: ASTM E83, ISO 9513, BS3846, EN10002-4

Also conform to some other standards: ASTM E8, ASTM A370, ASTM 615, ISO 6892-1, ISO 146303, ISO 156301, BS 4449.

Specifications

Model	HLY-1000/2000/3000
Max. Load capacity(kN)	1000/2000/3000
Structure	Four column
Accuracy of testing load(%)	±0.5
Accuracy of deformation(%)	±0.5
Test Range	1%-100%
Deformation measurement range	1%-100%
Test Force Loading Rate Range	0.02%-2%FS/s
Host structure	4
Clamping method	Hydraulic Automatic Clamp With Wedge
Weight(kg)	11500
