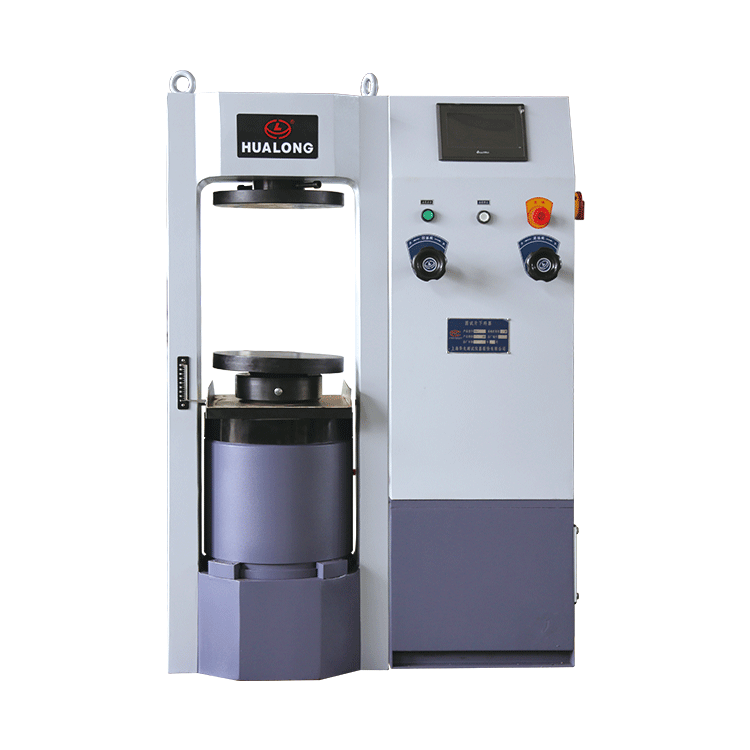

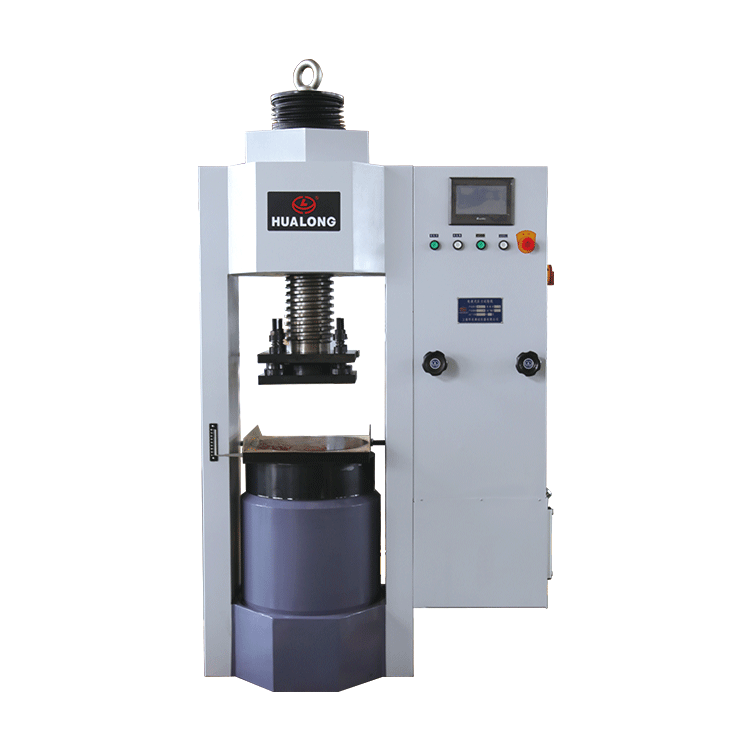

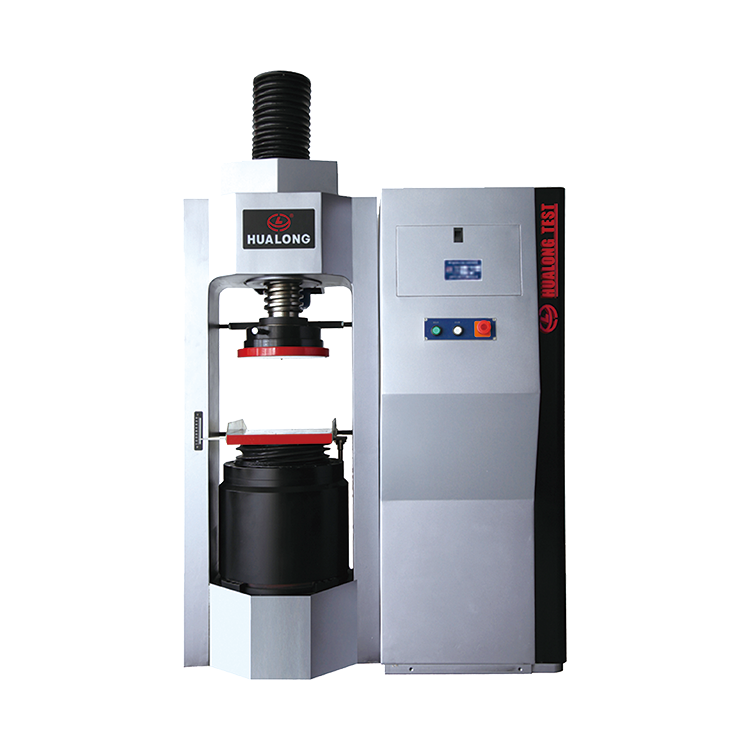

HLCTM-2000/3000D Hydraulic Compression Testing Machine

Application:

HUALONG HLCTM Series Hydraulic Compression Testing Machine is designed to meet the need for a simple, economic and reliable means of compressive test on Containers, Masonry units, Concrete cubes &cylinders, hollow blocks and various other materials in accordance with European/British standard, which requires a ball-seated upper platen, self-centering lower platens on EN machines.
The machine is electro-hydraulically operated, the machine comprises of Hydraulic Power Pack, PC &Software, Operating Switches, Load Control Valves.

Standards:

EN 12504-1，EN 12390-3，ASTM C39

Main Specification:

Model and specification	HLCTM-10-300D	HLCTM-300D	HLCTM-600D	HLCTM-2000D	HLCTM-2000C	HLCTM-3000C
Test force range	4%～100%F.S(Full scale without splitting)
Test force accuracy	±1%
Compression space (mm)	255	230	270	330	300
Size of upper plates (mm)	Φ85	Φ110	140*140	Φ300	Φ300	300*300
Size of lower plates (mm)	Φ98	Φ118	140*140	Φ300	320*320	300*400
Distancebetweencolumns (mm)	248	300	340	360	450	470
Piston stroke(mm)	100			80
Dimension(loadframe) (mm)	600400720	8205001460	8205001560	9006001300	8207001920	10607502100
Power(kW)	0.5 AC380V±10%	1.1 AC380V±10%	1.5 AC380V±10%	0.75 AC380V±10%	2.25 AC380V±10%	3.75 AC380V±10%
Weight(kg)	180	580	650	1000	1400	2800
