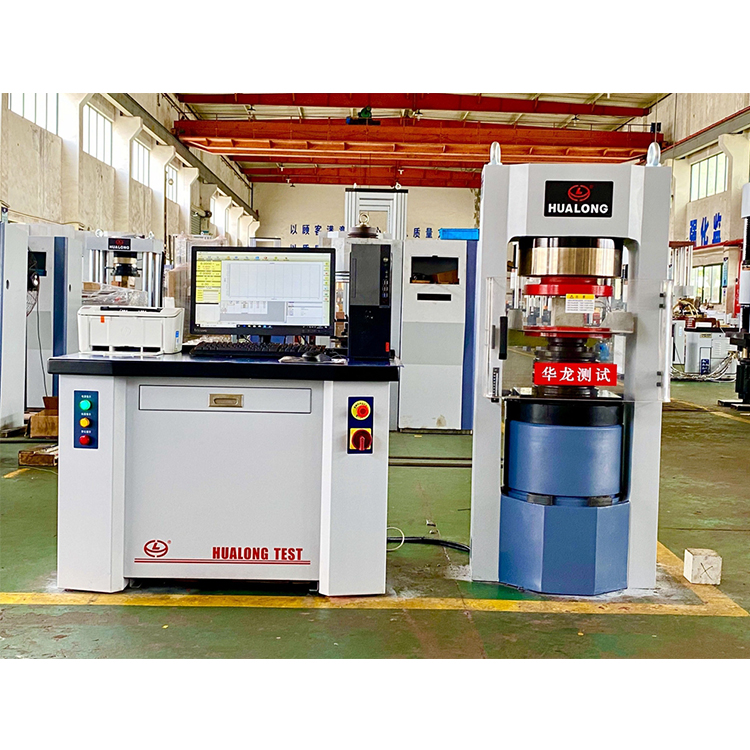

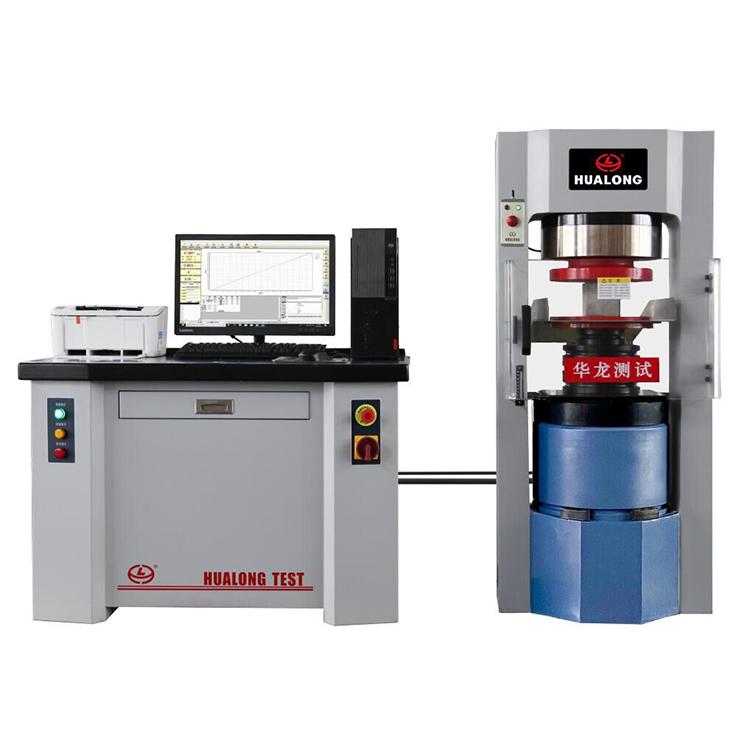

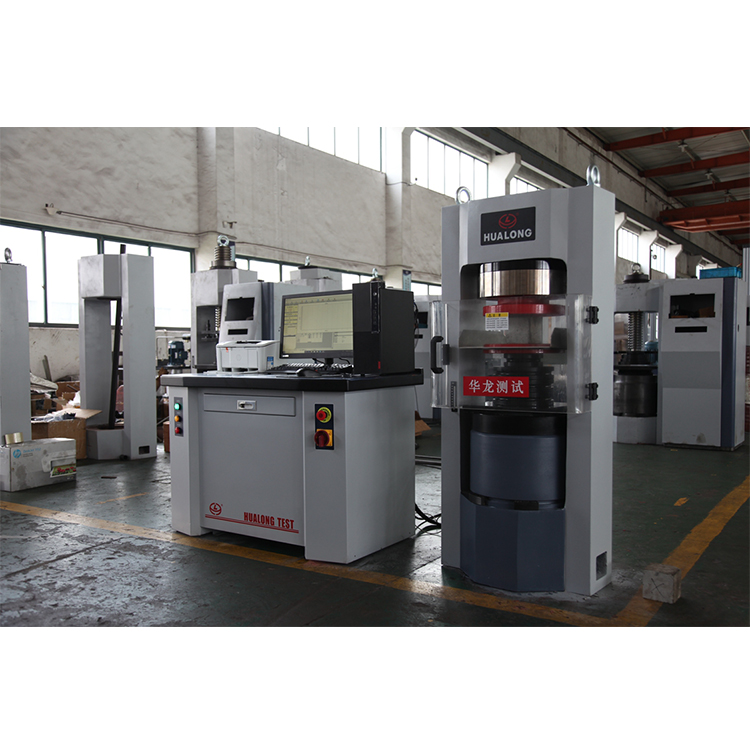

HLCTM-1000/1500/2000/3000KN High Capacity Compression Testing Machine

Application:

hualong HLCTM Series Hydraulic Compression Testing Machine is designed to meet the need fora simple, economic and reliable means of compressive test on Containers, Masonryunits, Concrete cubes &cylinders, hollow blocksand various other materials in accordance with European/British standard, which requires a ball-seated upper platen, self-centering lower platens on EN machines. The machine is electro-hydraulically operated, the machine comprises of Hydraulic Power Pack, PC&Software, Operating Switches, Load Control Valves.

Standards:

EN 12390-4: Testing hardened concrete. Compressive strength- Specification for Testing Machines.
UNE 83-304: Testing Equipment for concrete. Including aggregates and cement.
DIN 51220/51302: General requirements for materials testing machines.

Parameters:

Model	HLCTM-1000/1500/2000/3000
Load capacity(kN)	1000/1500/2000/3000
Test Accuracy	Class 0.5
Host Overall dimensions (Lx W x H)	650×500×1550;
Control cabinet (Lx W x H)	1200×680×750
Maximum vertical clearance of platens	320mm±3mm
Size of lower platen (Diameter*Thick)	Φ300 mm
Size of upper platen(Diameter*Thick)	Φ320 mm
Maximum stroke of the piston	120mm
Maximum speed of piston	30mm/min
Loading speed	20-50psi/s 0.14-0.34MPa/s
Noise	<62dB
Height of distance pieces:	Φ150×300mm / 150×150×150mm / 200×200×200m / preset
Weight	1800kg
Power supply: 3kW; three phase 380V + G 50Hz Custom power input available
