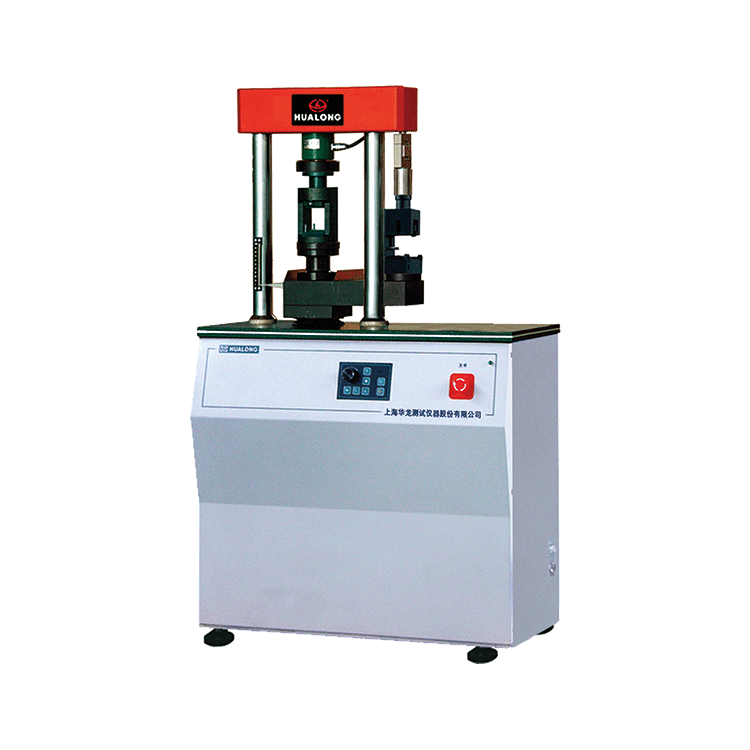

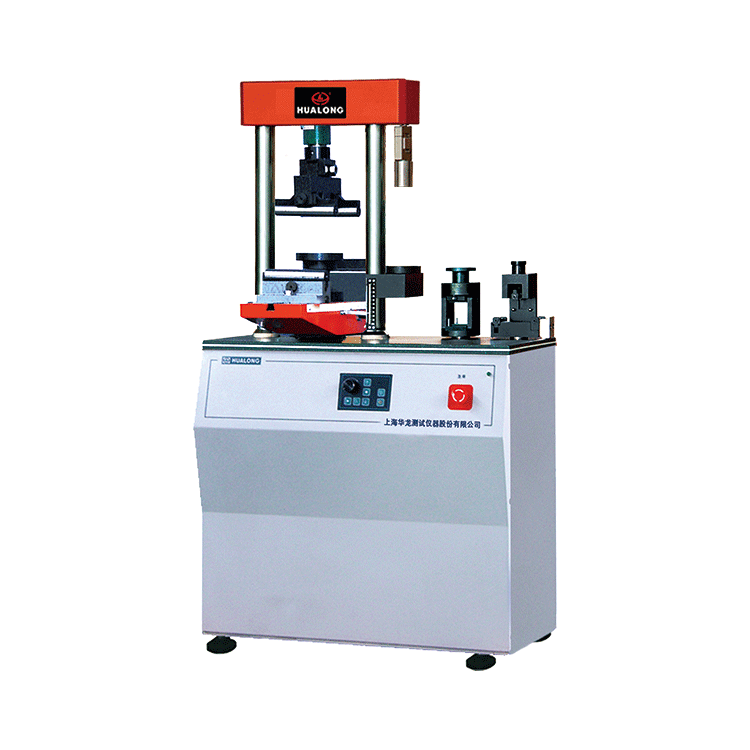

HLCTM-300/10C Electromechanical Compression Testing Machine

Application:

HUALONG HLCTM-C Series Electromechanical Compression Testing Machine is mainly used to determine of the compressive, flexural strength of cement mortar and flexural strength of concrete/stone prism.

Space adjusting & test processes could be controlled by the software and the test result could be transferred to the software for further analysis. It is the most advanced series in compressive testing machines. It is widely used in civil engineering areas, quality control department, universities and institutes as well as other areas and works for the mechanical performance analysis of architecture, building materials.

Standards:

ISO 679, DIN 1164,ASTM C348,ASTM C109 / C109M,BS EN 196-1,ASTM C880 / C880M,ASTM C170/C170M, EN12390-5 BS 1881:118, ASTM C78, C293, ASHTOT97

Technical Specifications:

Model		HLCTM-300C	HLCTM-300AC	HLCTM-300/10C	HLCTM-300/10AC
Load capacity	kN	300	300	300&10	300&10
Accuracy	%	CLASS 1 (ISO 7500-1)
Measuring range	%	2%~100%
Actuator stroke	mm	100
Speed range	mm/min	0.1-50
Dimensions	mm	10008001600	10008001600	10008001600	120010001600
Weight	kg	720	720	720	860
