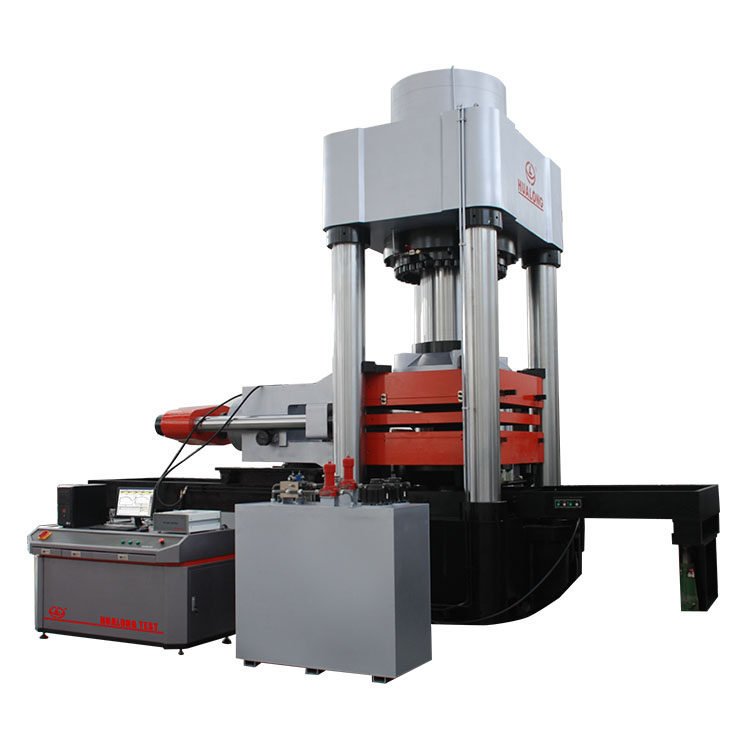

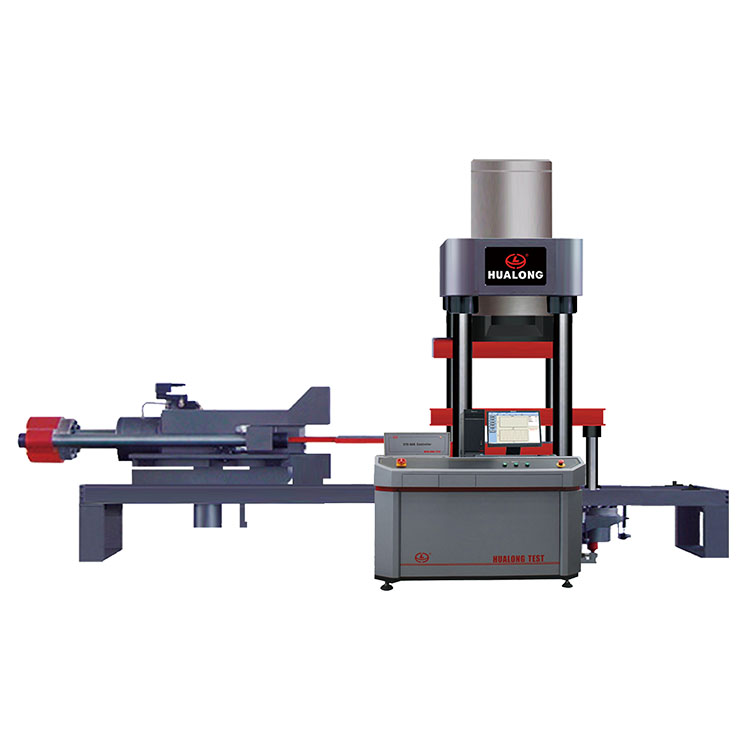

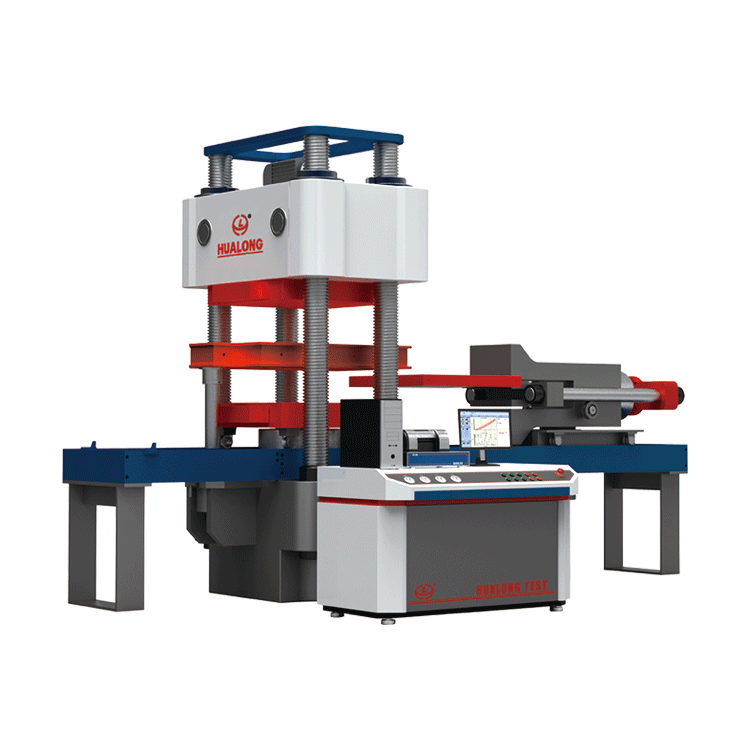

HUALONG YJW-30000kn SERIES Elastomeric Bearing Testing Machine

Application:

HUALONG YJW SERIES Elastomeric Bearing Testing Machine is mainly used to verify the mechanical properties of pot shape, spherical shape and pad shape bearings which are broadly used in highway, railway, bridge and buildings. It is capably of obtaining technical index of compressive modulus of elasticity, shearing modulus of elasticity, static shearing force, ultimate compressive strength, friction coefficient, rotation deformation, axial and lateral deformation under compression.

Specifications:

Model	YJW-5000	YJW-10000		YJW-20000	YJW-30000
Test Force Range(KN)	20-5000	40-10000		80-20000	120-30000
Test Force Accuracy (%)	Indication Value±1
Horizontal shear force(KN)	1000	2000	4000		6000
Horizontal Piston Stroke(mm)	180	250	250		300
Coner Push Force(KN)	300	600	1000		1000
Upright Deformation Measurement range(mm)	0-10(Resolution0.001mm)				0-20(Resolution0.001mm)
Radial Deformation Measurement range(mm)	0-10(Resolution0.001mm)				0-20(Resolution0.001mm)
Horizontal shearing Measurement range(mm)	0-150(Resolution0.001mm)				0-200(Resolution0.001mm)
Dimensions(mm)	510012003900	557518603660	860023005300		1052031205800
Power	10 .AC380V±10%	20 .AC380V±10%	10 .AC380V±10%		25.AC380V±10%
Gross Weight(kg)	15000	35000	90000		120000
