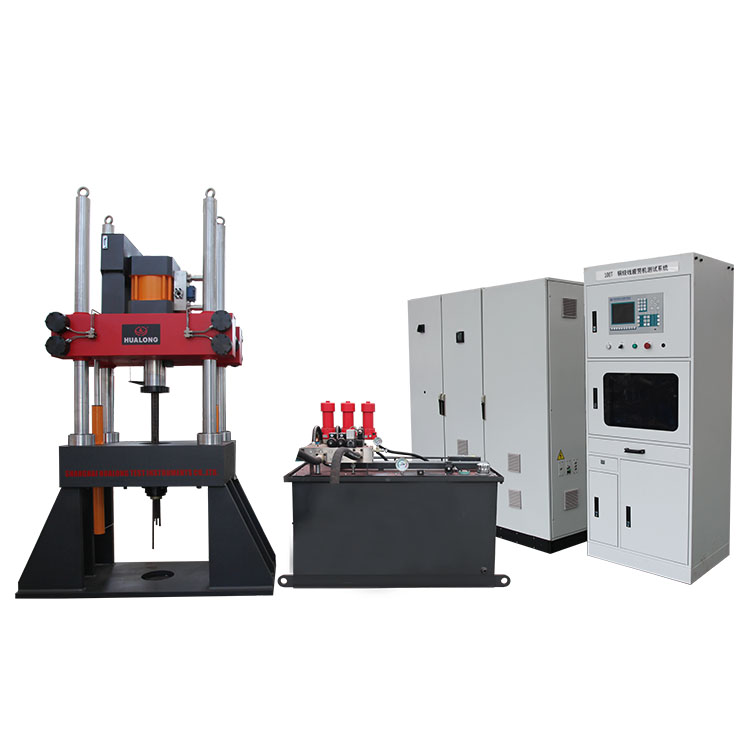

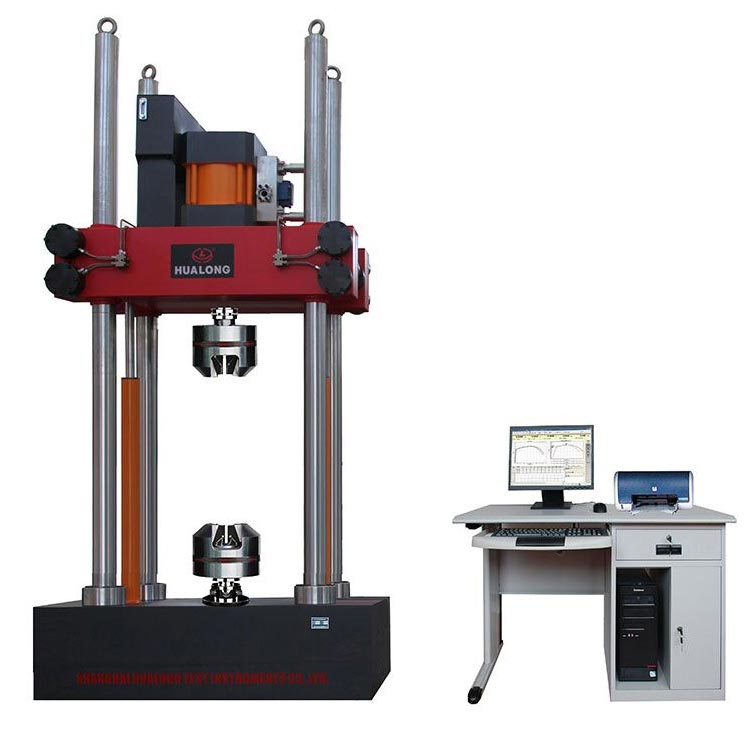

PWS-500KN/1000KN Electro-hydraulic Servo Fatigue Testing Machine

PWS-500KN/1000KN Electro-hydraulic Servo Fatigue Testing Machine
PWS-500KN/1000KN Electro-hydraulic Servo Fatigue Testing Machine
PWS-500KN/1000KN Electro-hydraulic Servo Fatigue Testing Machine
PWS-500KN/1000KN Electro-hydraulic Servo Fatigue Testing Machine
PWS-500KN/1000KN Electro-hydraulic Servo Fatigue Testing Machine
PWS-500KN/1000KN Electro-hydraulic Servo Fatigue Testing Machine
PWS-500KN/1000KN Electro-hydraulic Servo Fatigue Testing Machine
PWS-500KN/1000KN Electro-hydraulic Servo Fatigue Testing Machine
PWS-500KN/1000KN Electro-hydraulic Servo Fatigue Testing Machine

Application

This series computer Control Electro-hydraulic Servo Fatigue Testing Machine is ainly used to detect a variety of metals, non-metallic materials and small movable member, the static mechanical properties test. It can do tensile, compression, bending, low cycle and high cycle fatigue, crack growth, fracture mechanics test under sine, triangle, square wave, trapezoidal wave, random wave, combination waveform.

This Test machine is flexible, moving beam down, locking the sample holder by button operations, the use of advanced hydraulic servo drive technology loaded, high precision and high resolution dynamic load sensor magnetostrictive displacement sensor specimens force values and displacement.


Standards

1.1 GB / T2611-2007《Tester General technical requirements》

1.2 GB / T16826-2008《Hydraulic servo universal testing machine》

1.3 GB 3075《Axial fatigue testing metal》

1.4 JB / T9379-2002《Tension and compression fatigue test machine technical conditions》

GB / T228-2010《Metallic materials at room temperature tensile test method》



Specifications

Model

PWS-500

PWS-1000

Column

with 4 columns

Load Capacity(kN)


Static


±500KN

±1000KN

Dynamic

±450KN

±850KN

Measurement


Accuracy


Load


±1.0% of Reading

Displacement

±2% FS of Each File

Deformation

±2% of Reading

Range Of Frequency


0.01~10Hz (Cancustomized)

Dsplacement(mm)

±75

±50

Column diameter(mm)

110

130

Effective width between Columns(mm)


780×480

1170*1000

Test space(mm)


700

1000

Hydraulic station flow (L/MIN)

60

300

Power supply

380V, 50hz
