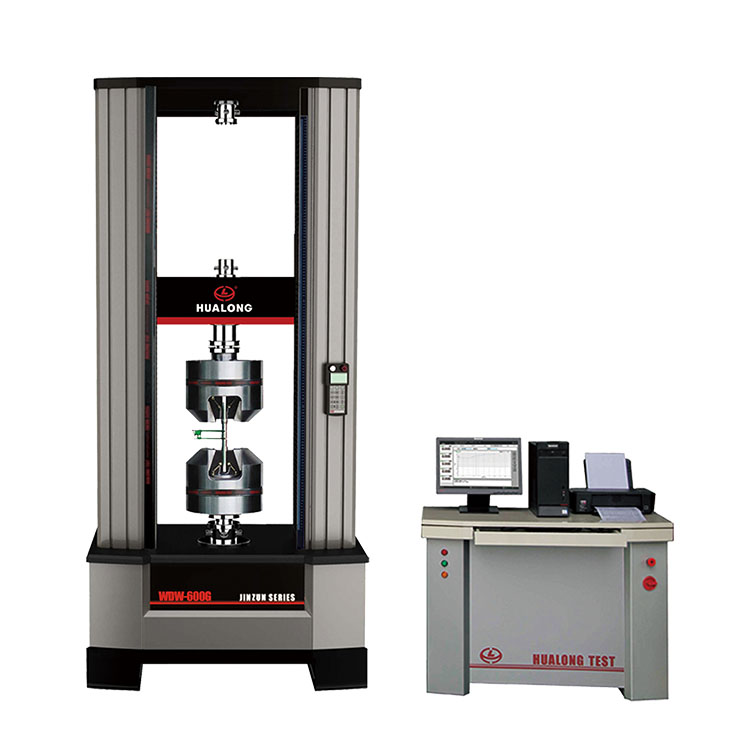

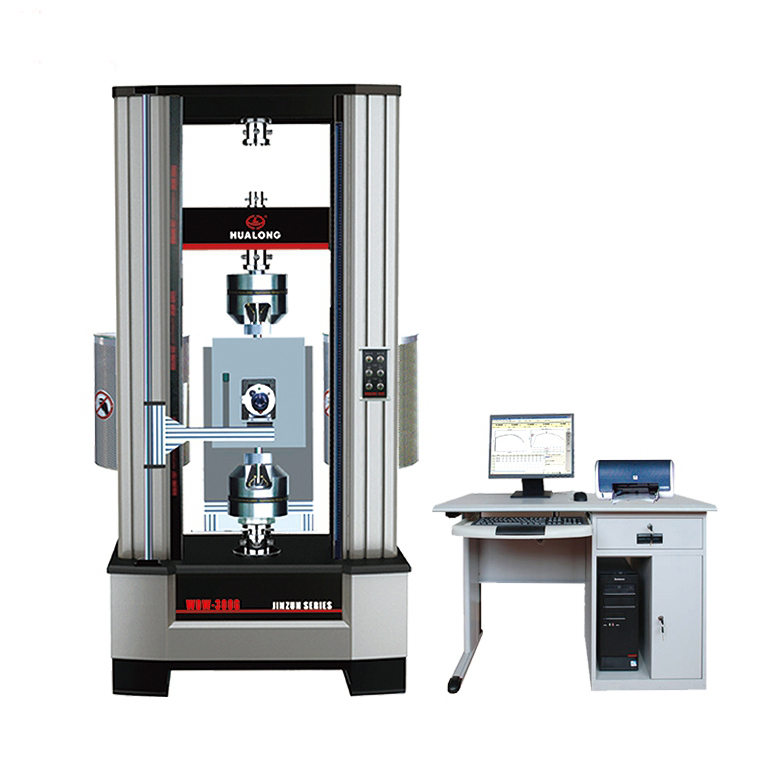

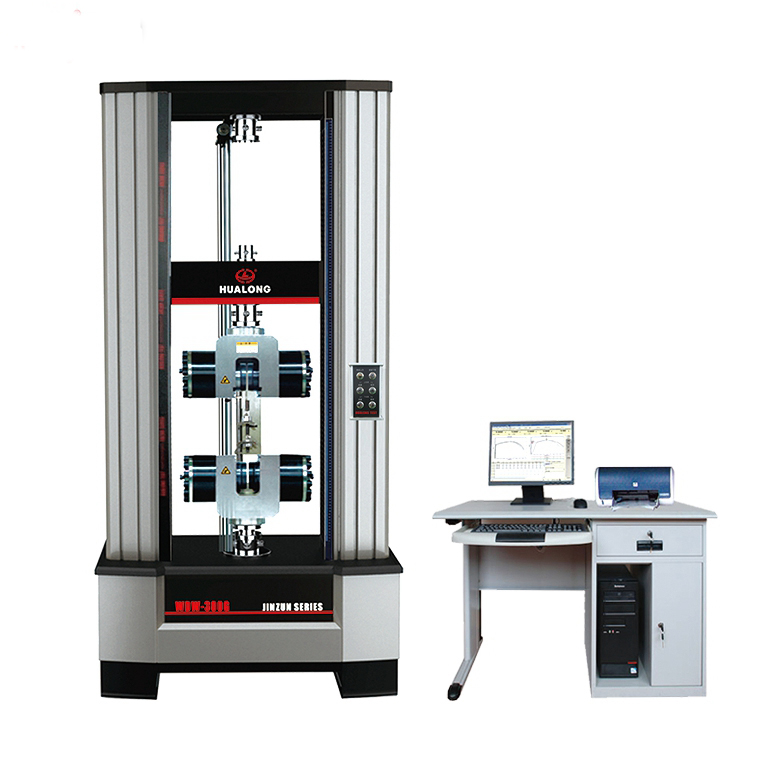

HLE-H 30KN/50KN/100KN/300kN High And Low Temperature Tensile Testing Machine

Application

It is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; Petroleum &Chemical; other industries.

Specificatios

Model	HLE-10/20	WDW-30/50	WDW-100	WDW-200/300
Max. Load(kN)	10/20	30,50	100	200,300
Control method	Computer control
Load accuracy	Class 1,Class 0.5
Load range	2%～100%F·S,0.2%～100%F·S
Resolution of displacement	0.01mm
Test speed(mm/min)	0.05-1000	0.05-500	0.05-500	0.05-200/500
Tensile space(mm)	800	700	700	550
Compression space(mm)	800	700	700	550
Test width	400	500	550	600
Temperature ranage	60～150/300/350℃(chamber)
Power supply	AC220V±10%,50Hz/60Hz(can be customized)
Grips	according to customer's requirement
