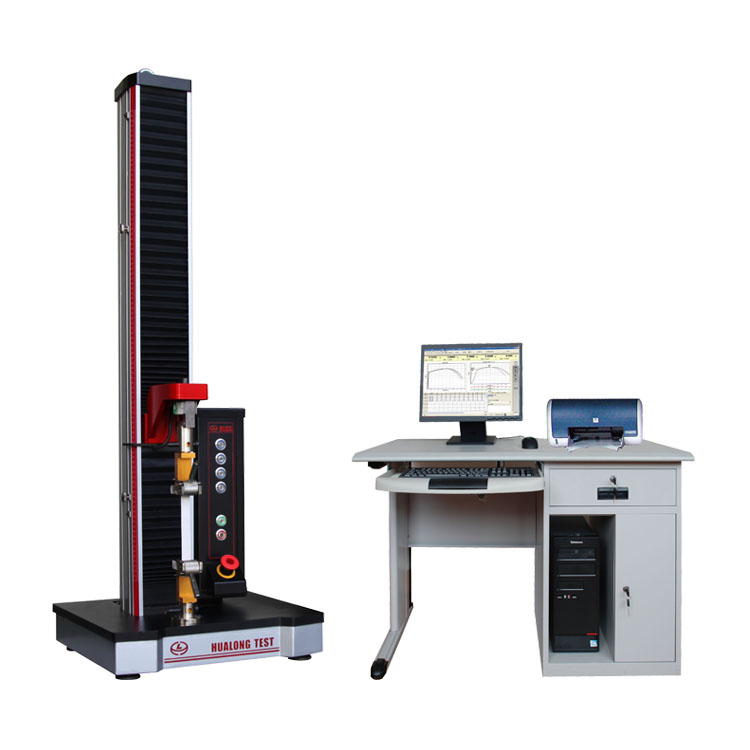

HUALONG HLE Series (Single Column) electromechanical testing machine offer small and static load force. Performing tensile, compression, shear, flexure, peel, tear, cyclic and bend tests. This machines are commonly used for medical devices and biomaterials, textiles, elastomers, food, small components and microelectronics, wire, paper, and plastic film. It can be equipped with a variety of accessories including: grips, fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications. The stiffness and alignment of the load frames ensures precise alignment when testing everything from biomaterials to wire or plastic film. The rigid mechanical design guarantees the best possible conditions for repeatable test conditions and reliable results.
Standards:
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002,
GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
Specifications:
Model |
0.05C |
0.1C |
0.2C |
0.5C |
1C |
2C |
2.5C |
5C |
Load capacity (N) |
50 |
100 |
200 |
500 |
1000 |
2000 |
2500 |
5000 |
Load resolution |
Capacity/500,000 (fully auto scaling of single measurement range) |
|||||||
Accuracy |
Class 0.5 |
|||||||
Measurement range |
0.2%-100% of Full scale |
|||||||
Displacement resolution (mm) |
0.00004 |
|||||||
Speed setting range (mm/min) |
0.001-1000 |
|||||||
Testing space (mm) |
40-900 (excluding grips) |
|||||||
Dimensions of load frame (mm) |
460×510×1271 |
|||||||
Power |
AC220V ±10% 50Hz 400W |
|||||||
Gross Weight |
100kg |
