High Temperature Capacitive Extensometer 3648 (1200˚С/1600˚С)

1. Introduction:

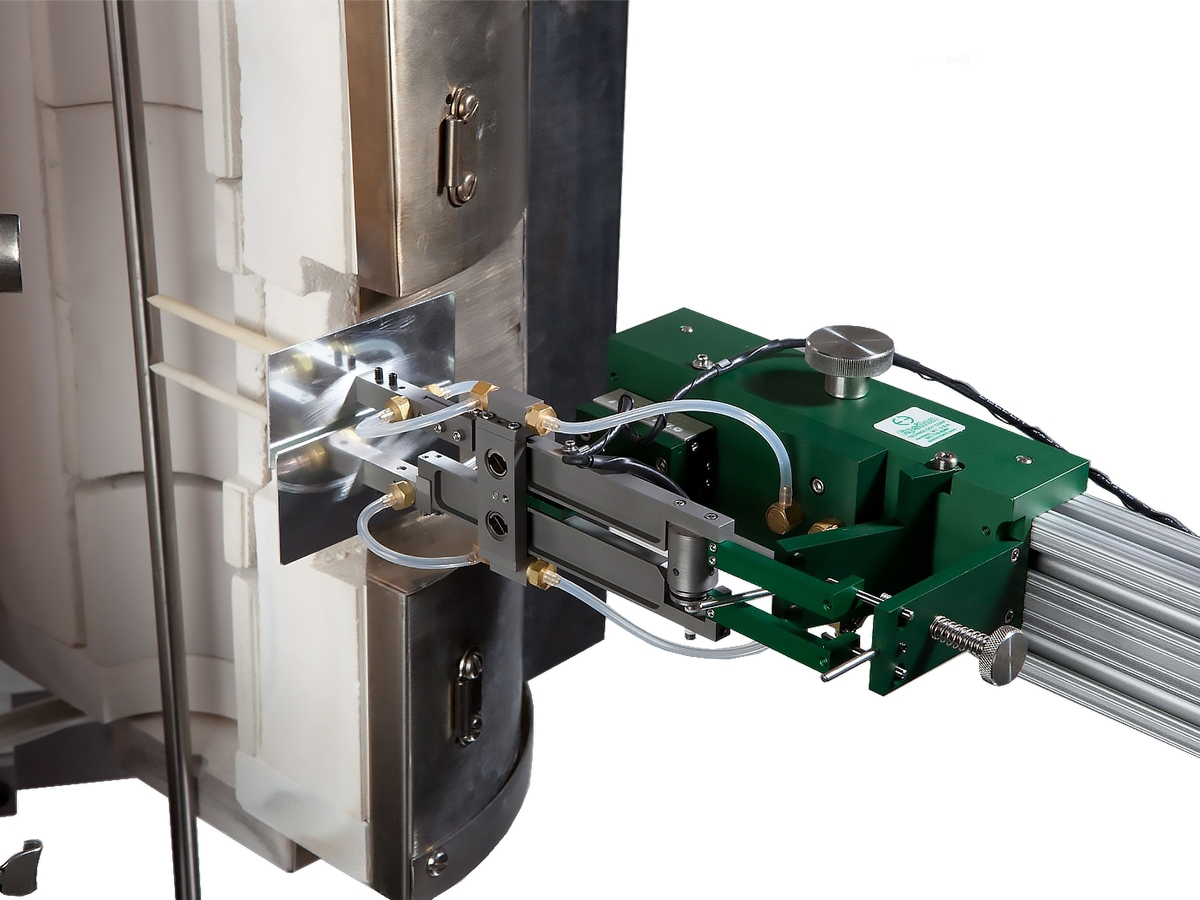

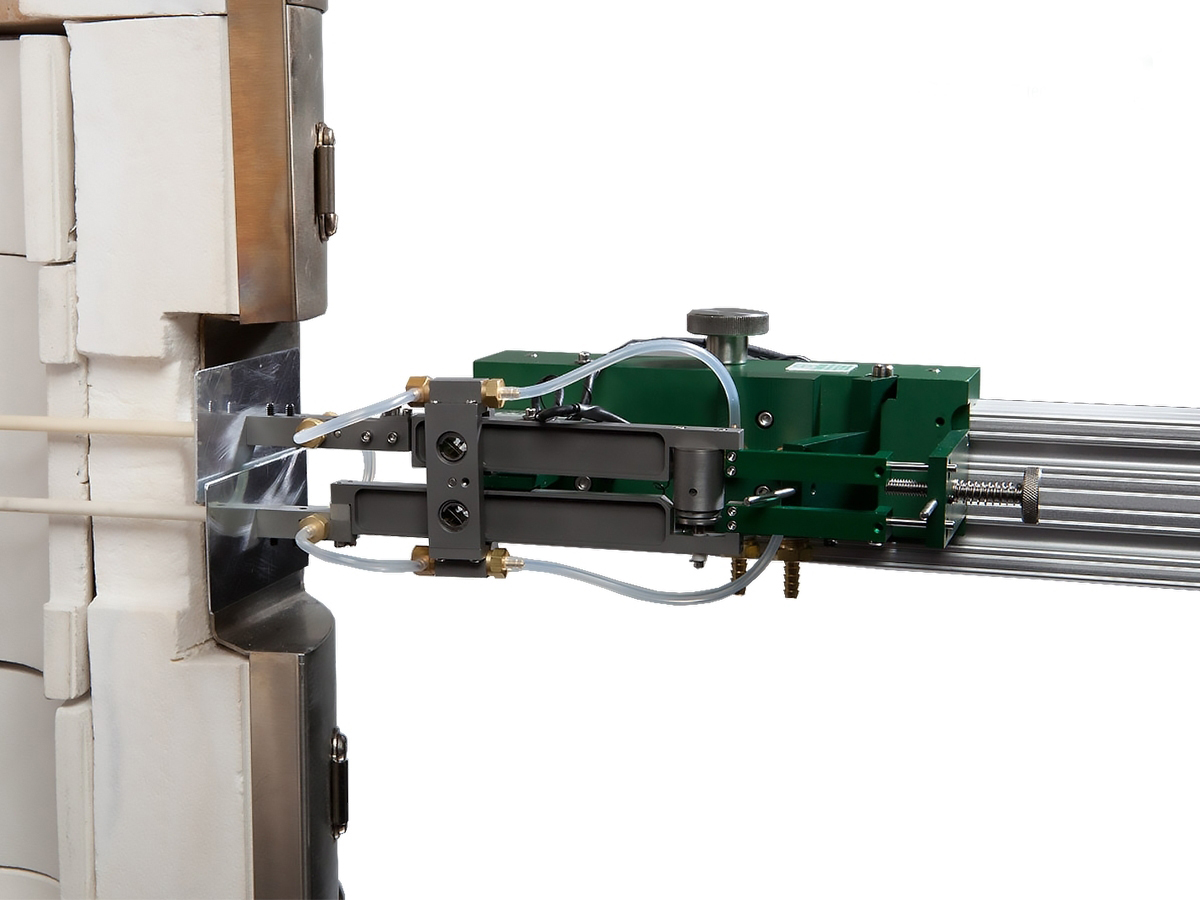

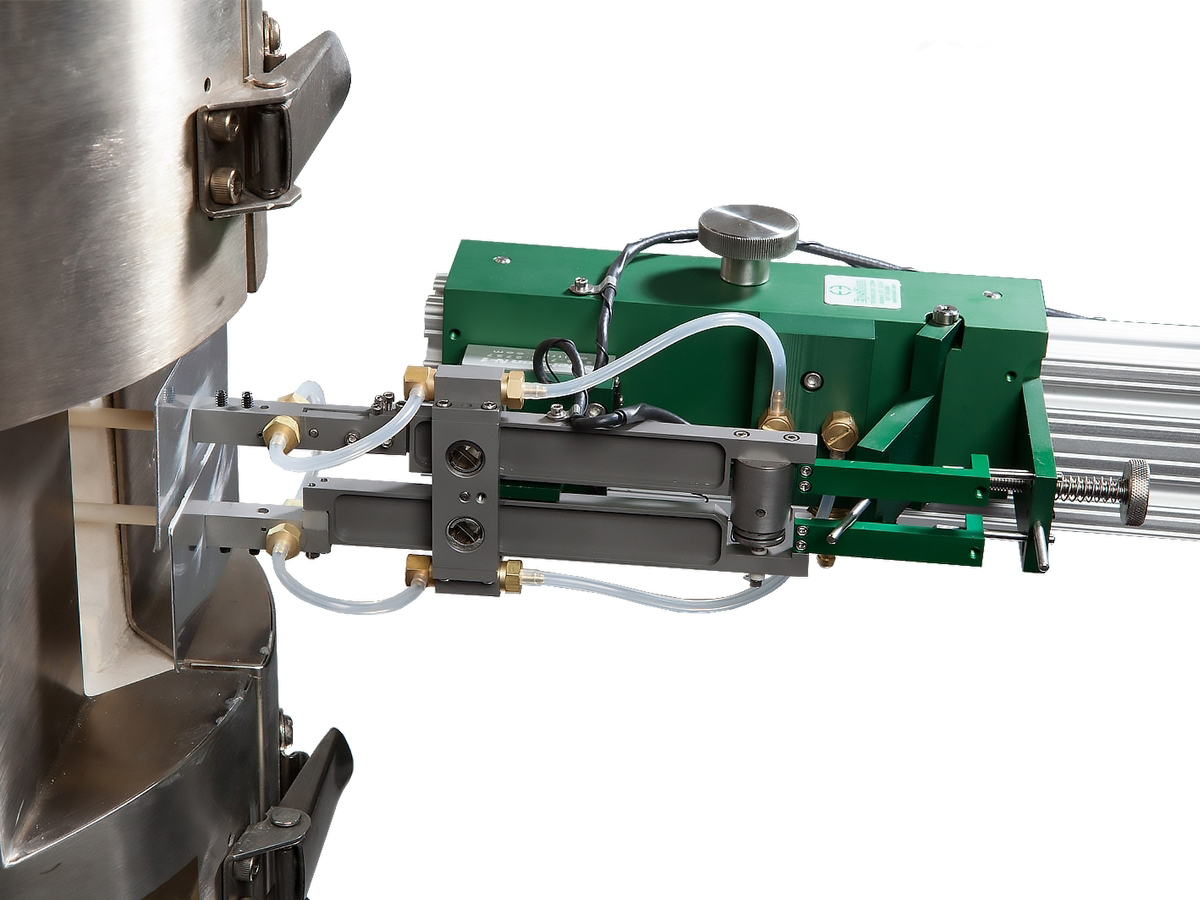

These extensometers use a high temperature capacitive probe coupled with an innovative design to achieve high strain measurement accuracy. They are mounted on a sliding bracket (included) that can be attached to the test machine's base frame.
These extensometers use high temperature capacitive probes in combination with an innovative design.
The standard version of the extensometer comes with alumina rods. The remaining modifications are equipped with alpha-class silicon carbide rods. The rods are custom made to the length required for your oven.

2. Specification:

Modification	Epsilon 3648 (1200˚C/1600˚C)
Clamping force, g	150 (adjustable)
Output, mV/V	2-4
Nonlinearity	≤ 0.15% of full scale
Operating temperature range, ˚С	1200 standard, 1600 optional
