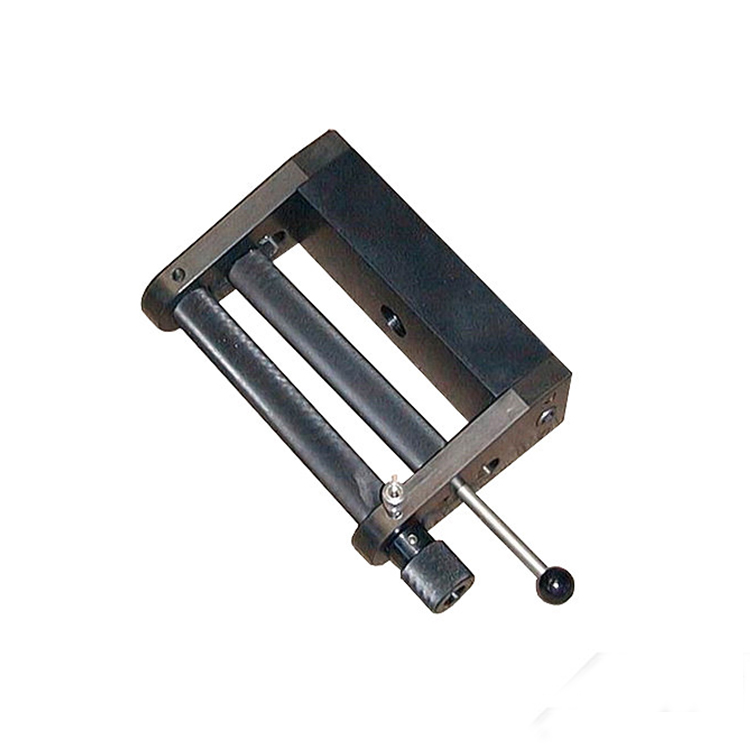

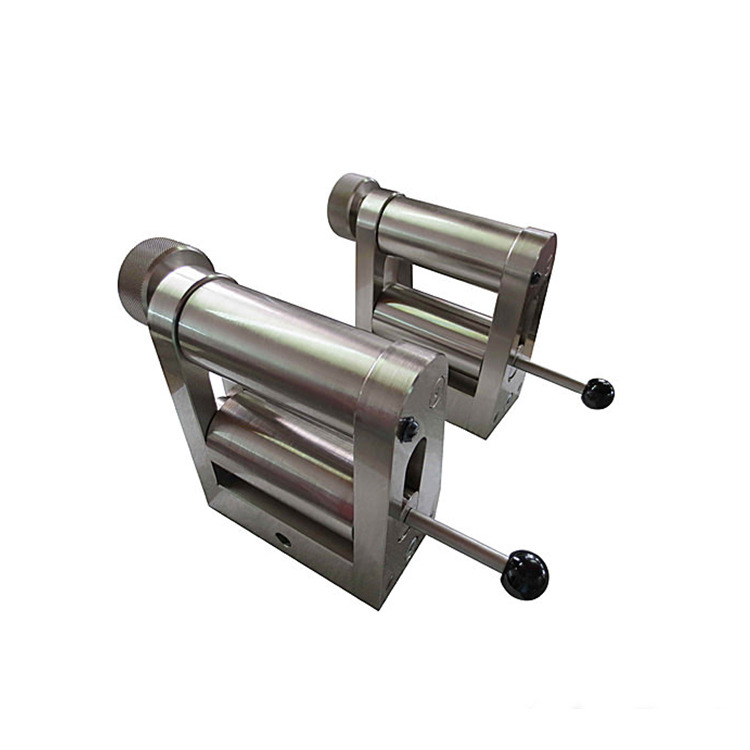

Roller Capture Grips 110mm
1. Introduction:
The roller-type gripper is designed to fasten and hold nylon tapes, tows, ropes made of textiles, rubber, polymers and other materials up to 110 mm wide during tensile tests.
The sample is clamped between rollers in the form of a loop.
Clamping shafts are available in various surface finishes: smooth, serrated, diamond-coated.
-GOST 16218.9 - elastic textile products: ribbons, braid, cord, etc.;
-GOST R 41.16, GOST 26879 - seat belts.
2. Specification:
The roller-type gripper is designed to fasten and hold nylon tapes, tows, ropes made of textiles, rubber, polymers and other materials up to 110 mm wide during tensile tests.
The sample is clamped between rollers in the form of a loop.
Clamping shafts are available in various surface finishes: smooth, serrated, diamond-coated.
-GOST 16218.9 - elastic textile products: ribbons, braid, cord, etc.;
-GOST R 41.16, GOST 26879 - seat belts.
2. Specification:
|
Sample width, mm |
No more than 110 |
|
Movable shaft diameter, mm |
55; 30 |
|
Mounting hole diameter, mm |
31.78 |
|
Overall dimensions, mm |
271.5×180 |
