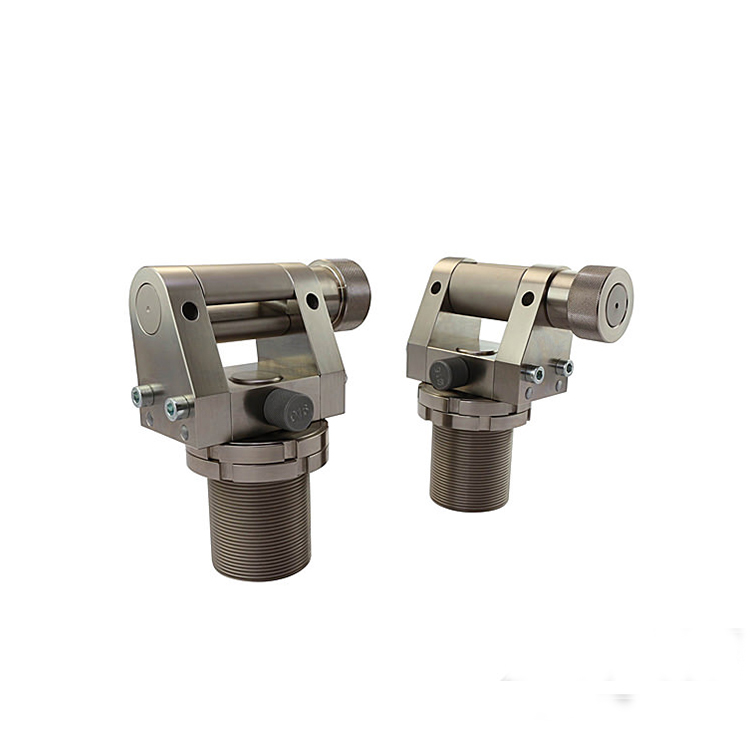

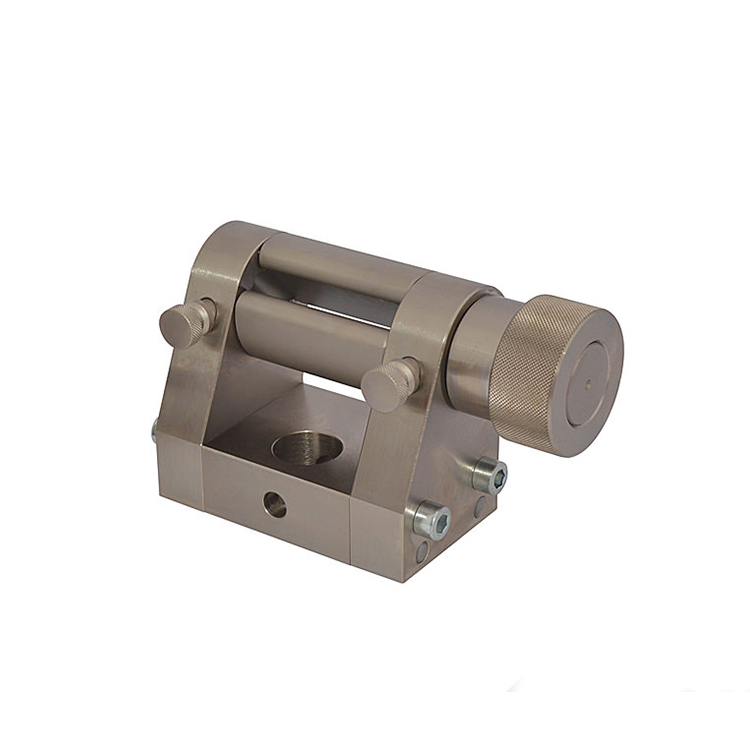

Roller Grips 80-120mm

1. Introduction:
The roller-type gripper is designed to fix and hold soft, flexible samples: belts, tapes made of textiles, rubber, polymers and other materials with a width of 80 to 120 mm during tensile tests with a load force of up to 150 kN.
Clamping jaws (rollers) are in the form of a long cylinder with a slot. Depending on the coefficient of friction, the sample can be wound one or more times. Clamping force is generated by self-clamping during repeated winding.
-GOST 16218.9 - elastic textile products: ribbons, braid, cord, medical bandage, etc.;
-GOST R 41.16, GOST 26879 - seat belts.

2. Specification:

Options	HLV-20	HLV-50	HLV-100	HLV-100	HLV-100	HLV-150
Max. tensile load, kN	twenty	fifty	100		100	150
Jaw diameter, mm	thirty	40	60		60	80
Sample width, no more than, mm	80	80	80	100	120	120
Sample thickness, no more than, mm	5	7	eleven		eleven	eleven
Sample length, not less than, mm	460	600	910		910	1160
Mounting hole diameter*, mm	15.9	31.8	40		40	40
Overall dimensions, mm	158×101×52	181×100×78	206×123×87		247×123×87	266×160×119
Note: * - other sizes are possible according to the customer's specifications
