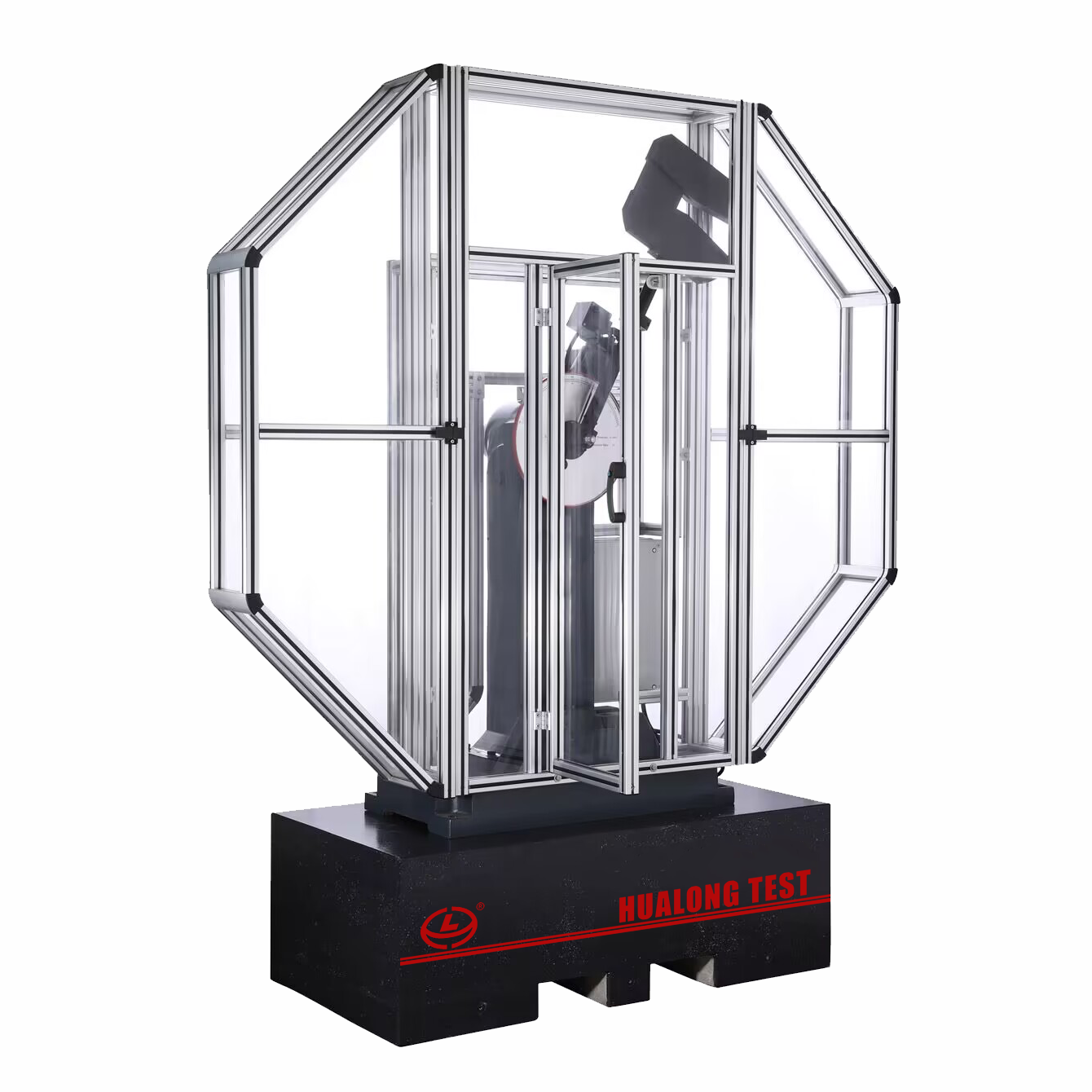

HL-CBD150/300/500 Series B Type Pneumatic Impact Testing Machine

1. Functions:
This machine is used for measuring the Charpy impact resistance of metal and other materials.which meets the requirements for CE marking and standard ISO 13849.

2. Standards:
ISO 148-1 -Metallic materials - CHARPY pendulum impact test. JIS Z 2242 -Method for CHARPY pendulum impact test of metallic materials. EN 10045-1 -Metallic materials-CHARPY impact test. ASTM E23 (CHARPY) -Standard test method for notched bar impact testing of metallic materials.

3. Specification:

Model	HL-CBD150	HL-CBD300	HL-CBD500
Max. Impact Energy (J)	150	300	500
Pendulum torque	80.38N.m	160.77N.m	267.95N.m
Overall Weight	1000kg(2205 lbs)
Power	380±10% VAC, 3 Phase, 50/60 Hz, 2kW 10A
Round angle of the jaw	R1-1.5 mm
Specimen dimensions	55×10×10, 55×10×7.5, 55×10×5
Support span	40 mm
