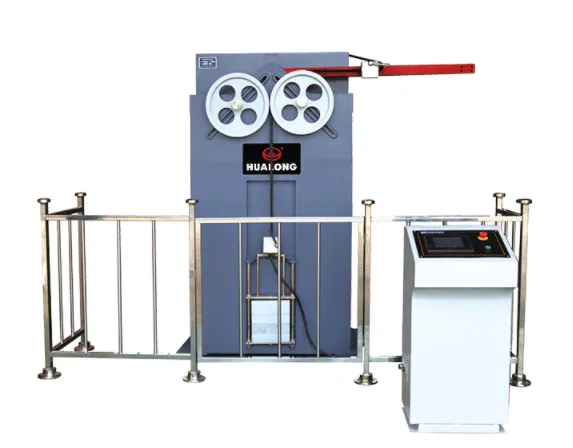

GWQ-1000 Optical Fiber Cable Repeated Bending Testing Machine Calibration Complete

HUALONG GWQ-1000 Series Optical Fiber Cable Repeated Bending Testing Machine is intended to establish the ability of a fiber optic cable to withstand repeated bending.

Can meet the standard:  IEC 60794-1-2-E6

Power supply installation

Ø While delivering from the factory, the power cord has been connected to the three-phase power plug with capability of 16A. If the re-installation is required, the user shall distinct the live wire and zero line. In order to avoid accidents, it is suggested that the user shall connect the ground wire for the equipment.

Overview

Sample

The sample is a representative cable length sufficient to carry out the specified test.

Apparatus

The apparatus allows a cable sample to be bent backwards and forwards through at an angle of 180°, the two extreme positions making an angle of 90°on both sides of vertical, while the sample is subjected to a tensile load.
