ASTM D6641 ASTM D3039 Composite Material Testing Machine

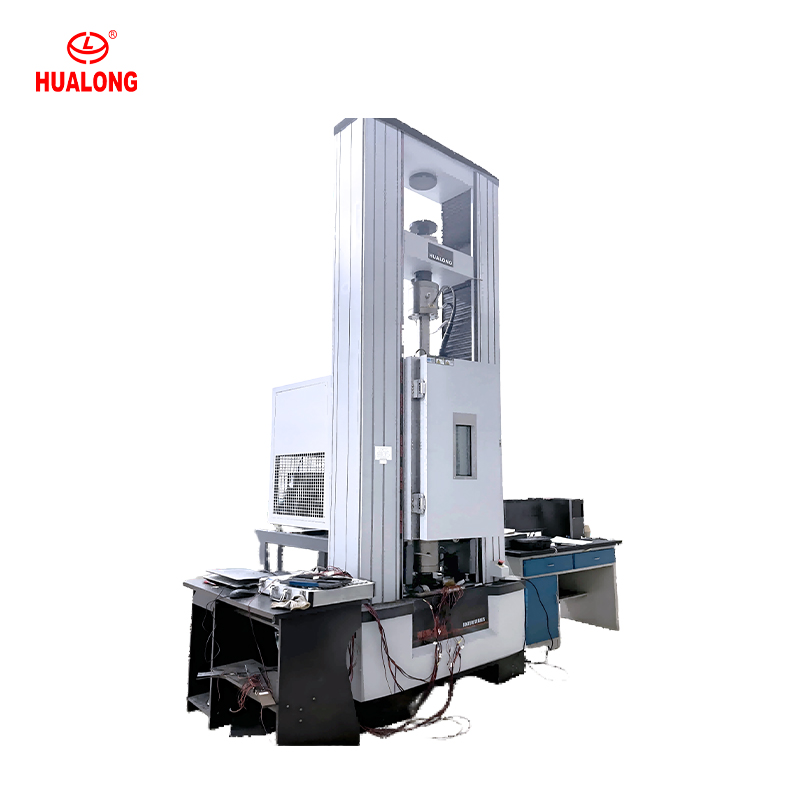

Composite Material Testing Machine (Floor-standing Type 100kN/300kN) - HLECF Series

Product Features: The HLE-CF series D-type high-capacity floor-standing double-column gantry-type Universal Testing Machine for composite materials is mainly used for testing the mechanical properties of polymer-based composites, metal-based composites, and ceramic-based composites at high and low temperatures. The equipment adopts a modular platform configuration; the main unit can be equipped with different fixtures, environmental simulation Accessories, and deformation measurement accessories to complete various types of tests. Various functional Testing Accessories are easy and quick to replace.
1. Product Functions
The HLE-CF series D-type high-capacity floor-standing double-column gantry-type universal testing machine for composite materials is mainly used for testing the mechanical properties of polymer-based composites, metal-based composites, and ceramic-based composites at high and low temperatures. The equipment adopts a modular platform configuration; the main unit can be equipped with different fixtures, environmental simulation accessories, and deformation measurement accessories to complete various types of tests. Various functional testing accessories are easy and quick to replace.

2. Meets the following standards:
2.1. GB/T 2611 General Technical Requirements for Testing Machines
2.2. GB/T 16491 Electronic Universal Testing Machine
2.3. JJG 139 Tensile, Compressive and Universal Testing Machines
2.4. JJG 475 Electronic Universal Testing Machine
2.5. GB/T 1447-2005 Test Method for Tensile Properties of Fiber Reinforced Plastics
2.6. ASTM D3039/D3039M Standard Test Method for Tensile Properties of Polymer Matrix Composite Materials
2.7. ASTM D6641/D6641M Standard Test Method for Compressive Properties of Polymer Matrix Composite Materials Using a Combined Loading Compression (CLC) Test Fixture

3. Main Technical Specifications
3.1 Maximum Test Force: 100kN/300kN
3.2 Testing Machine Class: 0.5
3.3 Effective Measurement Range: 0.4%～100%F.S
3.4 Maximum Beam Movement Distance (including full-temperature hydraulic clamp): 400mm (customizable)
3.5 Test Force Indication Accuracy: ±0.5%
3.6 Displacement Rate Control Adjustment Range: 0.005—500mm/min (300mm/min)
3.7 Test Width: 600mm

3.8 Main Unit Dimensions: Approximately 1270mm x 715mm x 3300mm
