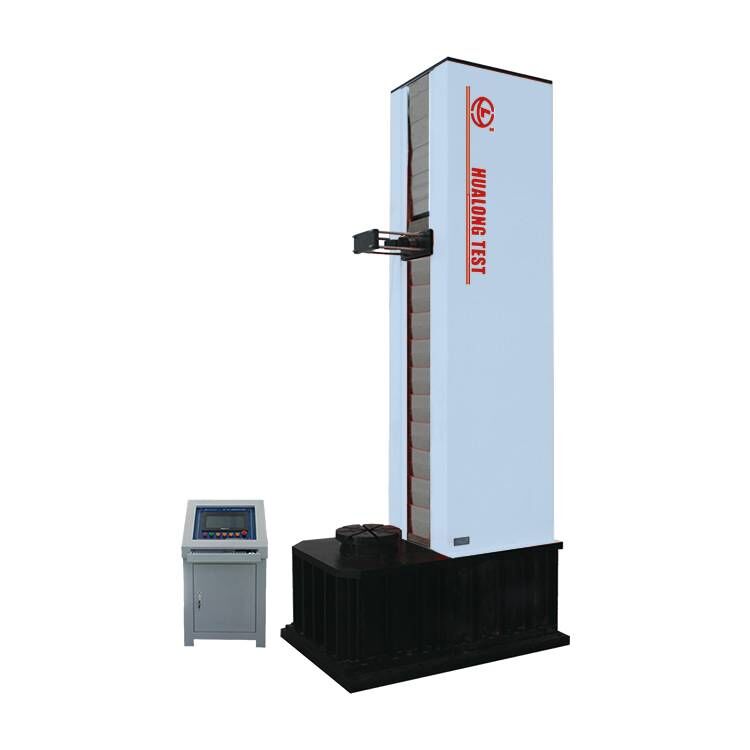

Insulator bending and twisting compound testing machine

Application:

WWN series of insulator bending and torsion testing machine for tensile, compression, bending, shearing, peeling, tearing, low cycle and other tests, analysis and quality control of metal, non-metal materials and finished products, mainly applicable to Various types of insulator bending and torsion performance tests.

Main Specifications:

Load capacity	500KN
Load resolution	1/200,000
Load accuracy	±1%
Beam displacement speed	0.5 ~ 80mm / min
Temperature range	-40 ° C - 100 ° C
Temperature accuracy	±0.5 °C
Mainframe dimensions	1500×1100×6000mm
Host weight	15000kg
Power	AC380V, 5.5KW
High and low temperature box inner box size	3500 × 600 × 600 mm (length × width × height)
High and low temperature box outer box size	3800 × 850 × 850 mm (length × width × height)
